RAYHIL RAD25 9W 2.5" Recessed LED Downlight Selectable CCT

RAYHIL RAD25 9W 2.5" Recessed LED Downlight Selectable CCT

Regular price $69.99
Regular price $74.99 Sale price $69.99
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

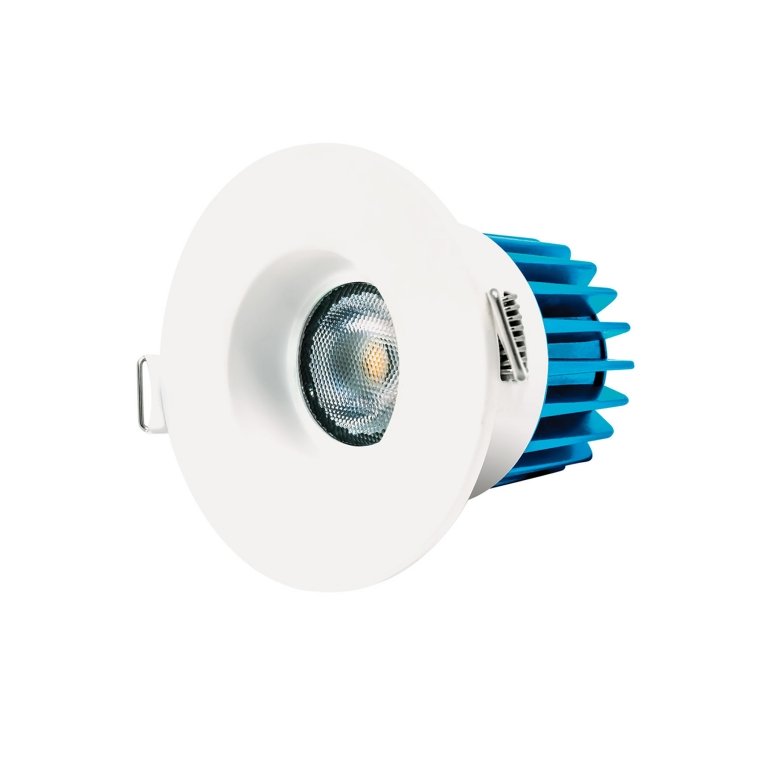

SONIC 2.5" 9W RECESSED LED DOWNLIGHT

The Rayhil Sonic Downlights boast an exceptional 90+ CRI light while simultaneously reaching substantial lumen counts on each model. The sleek design of the Downlights are just as practical as they are appealing. Air-tight and wet location approved, as well as Type IC rated – approved for direct contact with insulation. They are also equipped with an Isolated driver inside a junction box. Available in multiple color temperatures, trim colors and shapes, as well as sizes.

Other Color Trims Sold Here

  • Air-tight and wet location approved
  • Type IC rated – approved for direct contact with insulation
  • Downlight housing is not required even for insulated ceilings
  • Spring loaded mounting clips
  • Quick connect wire allows for efficient installation
  • Isolated driver inside junction box
  • New construction plate available (NCH250*)
  • Optional Emergency Backup
  • 5 year warranty
*Click Here for Construction Plates

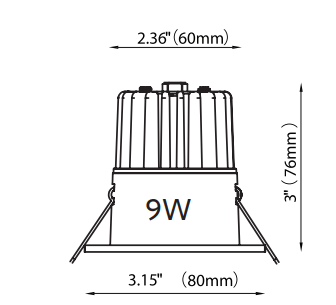

    Square Dimensions
    Length (in.) 3.15"
    Width (in.) 3.15"
    Height (in.) 3.00"
    Round Dimensions
    Circ. (in.) 3.15"
    Height (in.) 3.00"


    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Wattage 9W
    Lumen 800lm
    Efficacy(LPW) >82 lm/W
    Color Temp 27K, 30K, 35K, 40K, 50K
    CRI >90
    Dimming Triac/ 0-10V
    Lamp Life 50,000hr
    Environment IP65 Wet Location
    Cutout 2.36"
