Rayhil RAD35-TMS-15 3.5" 15W Trimless Downlight Selectable CCT
Rayhil RAD35-TMS-15 3.5" 15W Trimless Downlight Selectable CCT
Regular price
$83.99
Regular price
Sale price
$83.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
RAD35-TMS-15 3.5" 15W Trimless Downlight
The RAD35-TMS-15 3.5" 15W Trimless Downlight from Rayhil is a versatile lighting solution ideal for various environments. With selectable CCT options ranging from 2700K to 5000K, this downlight delivers high-quality illumination with a 90+ CRI rating. It features an airtight and wet location-approved design and is Type IC rated, making it safe for direct insulation contact. The efficient installation is ensured by spring-loaded mounting clips and a quick connect wire system, and it includes an isolated driver within a junction box.
- Wattage: 15W (1250LM)
- Beam Angles: 15°, 24°, 36°, 50°
- Input Voltage: 120-277V
- Trim Finish: Clear, White, Frosted
- Optional Emergency Backup Available
- 5 Year Warranty
Spec Sheet
Spec Sheet
Installation Instructions
Sell Sheet
Info
| Wattage | 15W |
| Lumens | 1250LM |
| Input Voltage | 120-277V |
| CCT | 5CCT Select |
| Efficacy | 82LM/W |
| CRI | >90 |
| Beam Angle | 36° (15°/24°/50° can be purchased separately) |

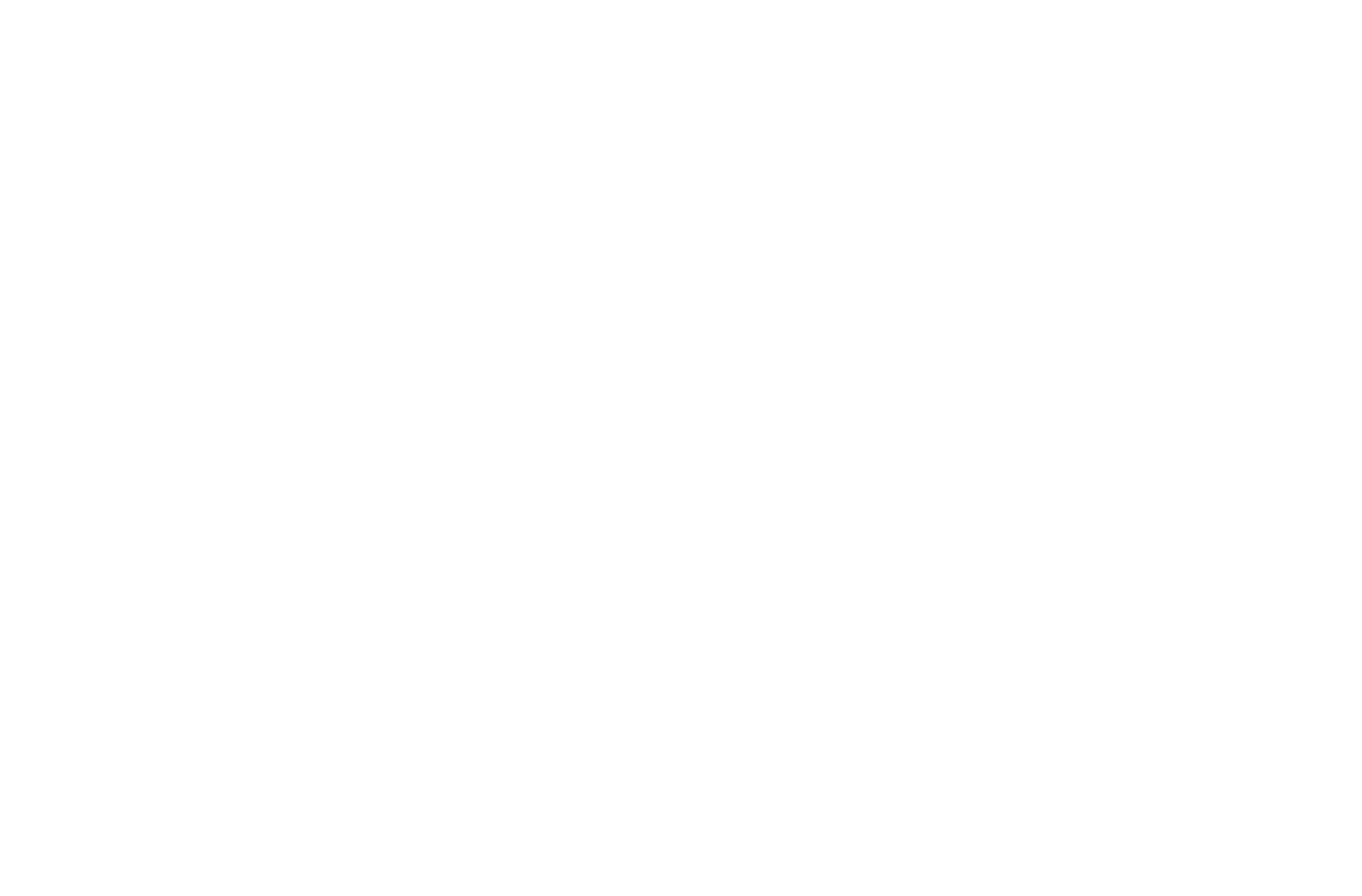

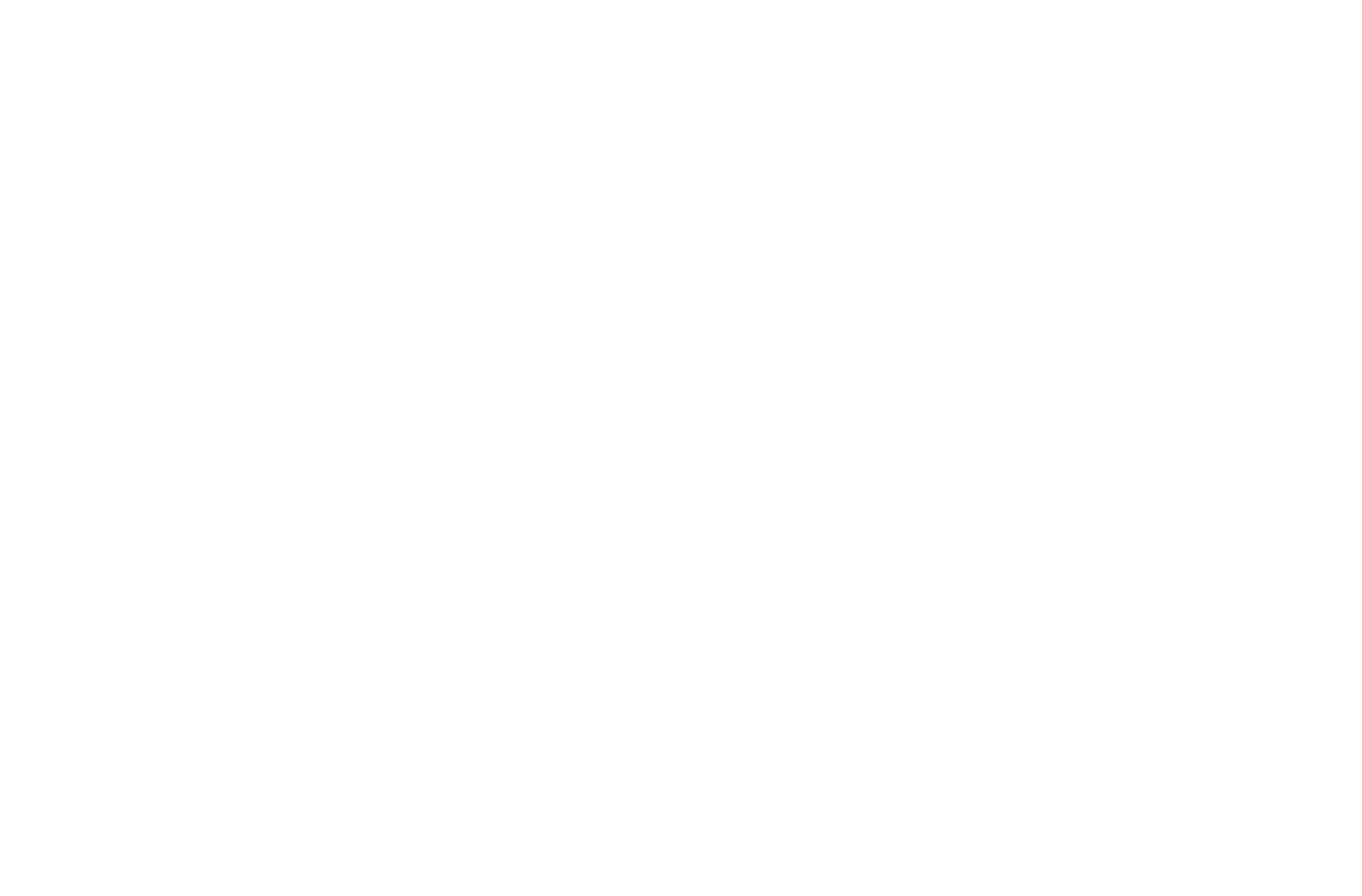

| Cut Out | 3.74” |
Additional Info
| Dimming | 5% - 100% Triac & 0-10V |
| Environment | IP65 Wet Location |
| Material | Aluminum Body with Anodized Heat Sink |
| Operating Temp | -4°F - 104°F |
| Lamp Life | 50,000 hrs |
| Warranty | 5 Year Warranty |
| Air-tight | Air-tight and wet location approved |
| IC rated | Type IC rated - approved for direct contact with insulation |
