Rayhil VOR25-4H Vortex 2.5" 9W 4-Head Recessed LED Downlight Selectable CCT
Rayhil VOR25-4H Vortex 2.5" 9W 4-Head Recessed LED Downlight Selectable CCT
Regular price
$403.99
Regular price
Sale price
$403.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

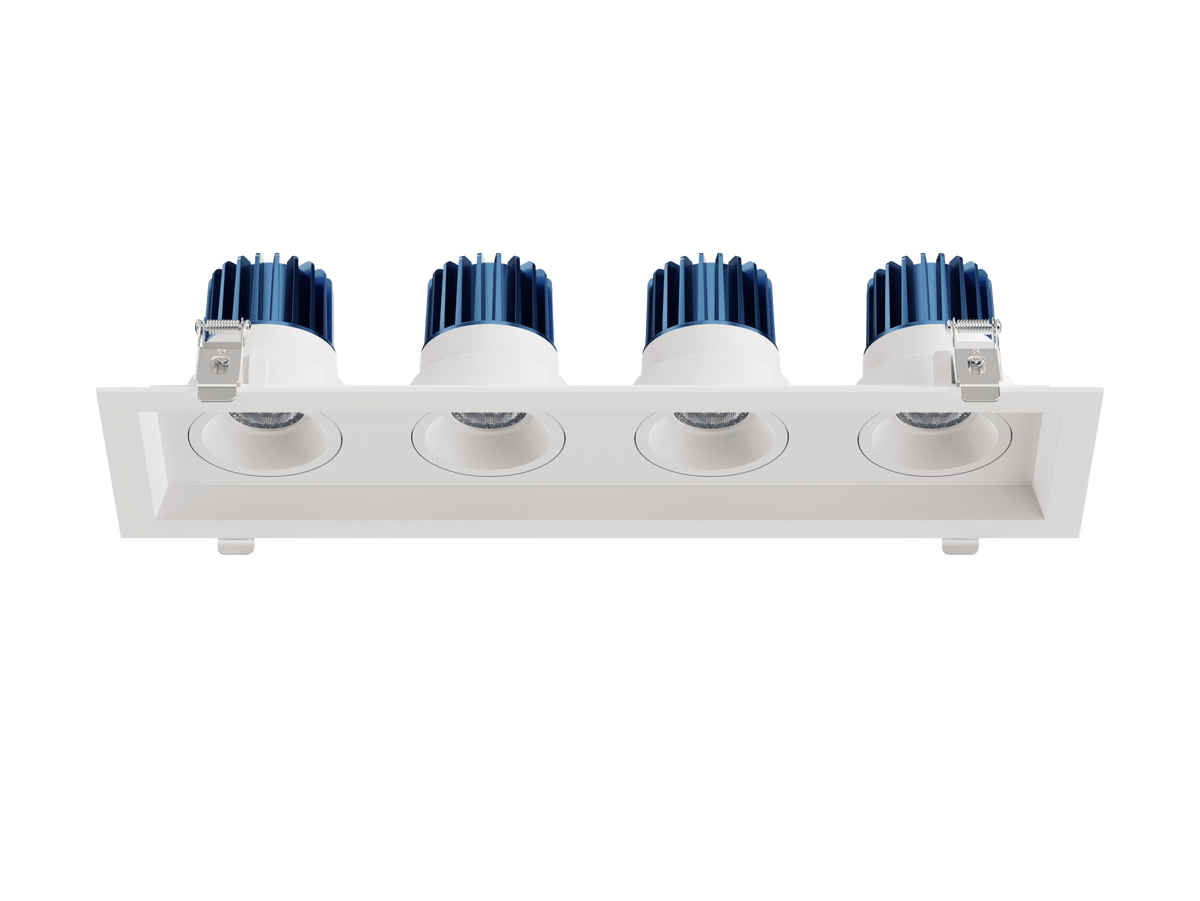

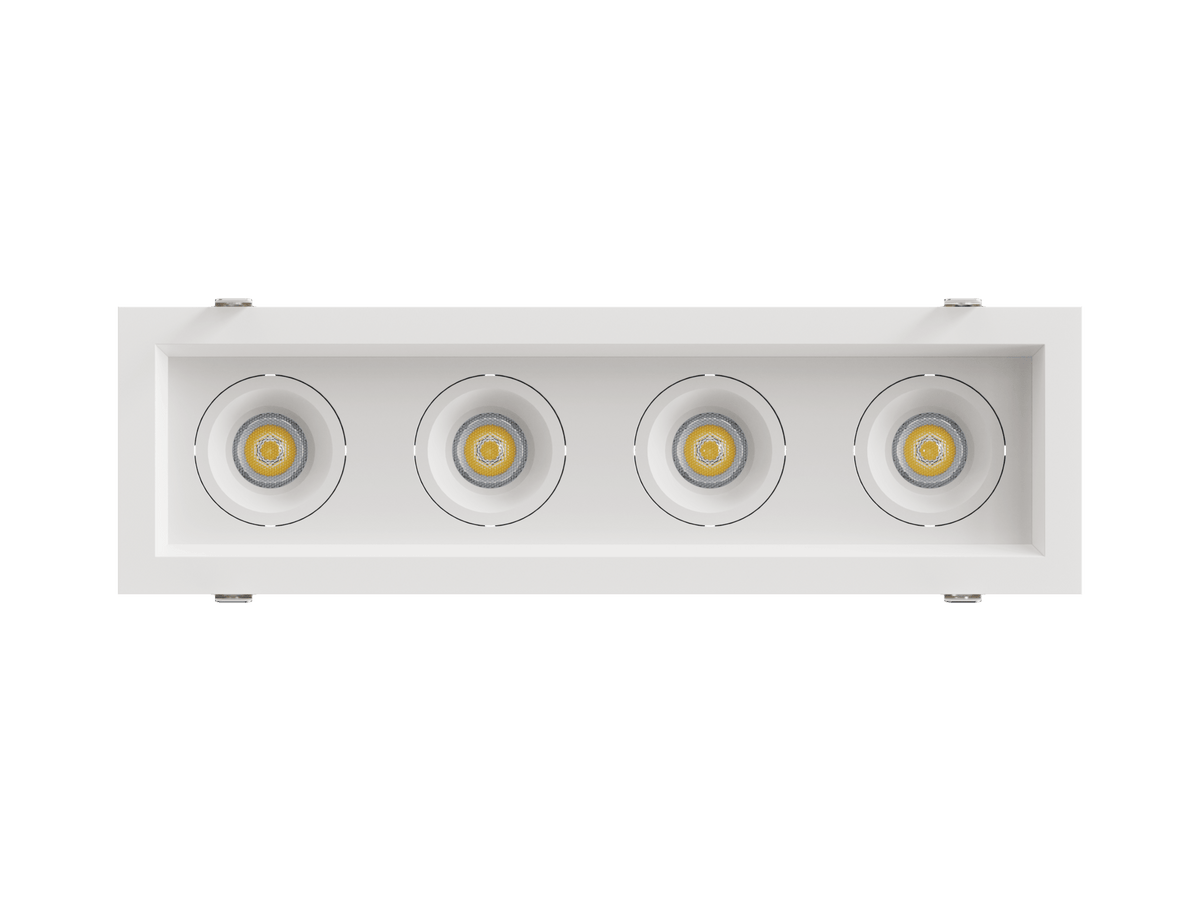

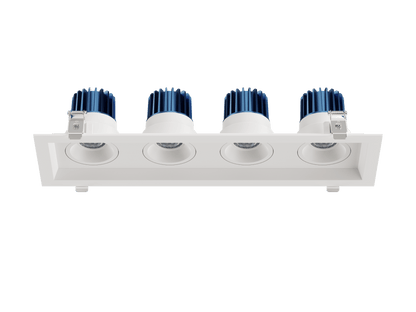

Vortex 2.5" 4-Head Recessed LED Downlight
The Rayhil Vortex VOR25-4H is a 2.5" 4-head recessed LED downlight in a single rectangular plate. It delivers 800 lumens at 9W with 90+ CRI and selectable CCT (a Dim-to-Warm 1800K-2200K version is also available). It is air-tight, wet location approved (IP65) and Type IC rated for direct contact with insulation, with an isolated driver in a junction box and quick connect wiring for fast installation. No separate housing is needed in insulated ceilings.
- Wattage: 9W (800LM)
- Beam Angles: 24°, 38°, 50°
- Lens Options: Hex Louver, Frosted, Solite
- Input Voltage: 120-277V
- Finish: White Plate/White Trim, White Plate/Black Trim, Black Plate/White Trim, Black Plate/Black Trim
- Optional Emergency Backup Available (functional with 1 head only)
- 5 Year Warranty
Spec Sheets
Spec Sheet
Info
| Model | VOR25-4H |
| Configuration | 4-Head |
| Wattage | 9W |
| Lumens | 800LM |
| Input Voltage | 120-277V |
| CCT | Selectable CCT (1800K, 2200K, 2700K, 3000K, 3500K, 4000K, 5000K) or Dim-to-Warm (1800K-2200K) |
| Efficacy | >82LM/W |
| CRI | >90 |
| Beam Angle | 24°/38°/50° |
| Cut Out | 3.35" x 14" |
Additional Info
| Dimming | 5% - 100% Triac & 0-10V |
| Environment | IP65 Wet Location |
| Material | Aluminum Body with Anodized Heat Sink |
| Operating Temp | -4°F - 104°F |
| Lamp Life | 50,000 hrs |
| Warranty | 5 Year Warranty |
| Air-tight | Air-tight and wet location approved |
| IC rated | Type IC rated - approved for direct contact with insulation |
| Emergency Backup | Optional (RAD25/35-EM, 90 minute run time, functional with 1 head only) |
