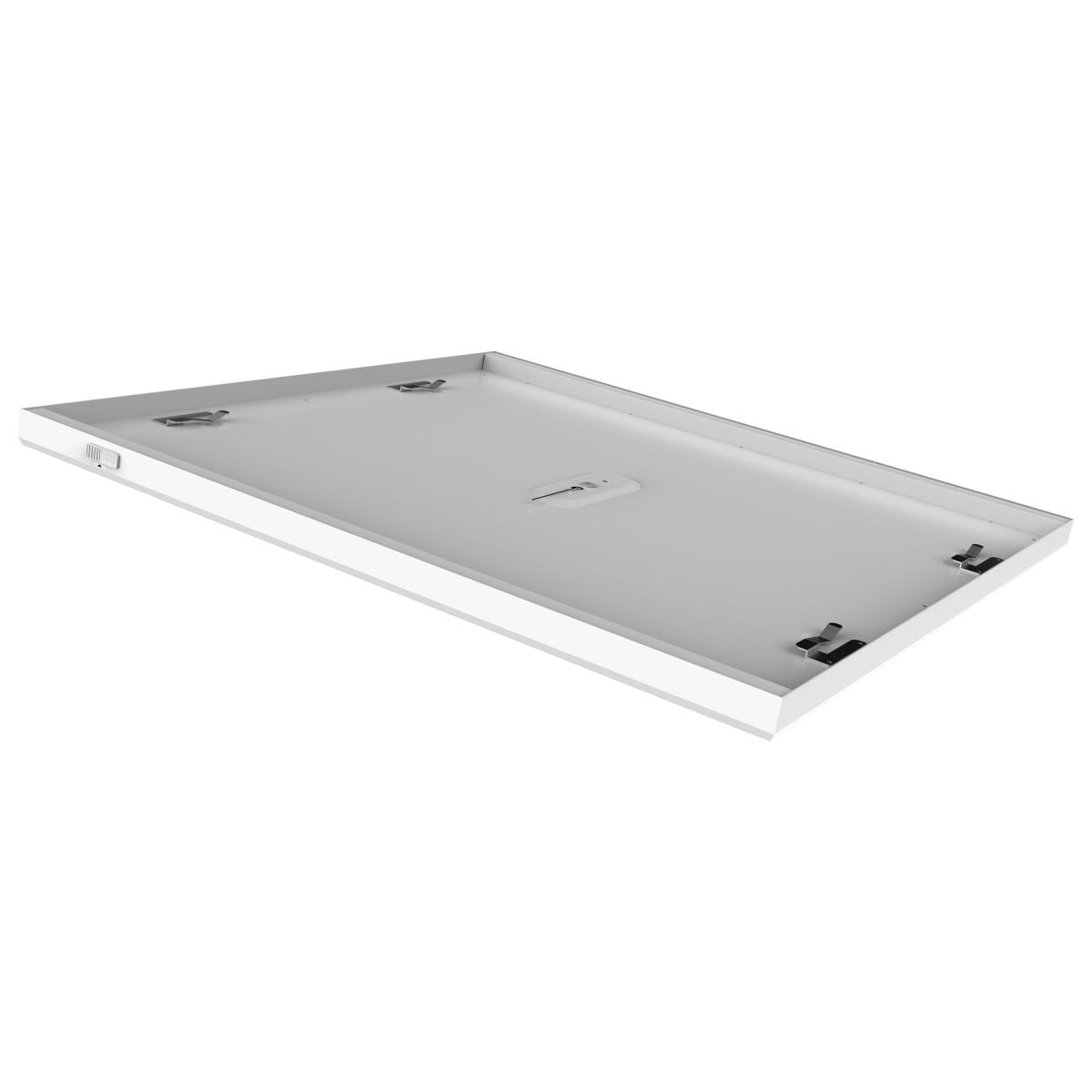

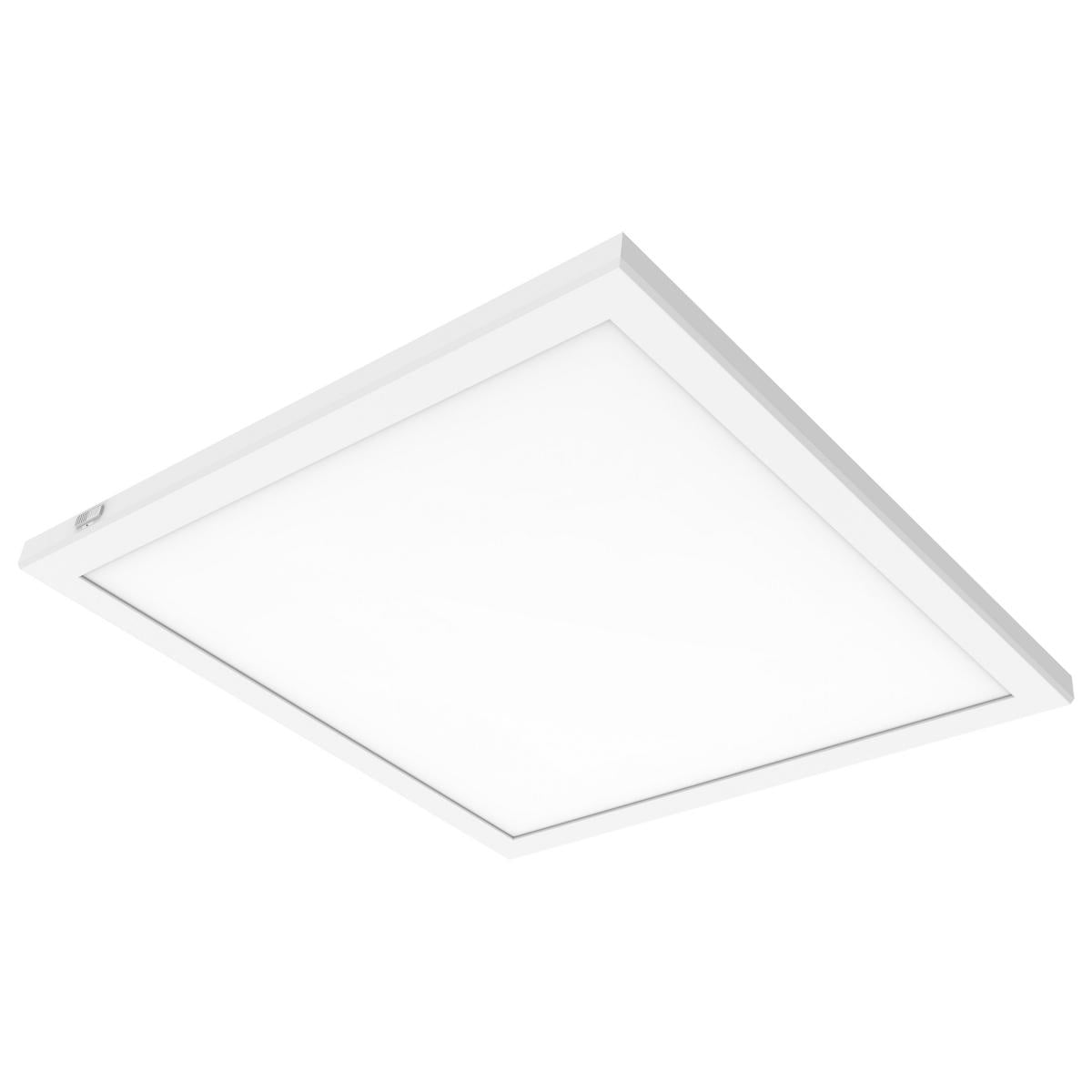

SATCO 62-1774 47W LED 2FT X 2FT Surface Mount Selectable CCT
SATCO 62-1774 47W LED 2FT X 2FT Surface Mount Selectable CCT
Regular price
$207.99
Regular price
Sale price
$207.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Flush Mount 47W 1X4 Selectable CCT 120-277V
| Status | Active |
| Fixture Type | Surface Mount |
| Finish | White |
| Wattage | 47W |
| Lumen Output | 3600L-4050L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Wattage | 47W |
| Lumen Output | 3600L-4050L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 90 |
| Voltage | 120V/277V |
| Beam Angle | 110 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 120V only |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 8.65 |
| Material | Die-cast Aluminum |
Dimensions
| Height (in.) | 1.1 |
| Width (in.) | 23.7 |
| Length (in.) | 23.7 |
Additional Info
| Safety Listing | cETLus - Listed |
| Location Rating | Damp |
| Energy Star | Yes |
| ES Unique ID | ESID-2405323 |
| DLC Approved | No |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | No |
| SDS Sheet | LED Fixture |
| Additional Information | UGR - 20.9; Hi pot - DC-1550V; Edge-lit - Yes |
| Installation Notes | Compatible with 3" & 4" J-box and pancake J-box |
| Warranty | 5 Year Limited - Fixtures |
