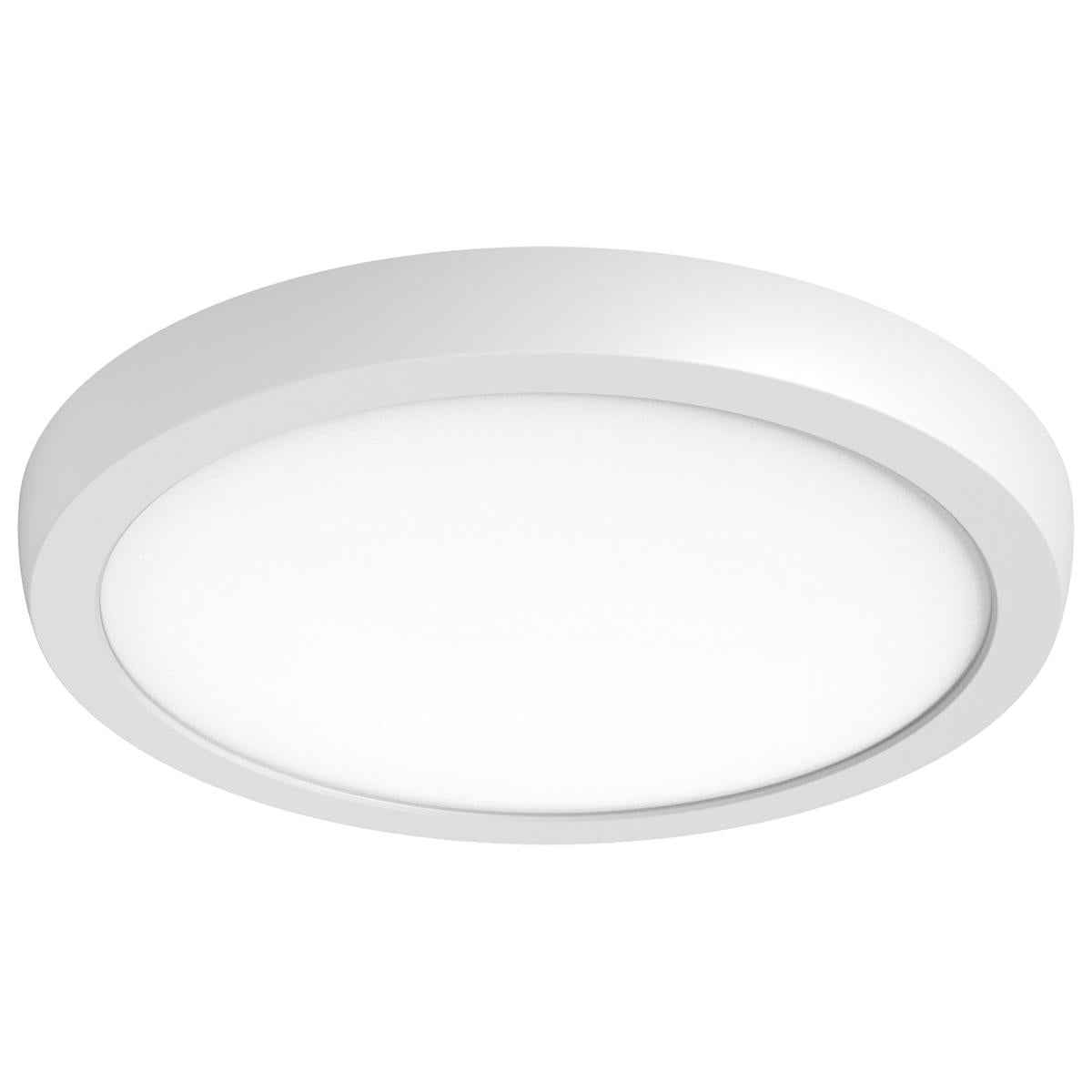

SATCO 62-1776 19W 12" Round LED Surface Mount Selectable CCT
SATCO 62-1776 19W 12" Round LED Surface Mount Selectable CCT
Regular price
$113.99
Regular price
Sale price
$113.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
19W 12" Round Surface Mount Selectable CCT
Blink Pro - 19.5 Watt; 12 in.; Surface Mount LED; CCT Selectable; 90 CRI; White Finish;
| Status | Active |
| Fixture Type | Surface mount |
| Finish | White |
| Wattage | 19.5W |
| Lumen Output | 1450L-1520L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Wattage | 19.5W |
| Lumen Output | 1450L-1520L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 90 |
| Voltage | 120V/277V |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 120V only |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2.5KV |
| Weight (lb.) | 2.37 |
| Material | Die-Cast Aluminum |
Dimensions
| Height (in.) | 1.06 |
| Width (in.) | 12.00 |
Additional Info
| Safety Listing | cETLus - Listed |
| Location Rating | Damp |
| Energy Star | Yes |
| ES Unique ID | ESID-2406079 |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8 Listed |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | No |
| SDS Sheet | LED Fixture |
Additional Information
| Additional Information | UGR - 22.2; Hi pot - DC-1550V; Edge-lit - Yes |

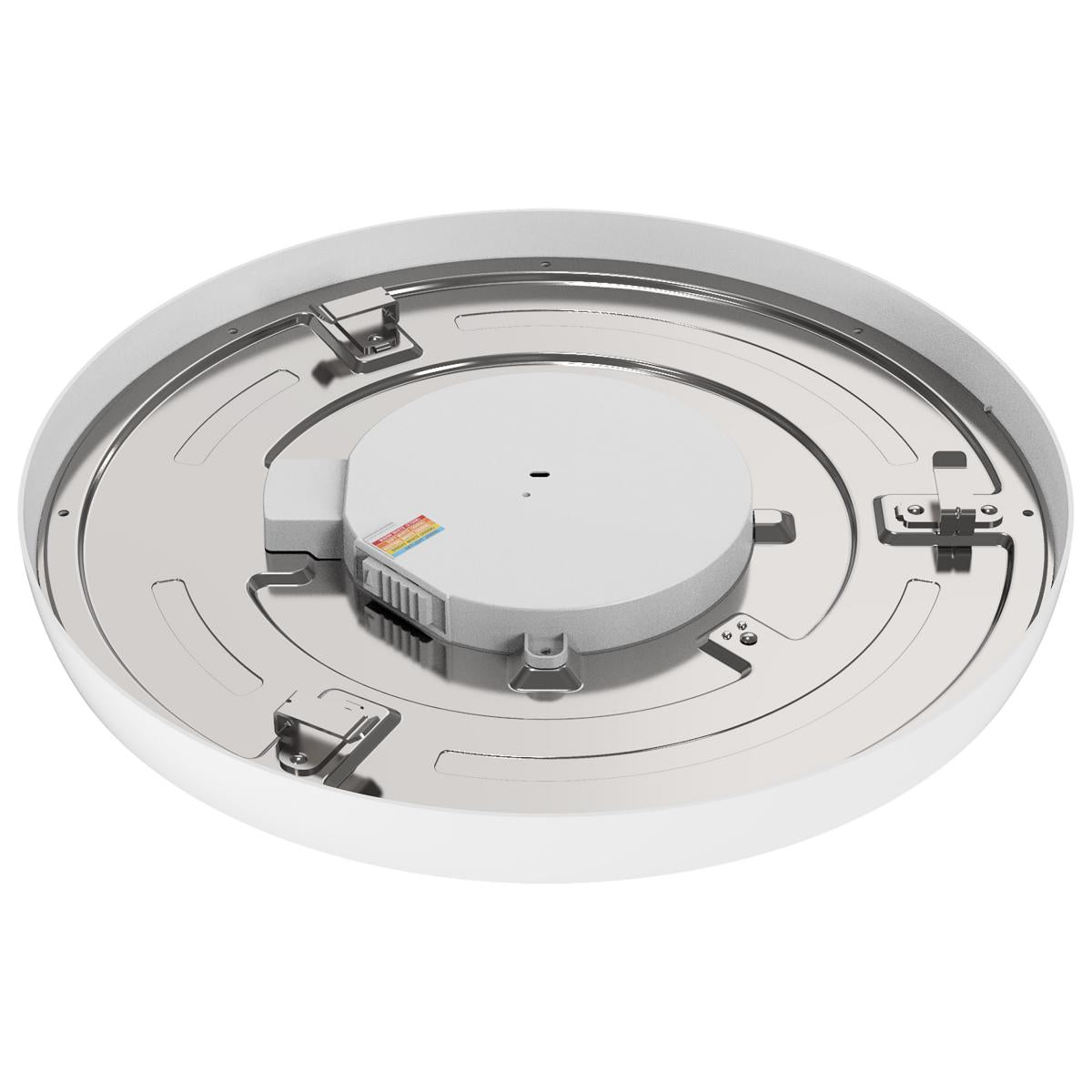

| Installation Notes | Compatible with 3" & 4" J-box and pancake J-box |
| Warranty | 5 Year Limited - Fixtures |
