SATCO 65-581 40W LED 2FT X 2FT Backlit Flat Panel Selectable CCT 100-347V
SATCO 65-581 40W LED 2FT X 2FT Backlit Flat Panel Selectable CCT 100-347V
Regular price
$60.99
Regular price
Sale price
$60.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

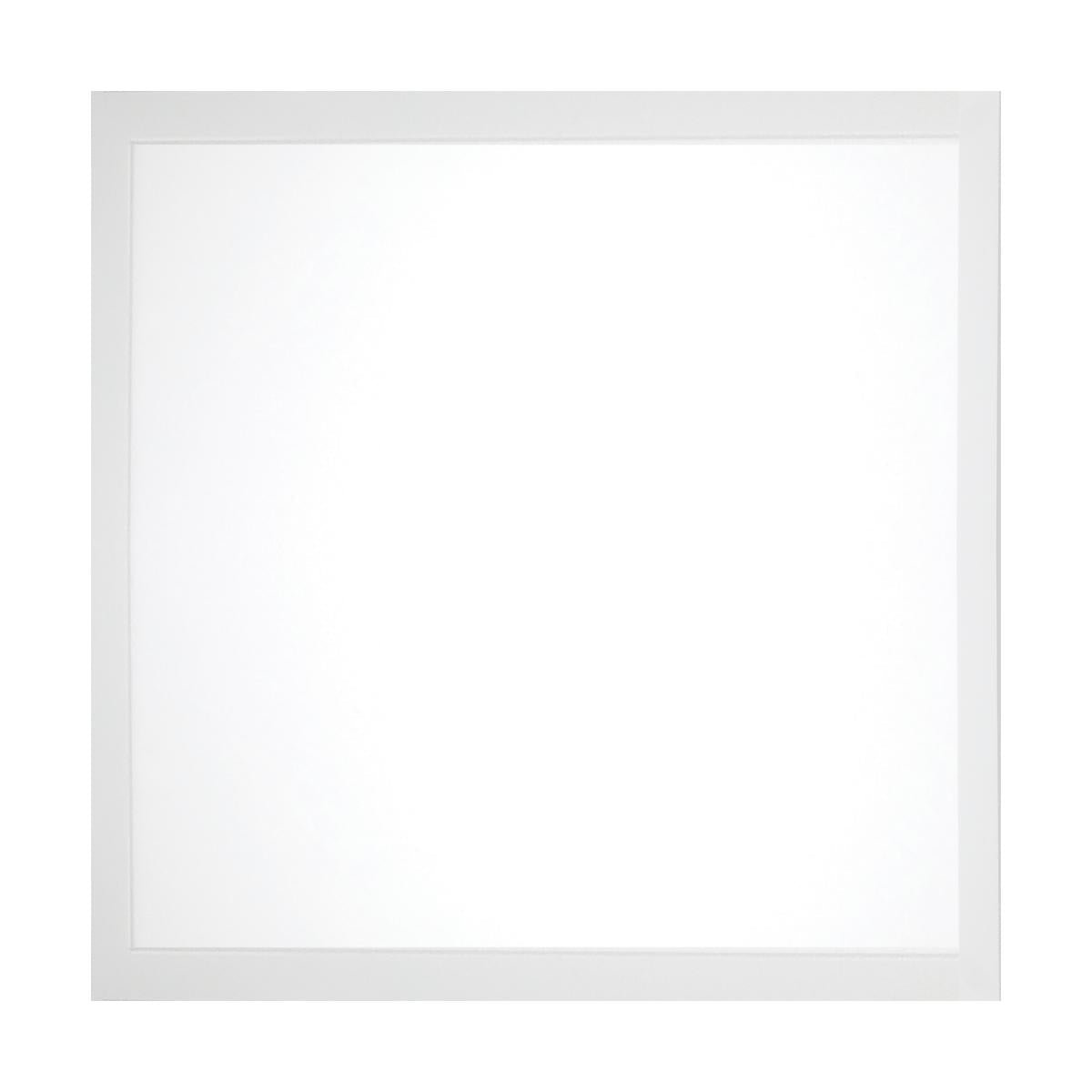

2X2 LED BACKLIT FLAT PANEL
LED Backlit Flat Panel; 40 Watt; 2 ft. x 2 ft.; Selectable CCT; 100-347 Volt
Status | Active |
Fixture Type | Backlit Flat Panel |
Finish | White |
Wattage | 40W |
Lumen Output | 4400L-4600L |
CCT (Kelvin) | 3500K/4000K/5000K |
IP Rating | IP20 |
Indoor or Outdoor Fixture | Indoor |
4FT Suspension Kit Sold Separately
Spec Sheets
Spec Sheet
Installation Instructions
Info
Technology | LED |
Wattage | 40W |
Lumen Output | 4400L-4600L |
CCT (Kelvin) | 3500K/4000K/5000K |
Color Temperature | Warm to Cool White |
CRI | 80+ |
Voltage | 100V-347V |
Beam Angle | 120 |
Rated Hours | 50000 |
Operating Temperature | -17C (+1.4F) to a maximum of +45C (+113F) |
Dimmable | Yes-Dimmable |
Dimming Note | 0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
Photocell | No Photocell |
Lens Material | Poly methyl methacrylate (PMMA) |
Weight (lb.) | 4.85 |
IP Rating | IP20 |
Material | Aluminum / Steel |
Dimensions
Height (in.) | 1.50 |
Width (in.) | 23.75 |
Length (in.) | 23.75 |
Additional Info
Safety Listing | cETLus |
Location Rating | Damp |
UL Application | Ceiling |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLGZ8OJ3A5EO |
CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
California Status | Lawful for sale in California |
California Prop 65 |
Lead
|
RoHS Compliant | Yes |
FCC Compliant | Yes |
Flicker Free | Yes |
Additional Information
Warranty | 5 Year Limited - Fixtures |
