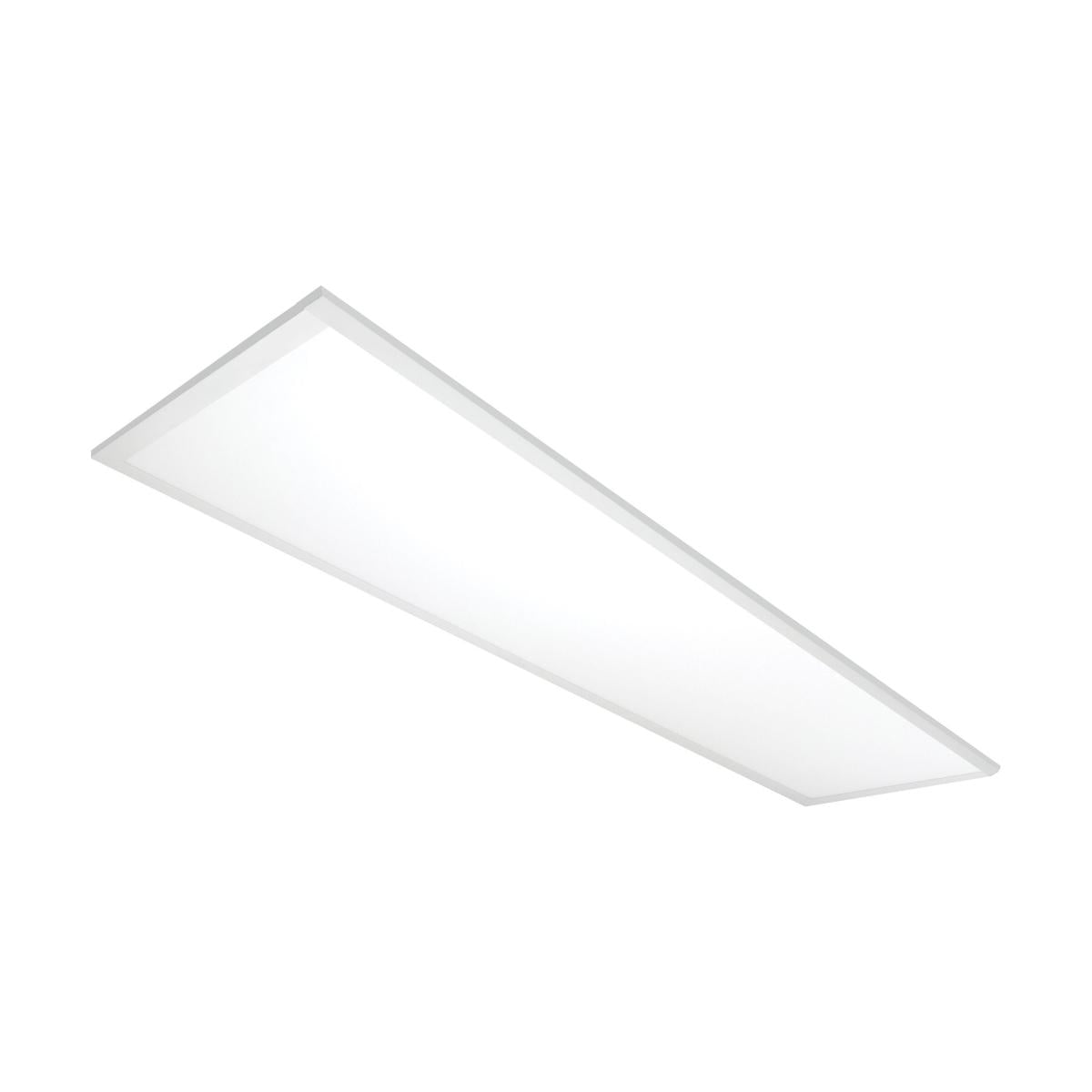

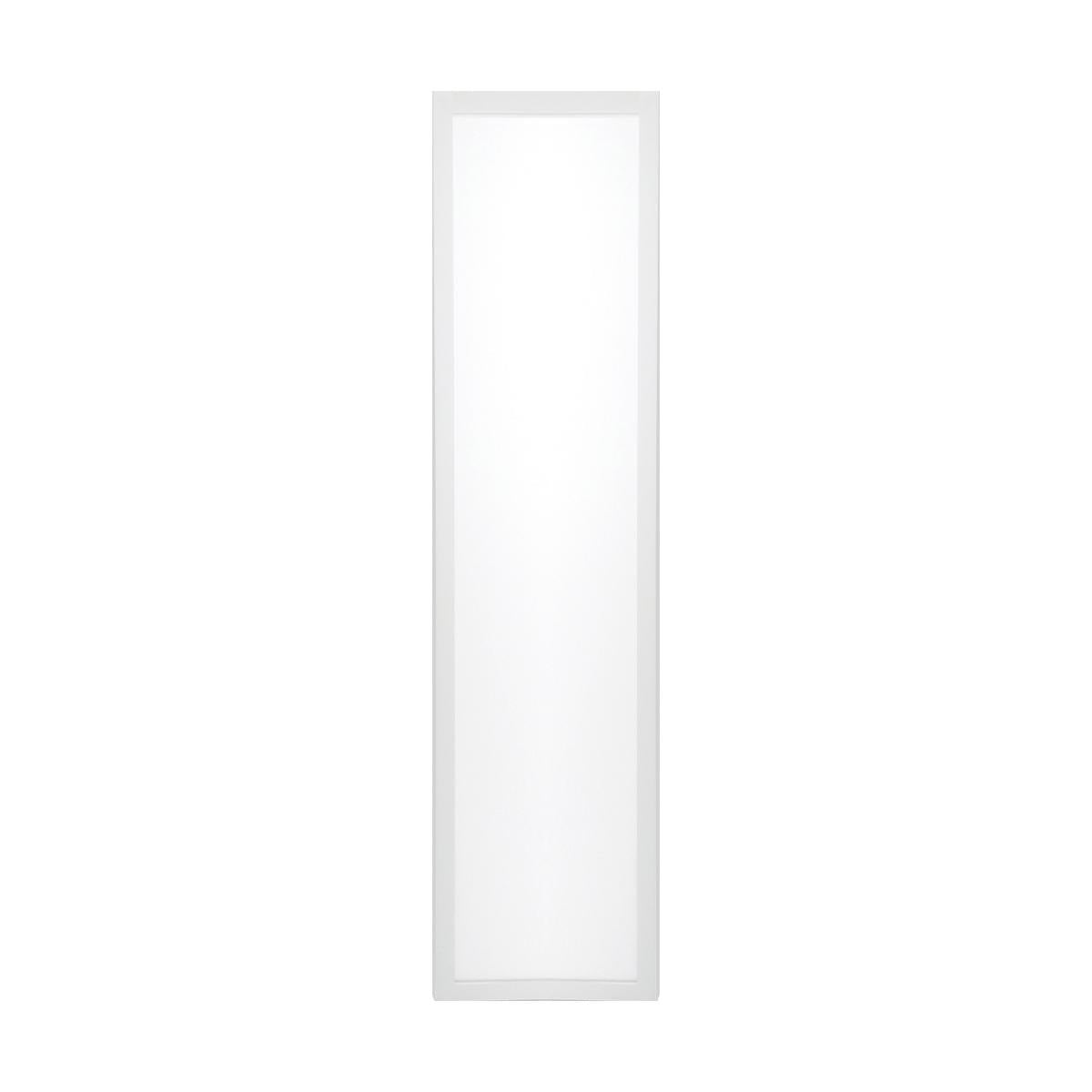

SATCO 65-583 40W LED 1FT X 4FT Backlit Flat Panel Selectable CCT 100-347V
SATCO 65-583 40W LED 1FT X 4FT Backlit Flat Panel Selectable CCT 100-347V
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1X4 LED BACKLIT FLAT PANEL
LED Backlit Flat Panel; 40 Watt; 1 ft. x 4 ft.; Selectable CCT; 100-347 Volt
| Status | Active |
| Fixture Type | Backlit Flat Panel |
| Finish | White |
| Wattage | 40W |
| Lumen Output | 4400L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
4FT Suspension Kit Sold Separately
Spec Sheets
Spec Sheet
| Technology | LED |
| Wattage | 40W |
| Lumen Output | 4400L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80+ |
| Voltage | 100V-347V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -17C (+1.4F) to a maximum of +45C (+113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| Photocell | No Photocell |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Weight (lb.) | 4.98 |
| IP Rating | IP20 |
| Material | Aluminum / Steel |

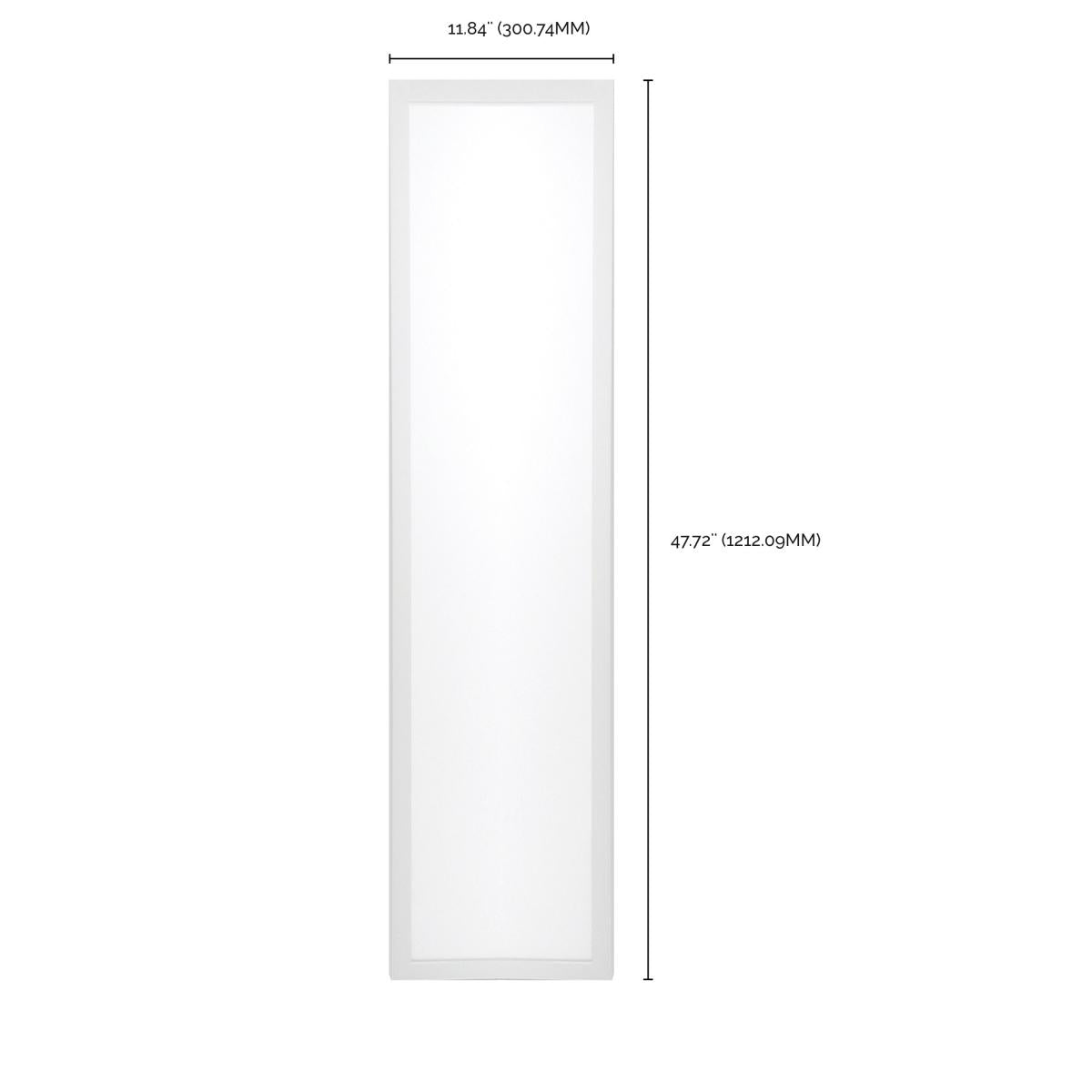

Dimensions
| Height (in.) | 1.50 |
| Width (in.) | 11.84 |
| Length (in.) | 47.72 |
Additional Info
| Safety Listing | cETLus |
| Location Rating | Damp |
| UL Application | Ceiling |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLOANBILZL75 |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Status | Lawful for sale in California |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
