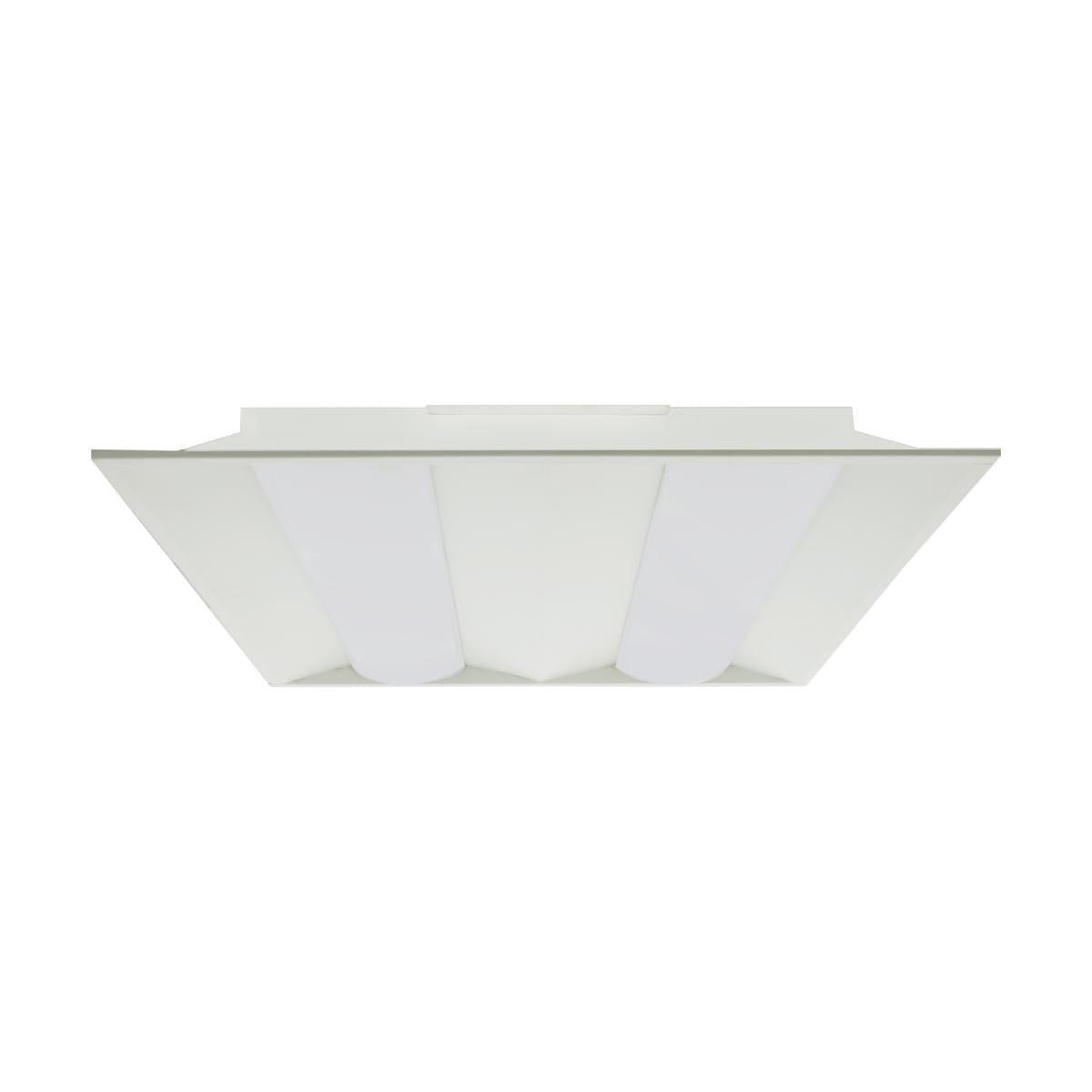

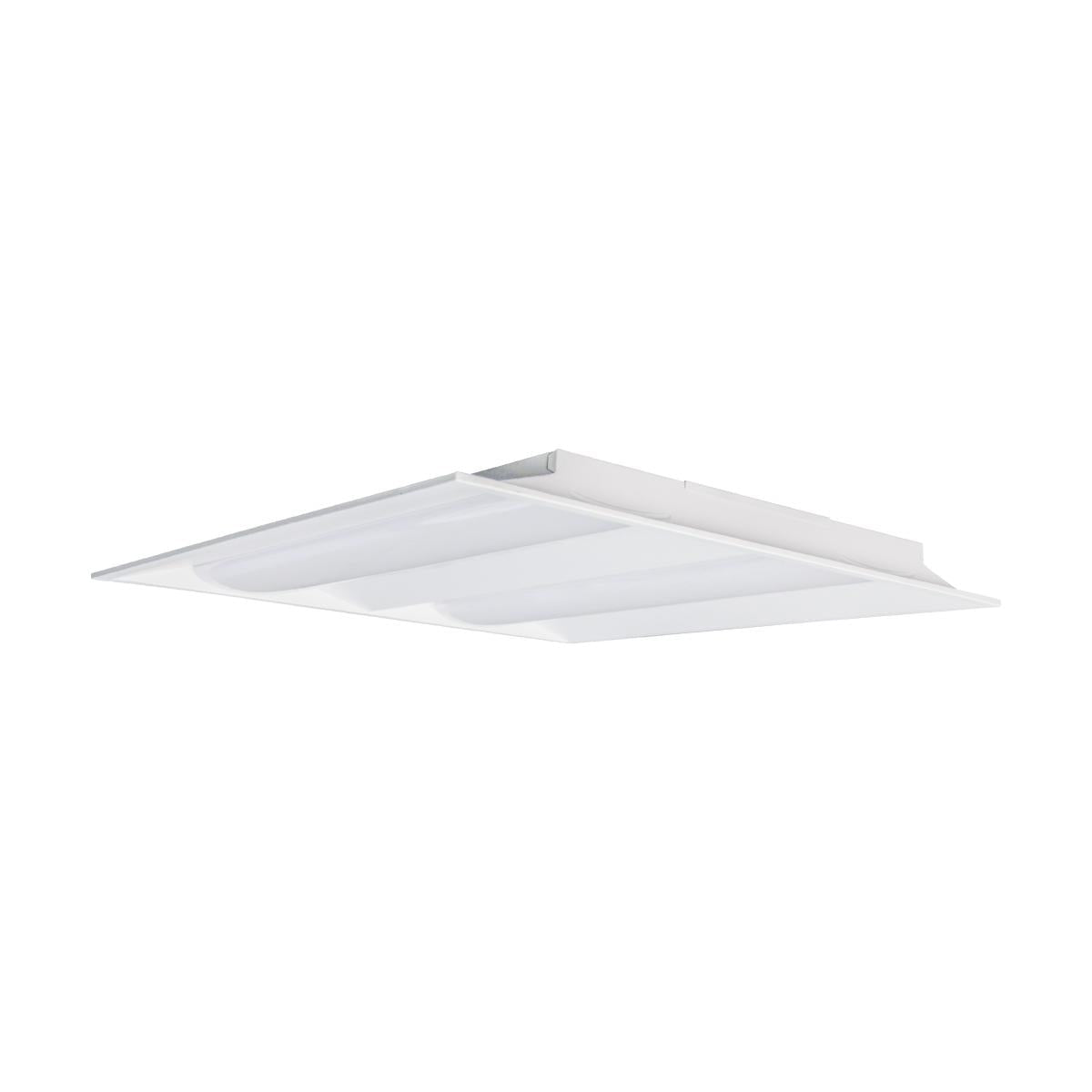

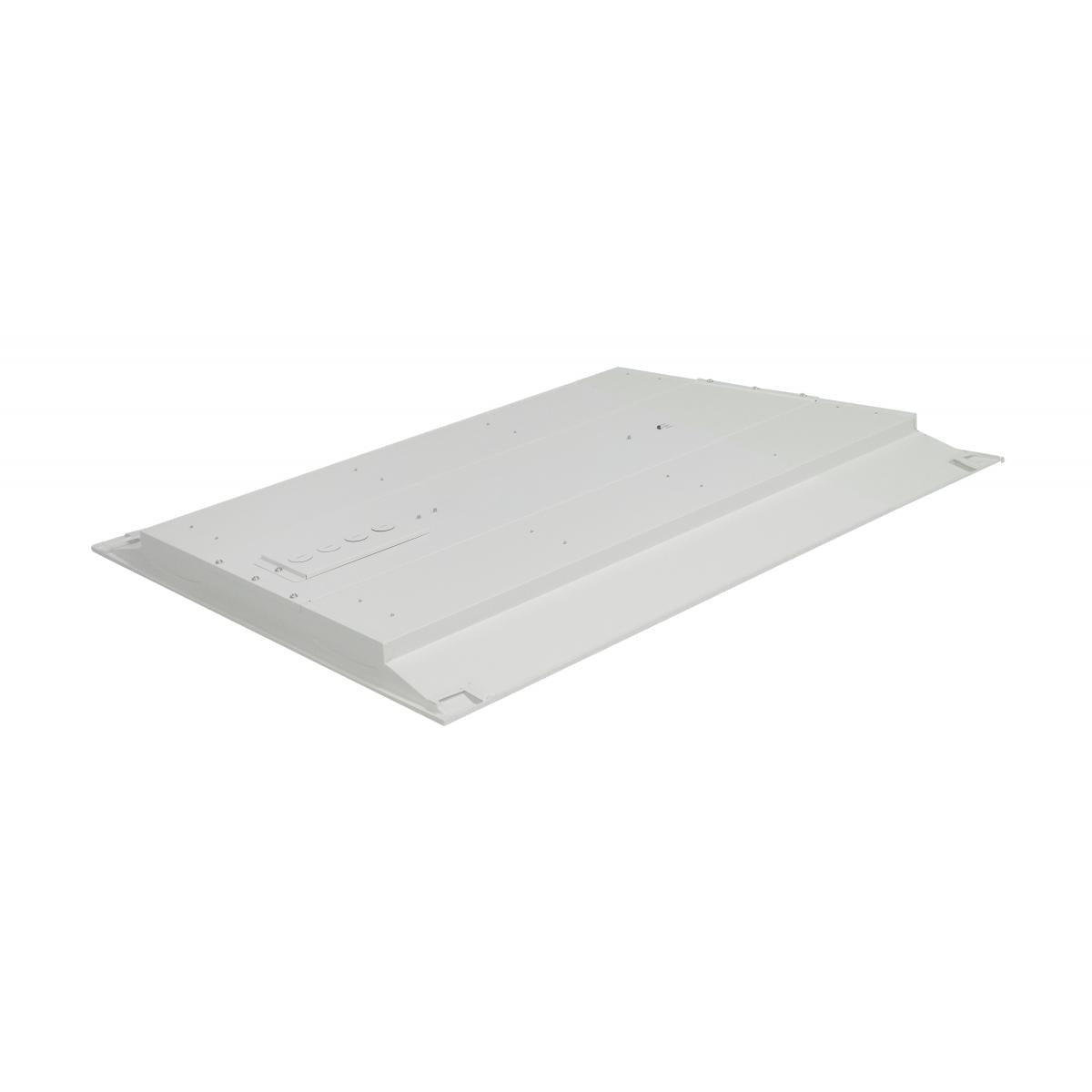

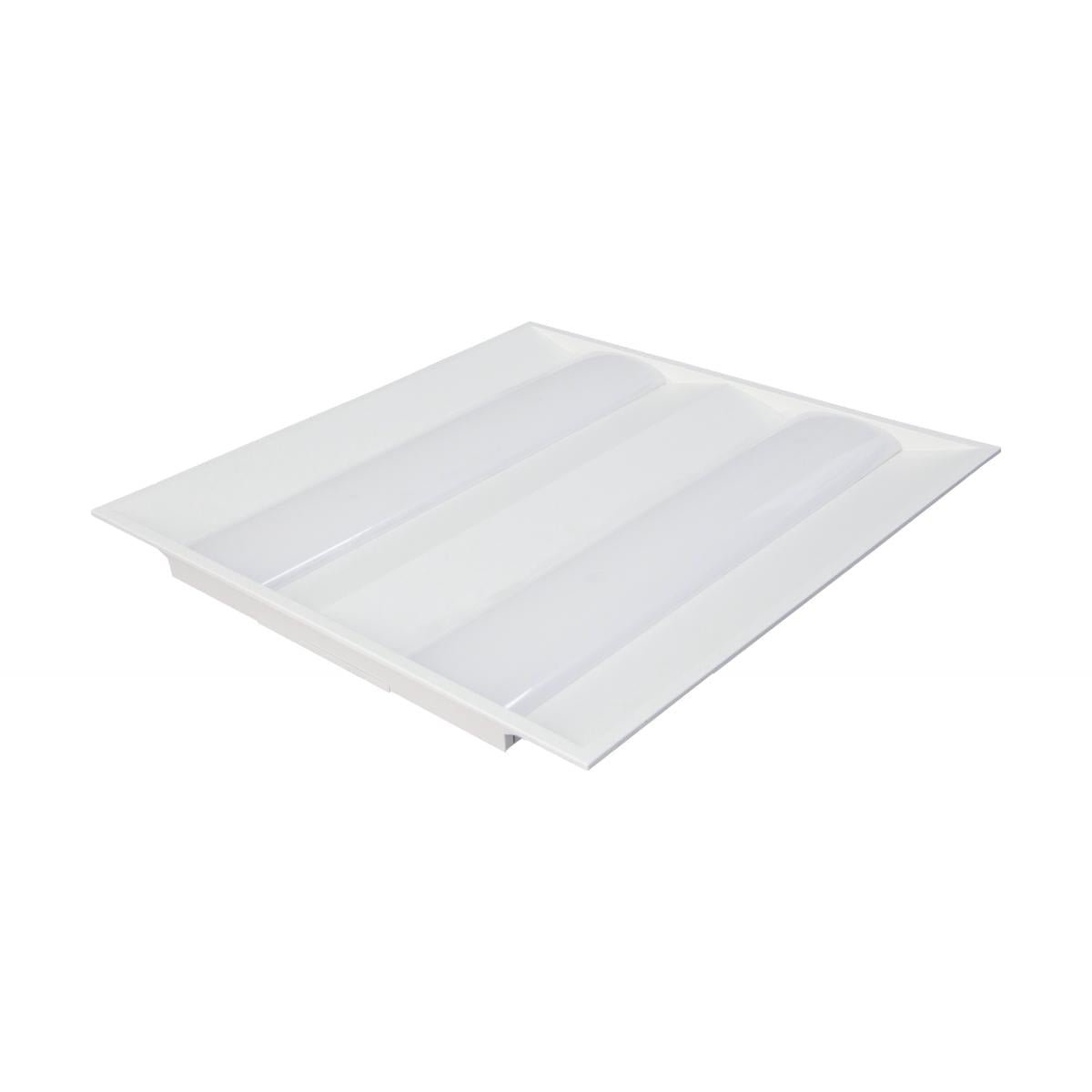

SATCO 65-694 LED 2FT X 2FT Double Basket Troffer Selectable CCT
SATCO 65-694 LED 2FT X 2FT Double Basket Troffer Selectable CCT
Regular price
$111.99
Regular price
Sale price
$111.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2X2 DOUBLE BASKET TROFFER
2X2 Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V
| Status | Active |
| Fixture Type | Double Basket Troffer |
| Finish | White |
| Wattage | 30W/35W/40W |
| Lumen Output | 3300L-4400L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Wattage | 30W/35W/40W |
| Lumen Output | 3300L-4400L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 100V-277V |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2KV |
| Weight (lb.) | 6.50 |
| IP Rating | IP20 |
| Material | Steel |
Dimensions
| Height (in.) | 1.88 |
| Width (in.) | 23.74 |
| Length (in.) | 23.74 |
Additional Info
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL0L0GTR5WW5 |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Status | Lawful for sale in California |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
