Satco

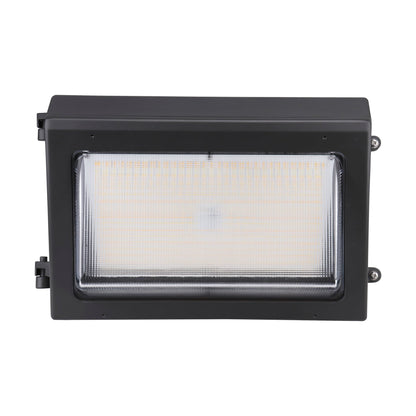

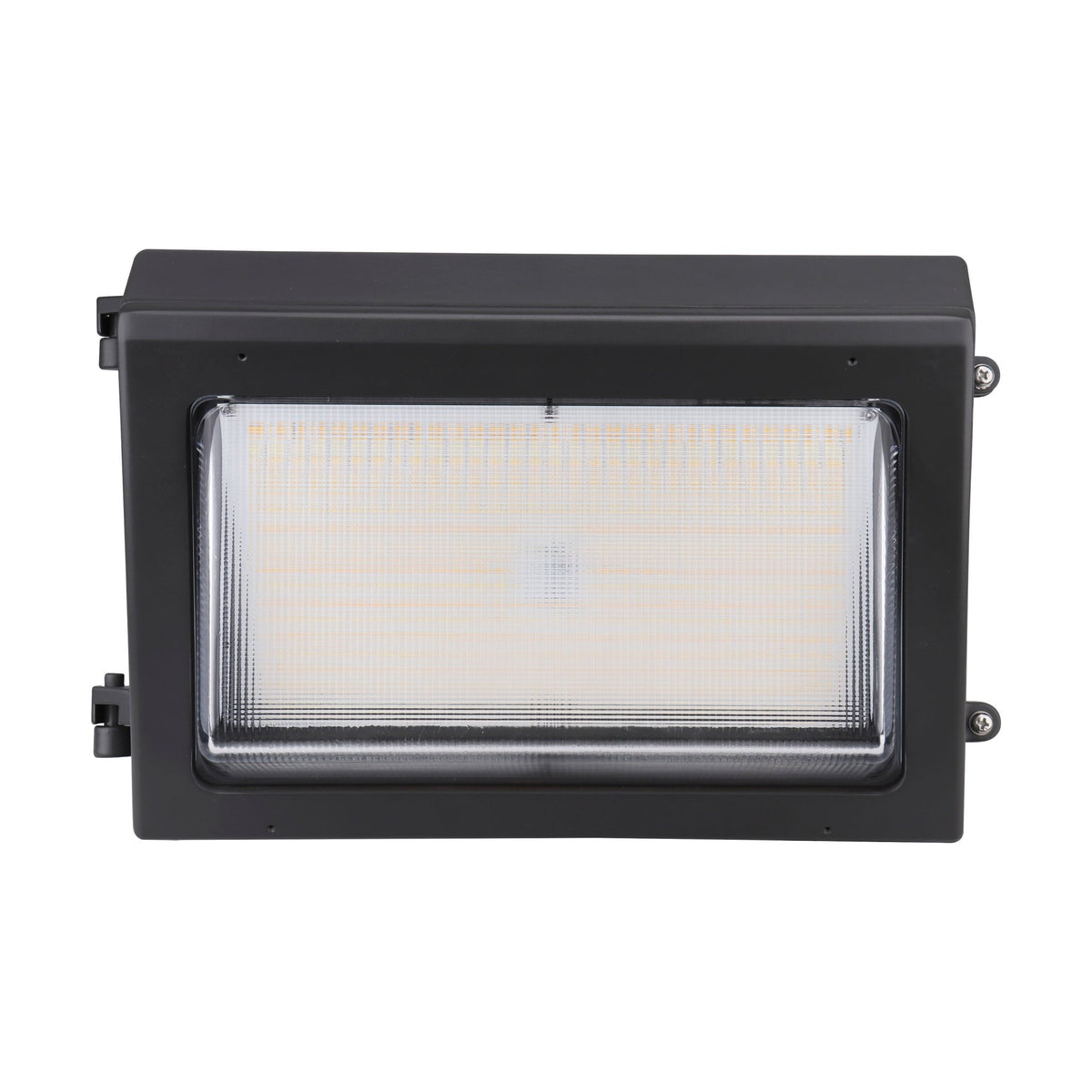

Satco 65-756 LED Wall Pack Selectable CCT + Wattage + Photocell
Satco 65-756 LED Wall Pack Selectable CCT + Wattage + Photocell
Regular price
$210.99
Regular price
Sale price
$210.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
65-756 LED Wall Pack Selectable CCT + Wattage + Photocell
CCT and Wattage Adjustable LED Wall Pack, Integrated Bypassable Photocell, CCT Selectable from 3000, 4000 or 5000K, Wattage Selectable from 80, 100, or 120 Watt, 120-277 Volt, Bronze Finish.
- 80W/100W/120W
- 11200L-17400L lumen output
- Selectable CCT: 30K/40K/50K
- 120V-277V / 120V-347V input
- Dimmable: Yes-Dimmable - 0-10V Dimming
- Wet location rated
- Bronze finish
- CRI 80+
- 50000 hour rated life
Spec Sheets
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Finish | Bronze |
| Wattage | 80W/100W/120W |
| Lens Material | Glass |
| Voltage | 120V-277V / 120V-347V |

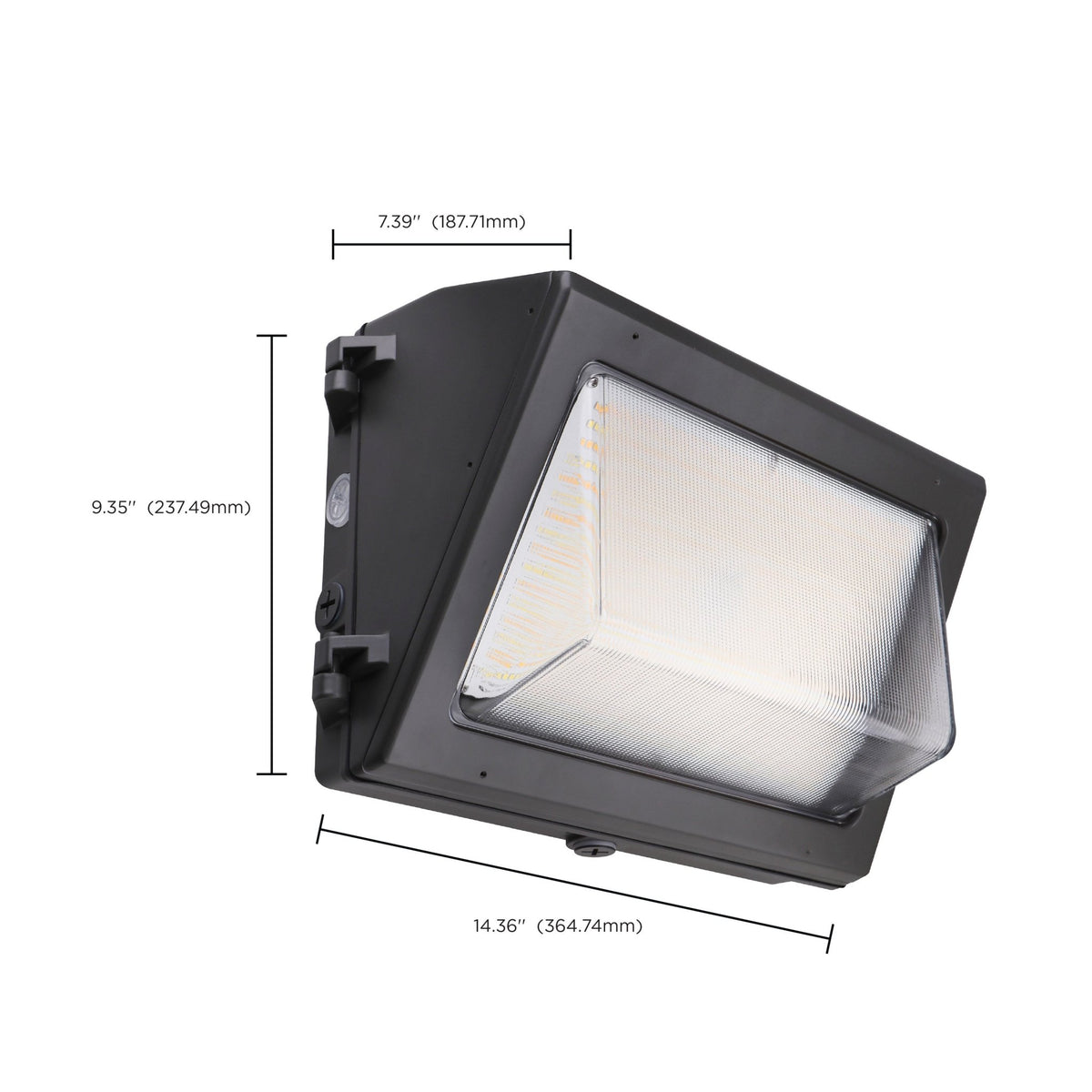

| Dimensions | W:14.36" H:9.35" E:7.39" |
| Lumen Output | 11200L-17400L |
| Weight (lb.) | 9.5 |
| Material | Die-Cast Aluminum |
| CRI | 80+ |
| Sensor | Yes - Bypassable |
| CCT (Kelvin) | 30K/40K/50K |
| Beam Angle | 110 |
| Safety Listing | cULus - Certified |
| Rated Hours | 50000 |
| Location Rating | Wet |
| Dimmable | Yes-Dimmable - 0-10V Dimming |
| Indoor or Outdoor Fixture | Indoor; Outdoor |
| DLC Approved | Yes |
| Incandescent Equivalent | 600W-1000W |
| HID Equivalent | 200W-400W |
| Operating Temperature | -40F to +122F (-40C to +50C) |
| Connection | Hardwire |
| IP Rating | IP65 |
| Surge Protection | Built-in surge protection - 4KV |
| THD | 15% |
| B.U.G Rating | B2-U4-G5 |
| Power Factor | >0.9 |
| Warranty | 5-Years |
