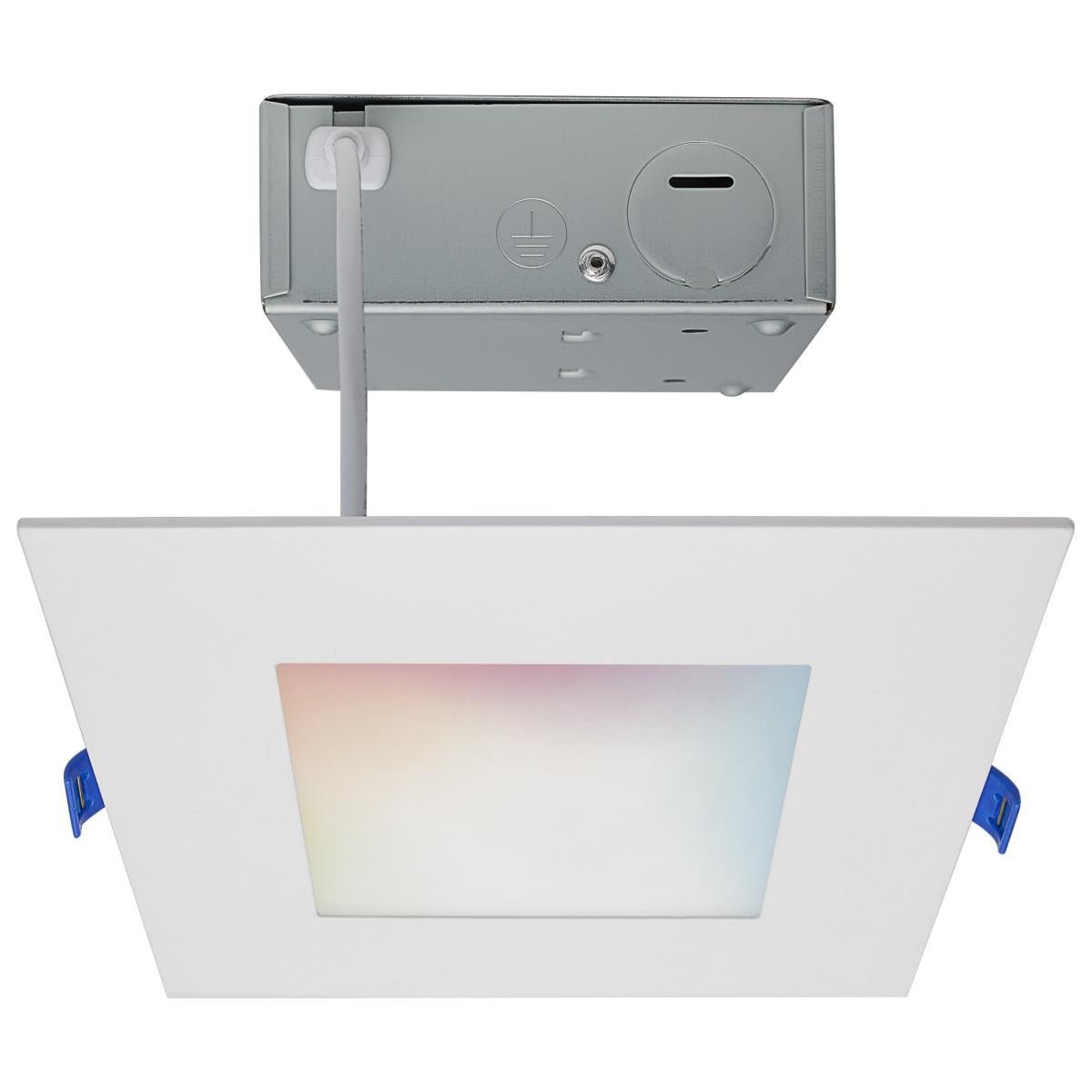

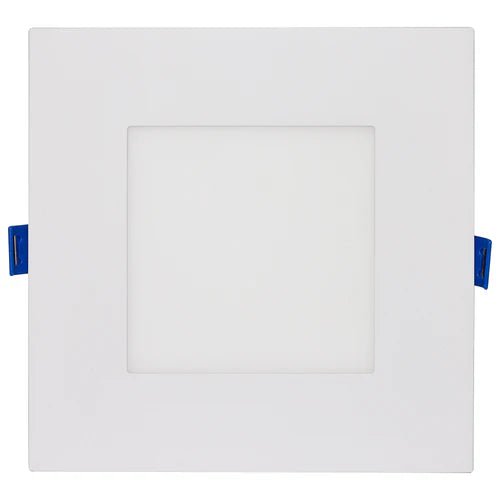

SATCO S11563 6" 12W Square LED Flat Wafer RGBW
SATCO S11563 6" 12W Square LED Flat Wafer RGBW
Regular price
$31.95
Regular price
Sale price
$31.95
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SATCO S11563 12W Square LED Flat Wafer RGB+CCT
The SATCO S11563 is a versatile 12W Square LED Flat Wafer that offers RGBW capabilities, making it ideal for dynamic lighting installations. Its 6-inch design provides a sleek, modern aesthetic, perfect for both residential and commercial spaces. With energy-efficient LED technology, this fixture ensures long-lasting illumination while reducing energy costs. Easy to install, the S11563 is suitable for a range of applications, delivering high-quality light with minimal maintenance.
- STARFISH smart enabled product
- RGB, color changing & tunable white
- Pre-set and customer effects
- Compatible with Google Home, Siri, Alexa, and SmartThings
- Wet location rated
- Dimmable with app
- 90 CRI
- ENERGY STAR
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Technology | LED |
| Watts | 12W |
| Volts | 120V |
| Lumens | 750 |
| CRI | 90 |
| R9 Value | 89 |
| CCT | 2000K-5000K - Warm to Cool |
| Beam Spread | 110 |
| Hours Rated | 50000 |
| Dimmable | Only with Starfish App |
| Dimmable Down To % | 100 to 10 percent |
| Dimming Type | Smart-Starfish App only |
| Incandescent Equivalent | 45W |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Replaceable Light Source | No |
| Connection | Direct Wired |
| THD | <30% |
| Power Factor | >0.9 |
| Warranty | 5 Year Limited - Fixtures |
| Height (in.) | 1.00 |
| Width (in.) | 7.17 |
| Length (in.) | 7.17 |
Additional Info
| Safety Listing | cETLus |
| Location Rating | Wet |
| Energy Star | Yes |
| ES Unique ID | ESID-2494958 |
| Airtight | |
| IC Rated | Yes |
| CA T20 / T24 Rationale | CA T20 / T24 Rationale |
| California Status | Lawful for sale in California |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
| Installation Notes | Driver Dimensions: 3.46 Inches Long x 3.46 Inches Wide x 1.44 Inches High |
| Warranty | 5 Year Limited - Fixtures |
