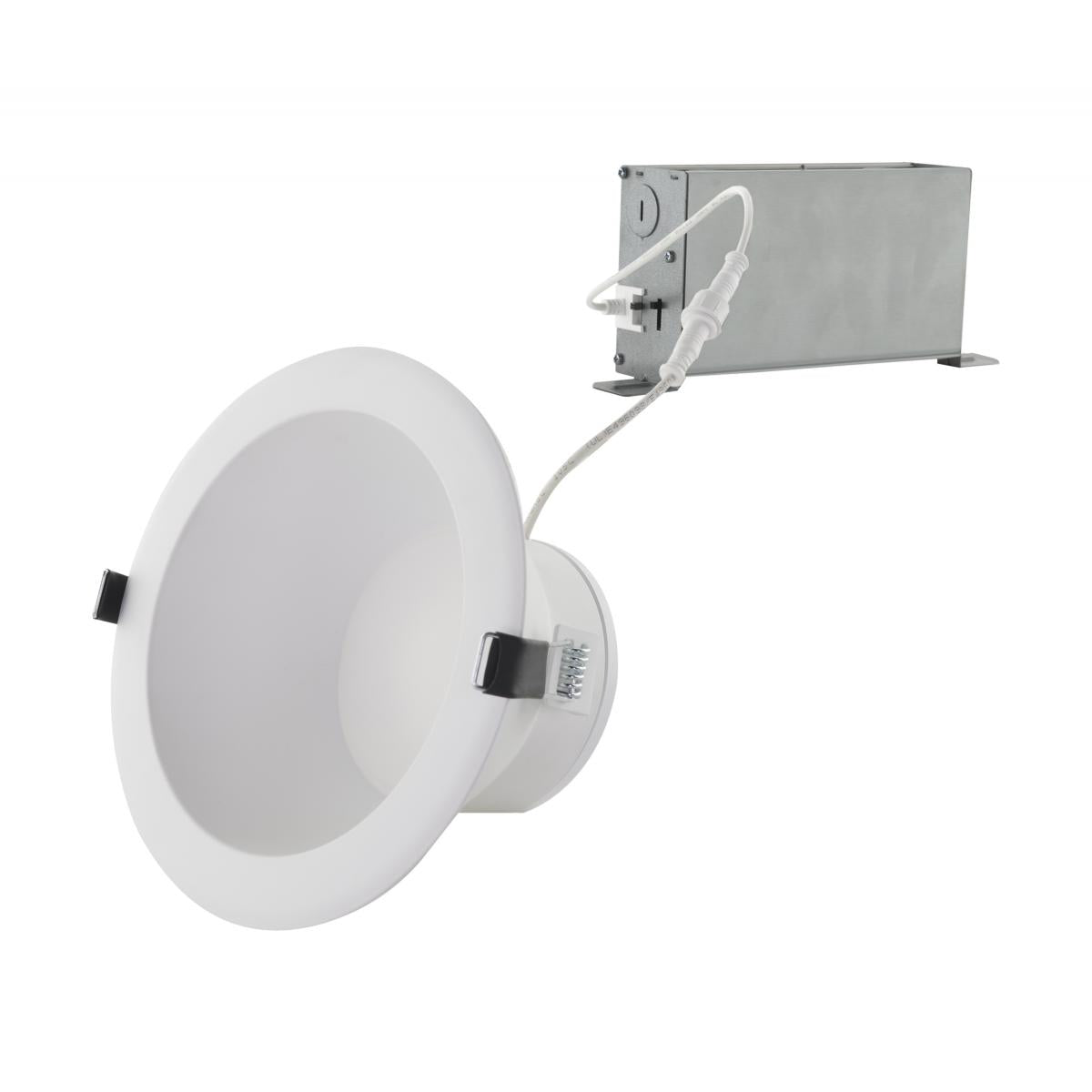

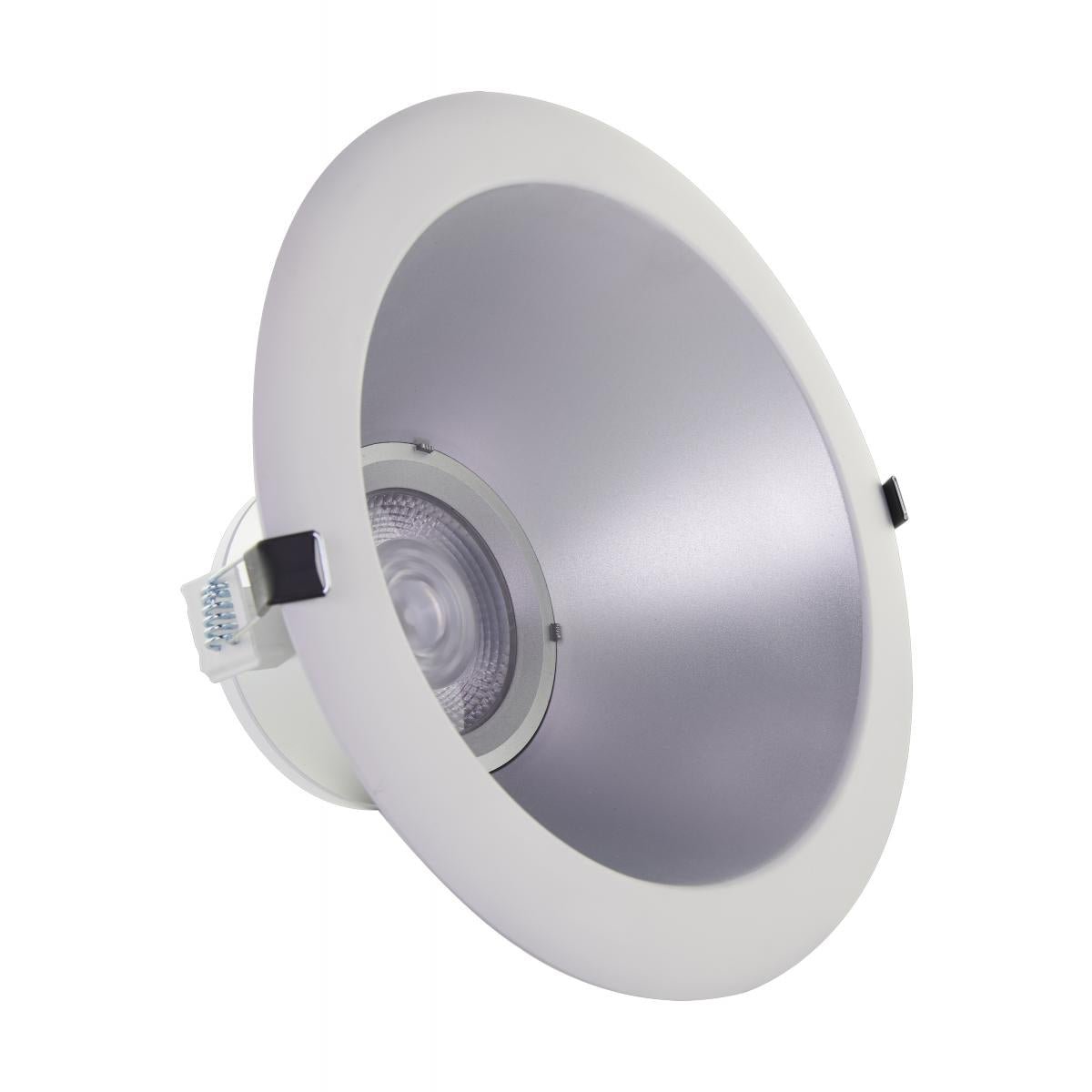

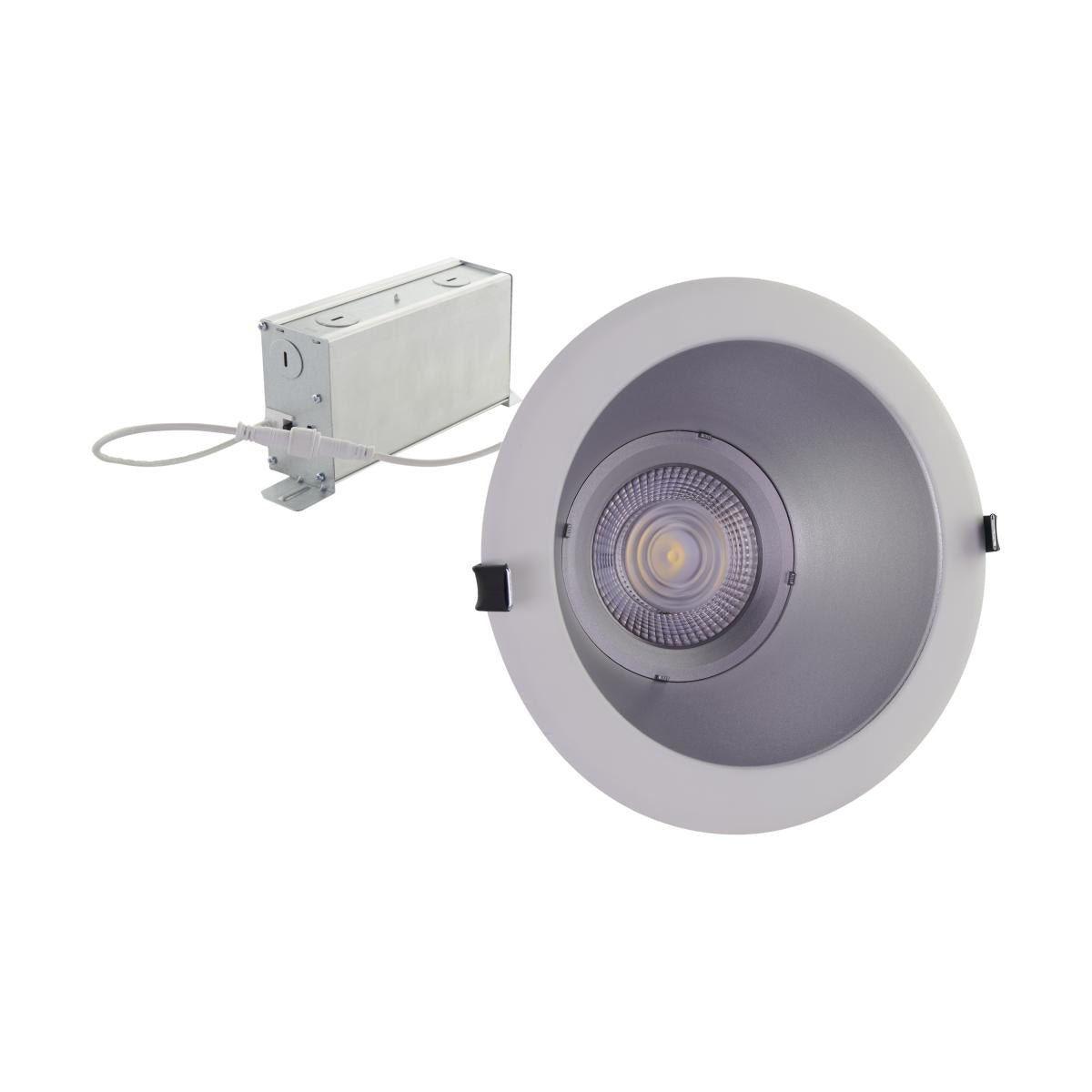

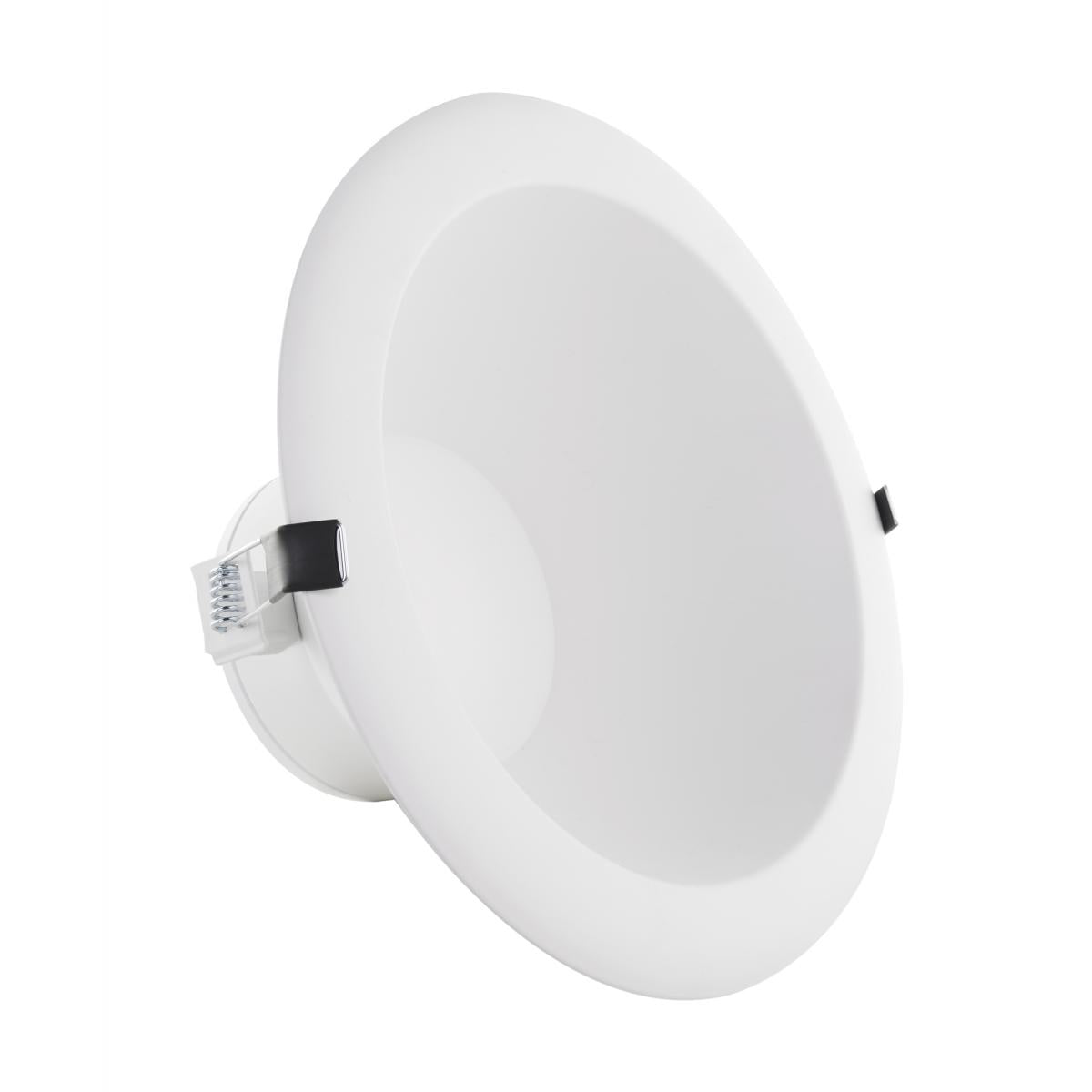

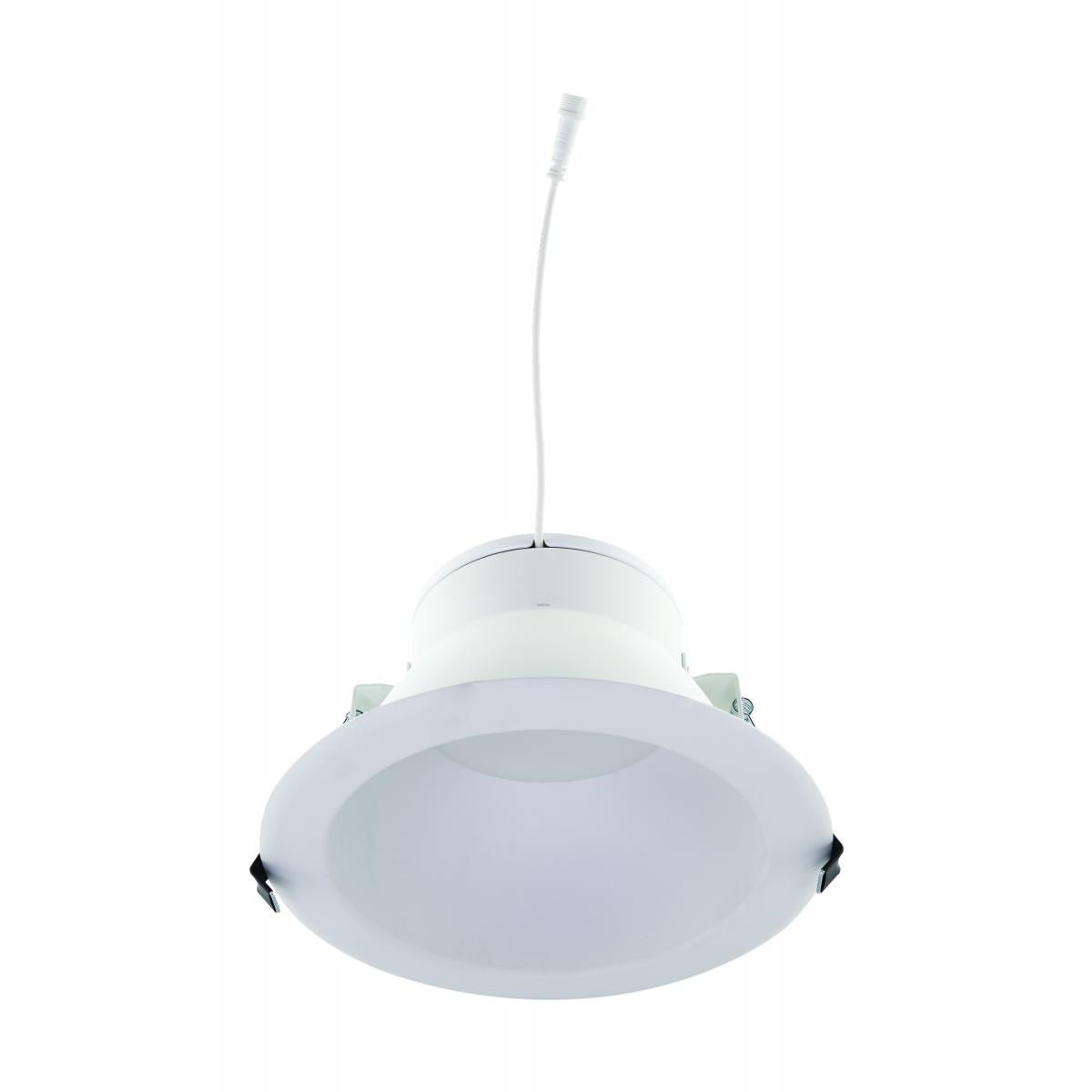

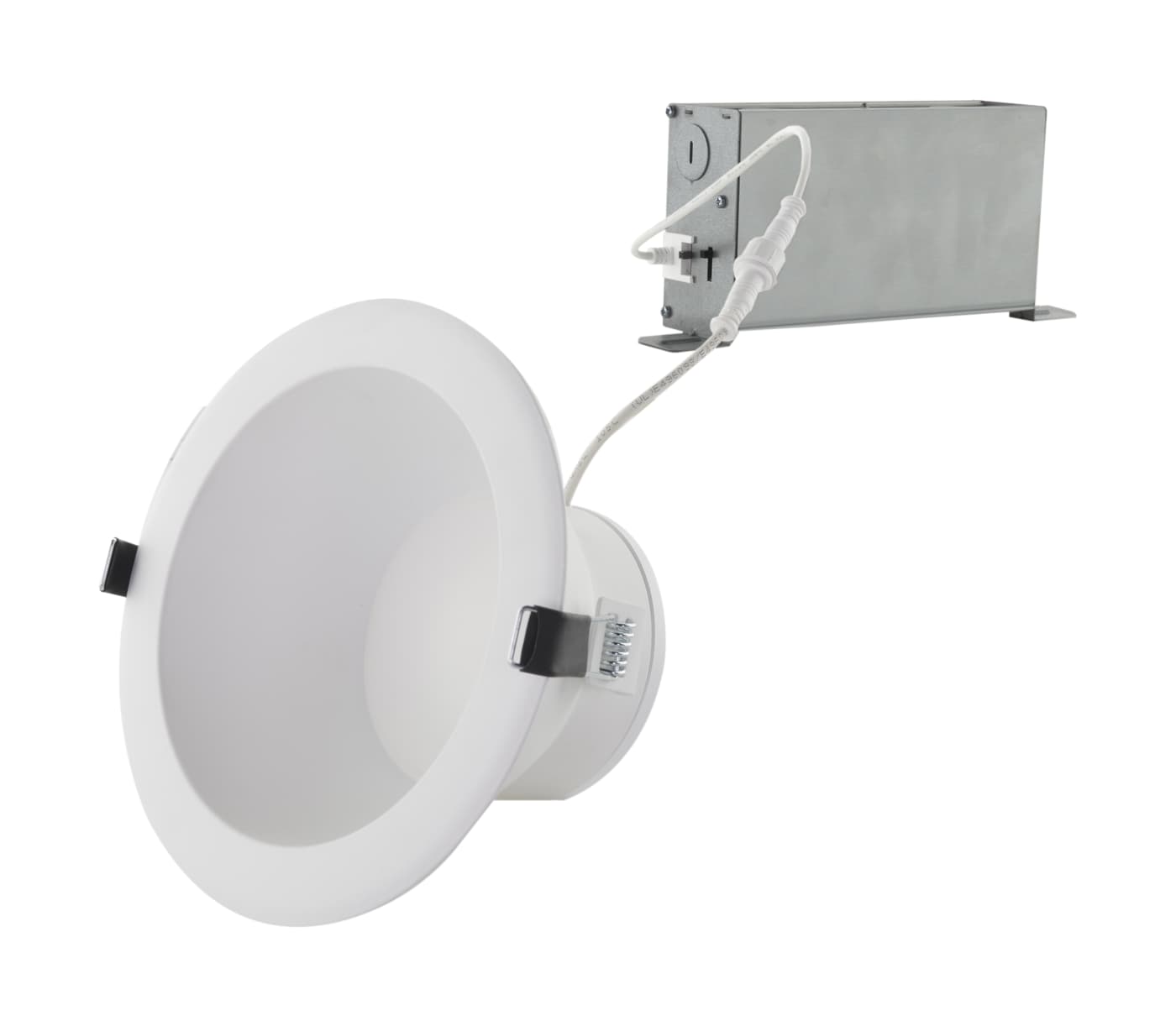

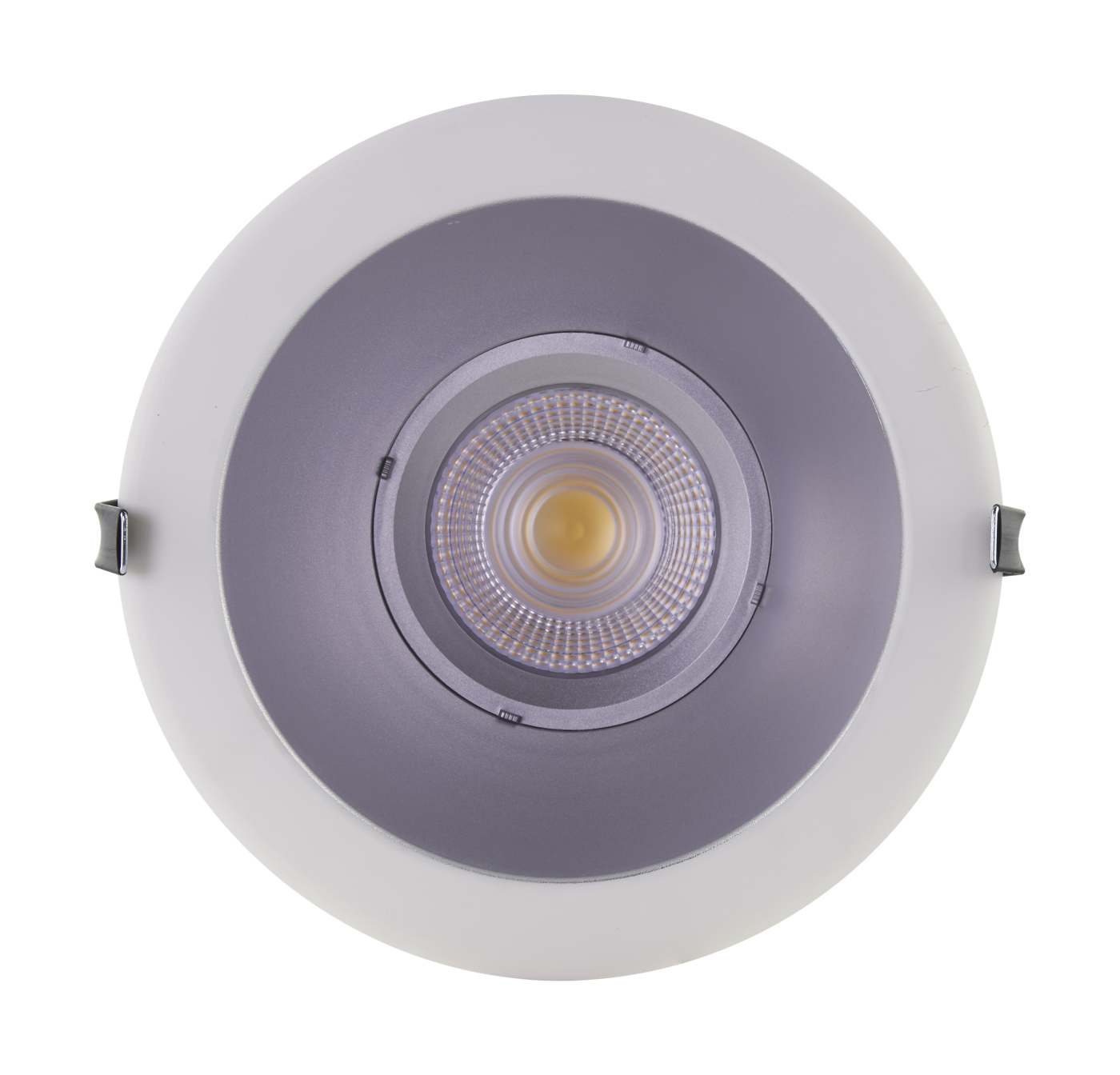

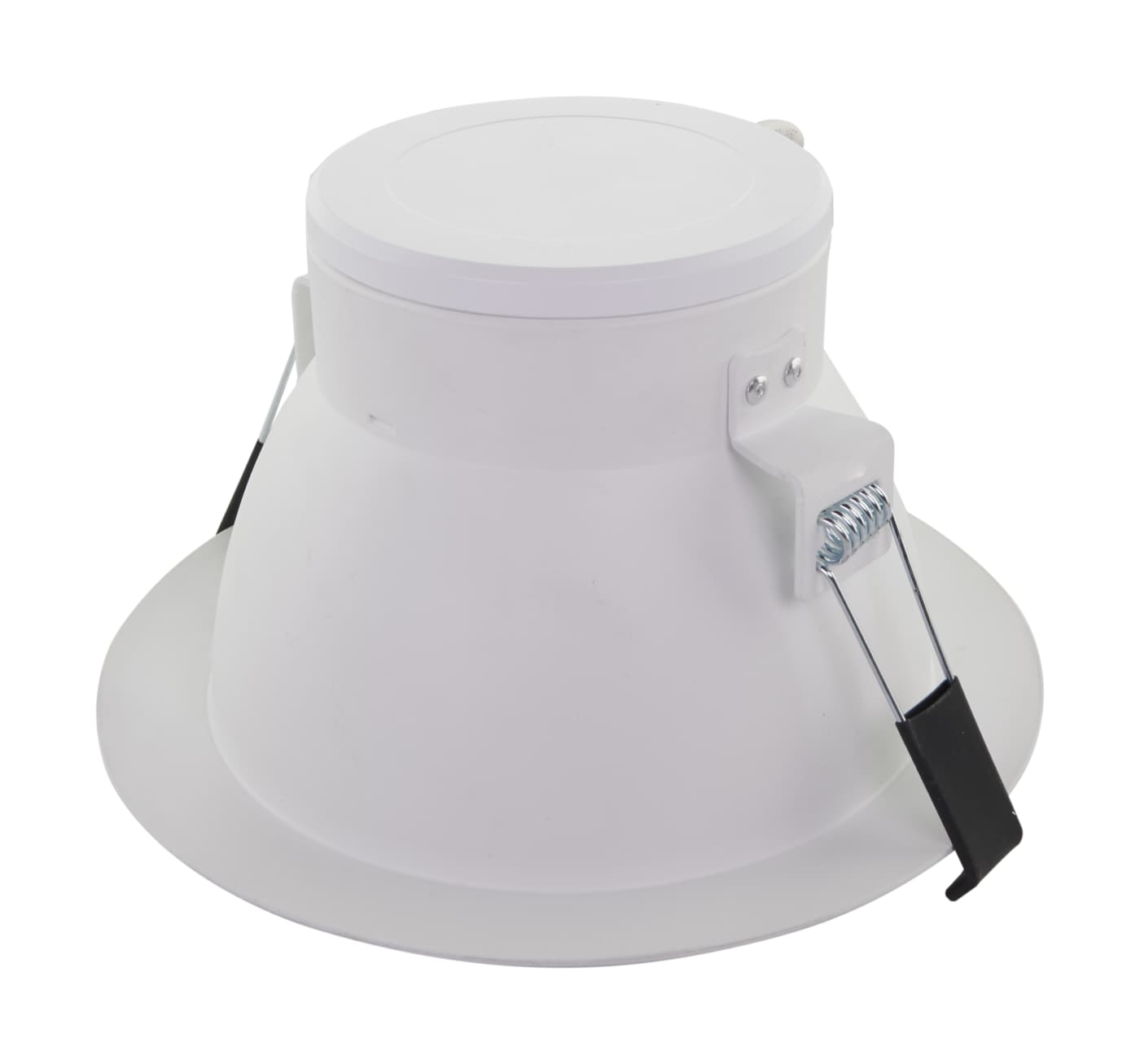

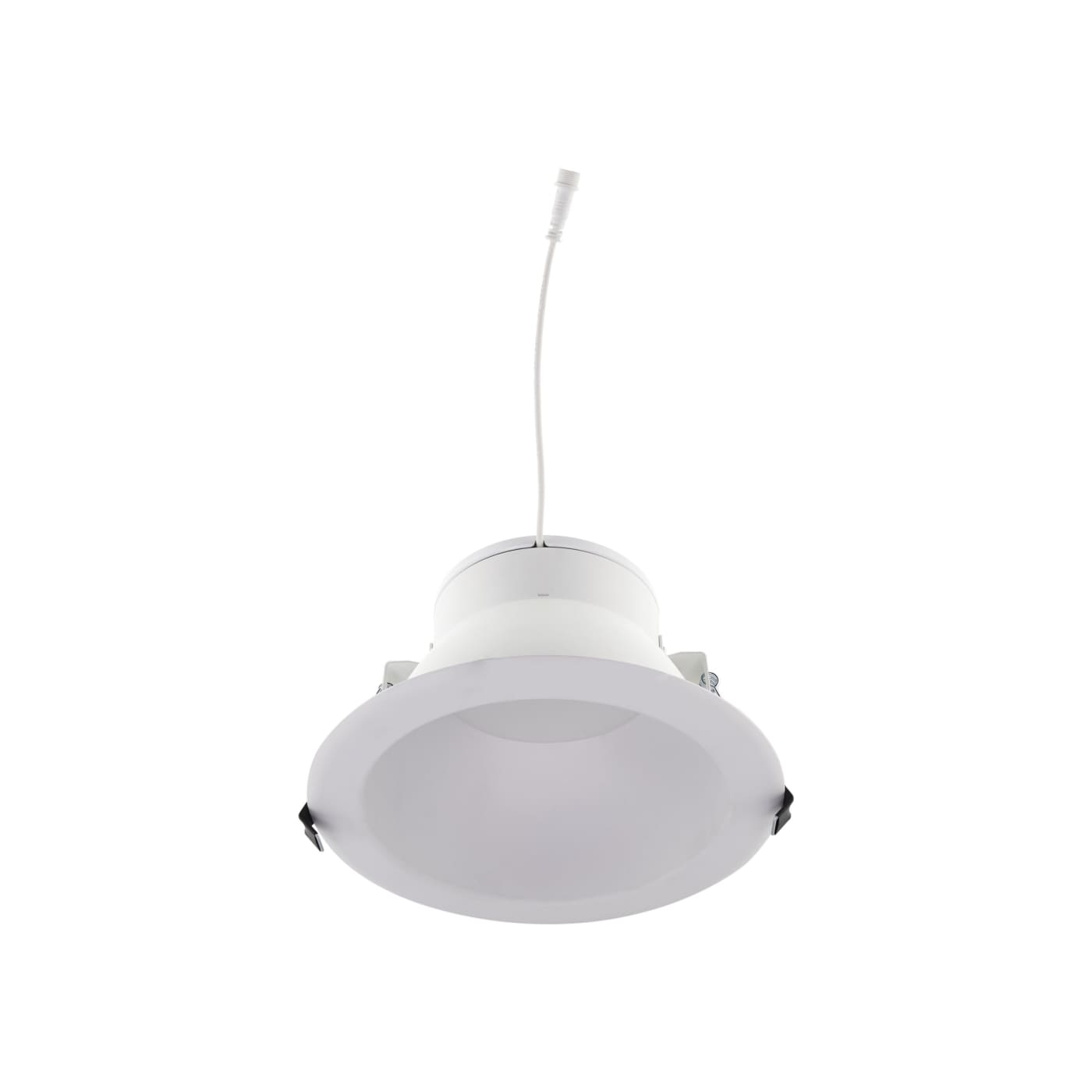

SATCO S11811 S11815 23W LED 6" Round Downlight Selectable CCT Selectable Lumen
SATCO S11811 S11815 23W LED 6" Round Downlight Selectable CCT Selectable Lumen
Regular price
$54.95
Regular price
Sale price
$54.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
23WLED/CDL/6/ADJ-CCT/40D-80D

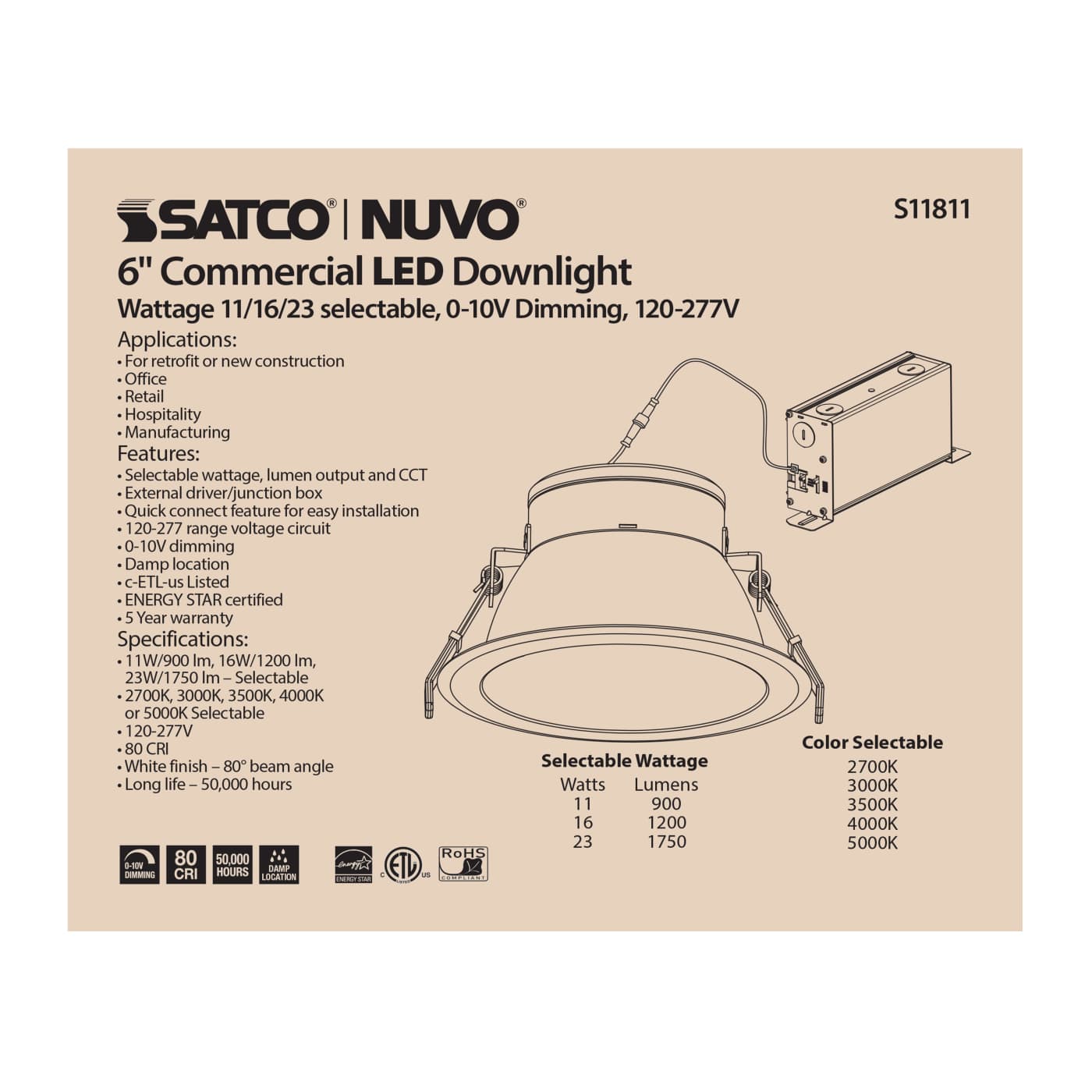

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
General
| Status | Active |
| Wattage | 11W/16W/23W |
| Voltage | 120V-277V |
| Finish | White or Silver |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| Lumen Output | 900L/1200L/1750L |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheets
| Color | Spec Sheet |
| White | S11811 |
| Silver | S11815 |
Installation Instructions
Info
| Technology | LED |
| Wattage | 11W/16W/23W |
| Lumen Output | 900L/1200L/1750L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle |
White 80 Silver 40 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +40C (+104F) |
| Dimmable | Yes-Dimmable |
| IC Rated | Yes |

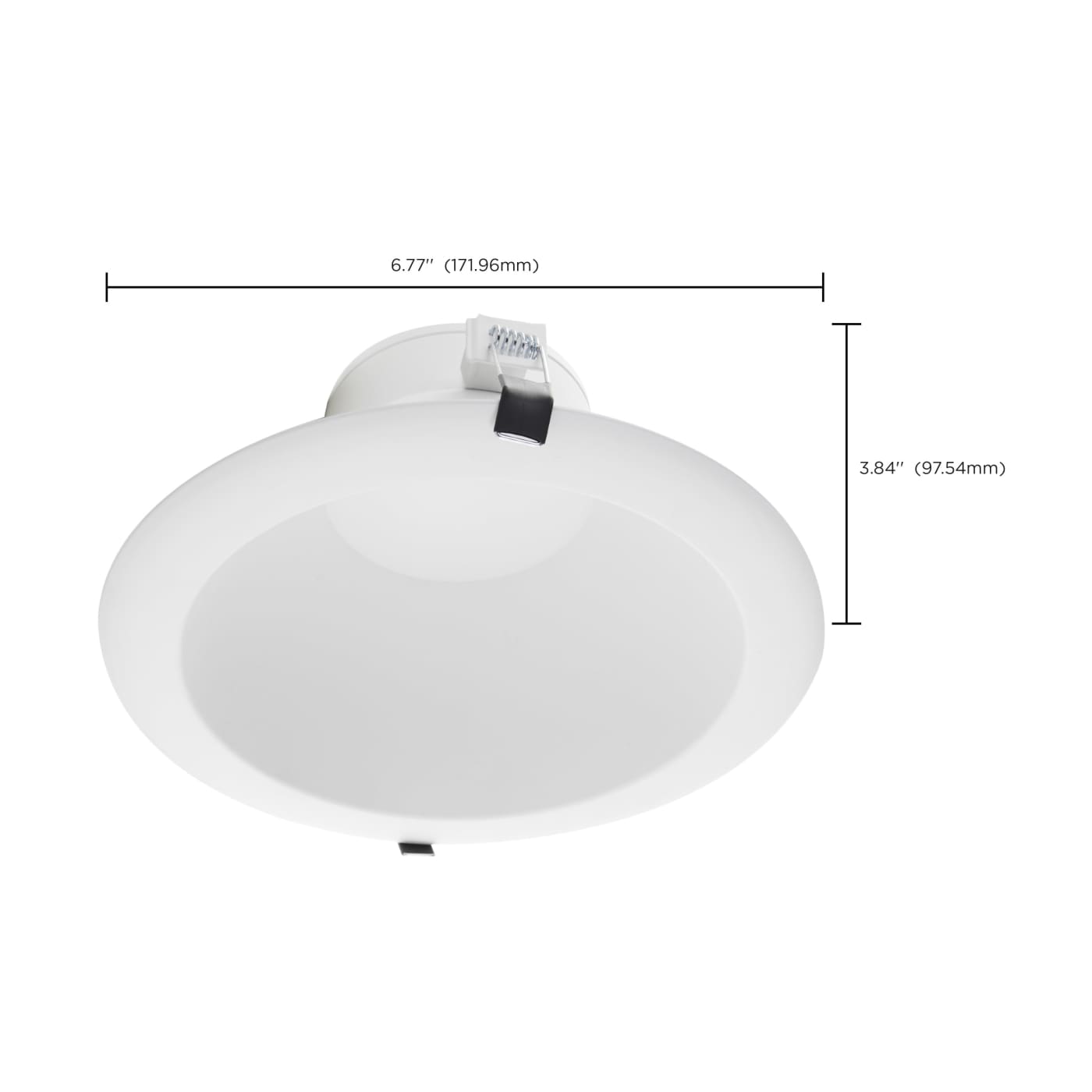

Dimensions
| Width (in.) | 6.77 |
| Height (in.) | 3.87 |
| Weight (lb.) | 1.47 |
Additional Info
| Safety Listing | cETLus |
| Location Rating | Damp |
| Energy Star | Yes |
| ES Unique ID |
White ESID-2353226 Silver ESID-2353227 |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Additional Information | Adjustable color temperature (CCT) 2700K 3000K 3500K 4000K 5000K.Three lumen ranges 900L/1200L/1750L |
| Installation Notes | Can be installed with or without the rough-in plate (80-959) |
| Warranty | 5 Year Limited - LED Commercial Downlights |
