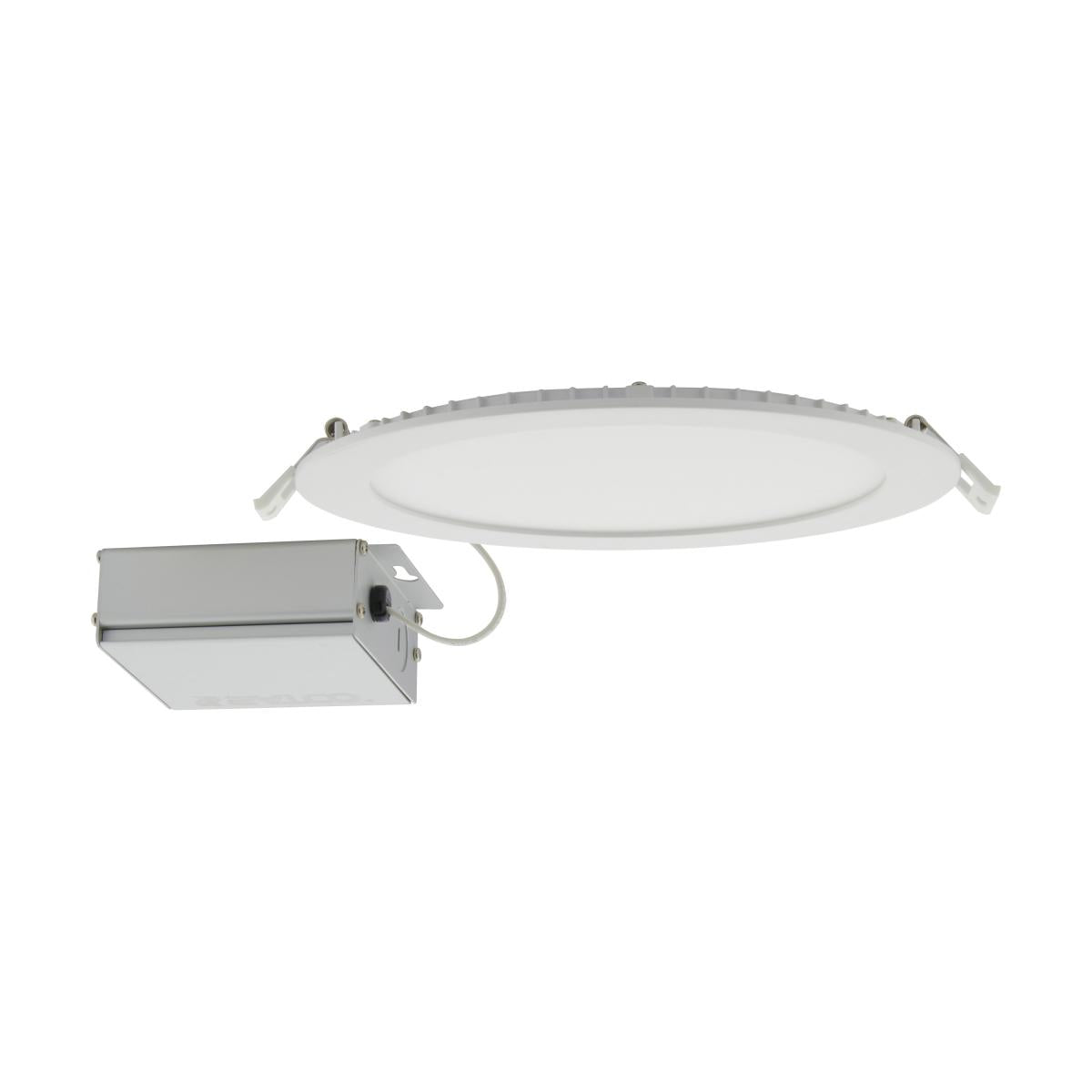

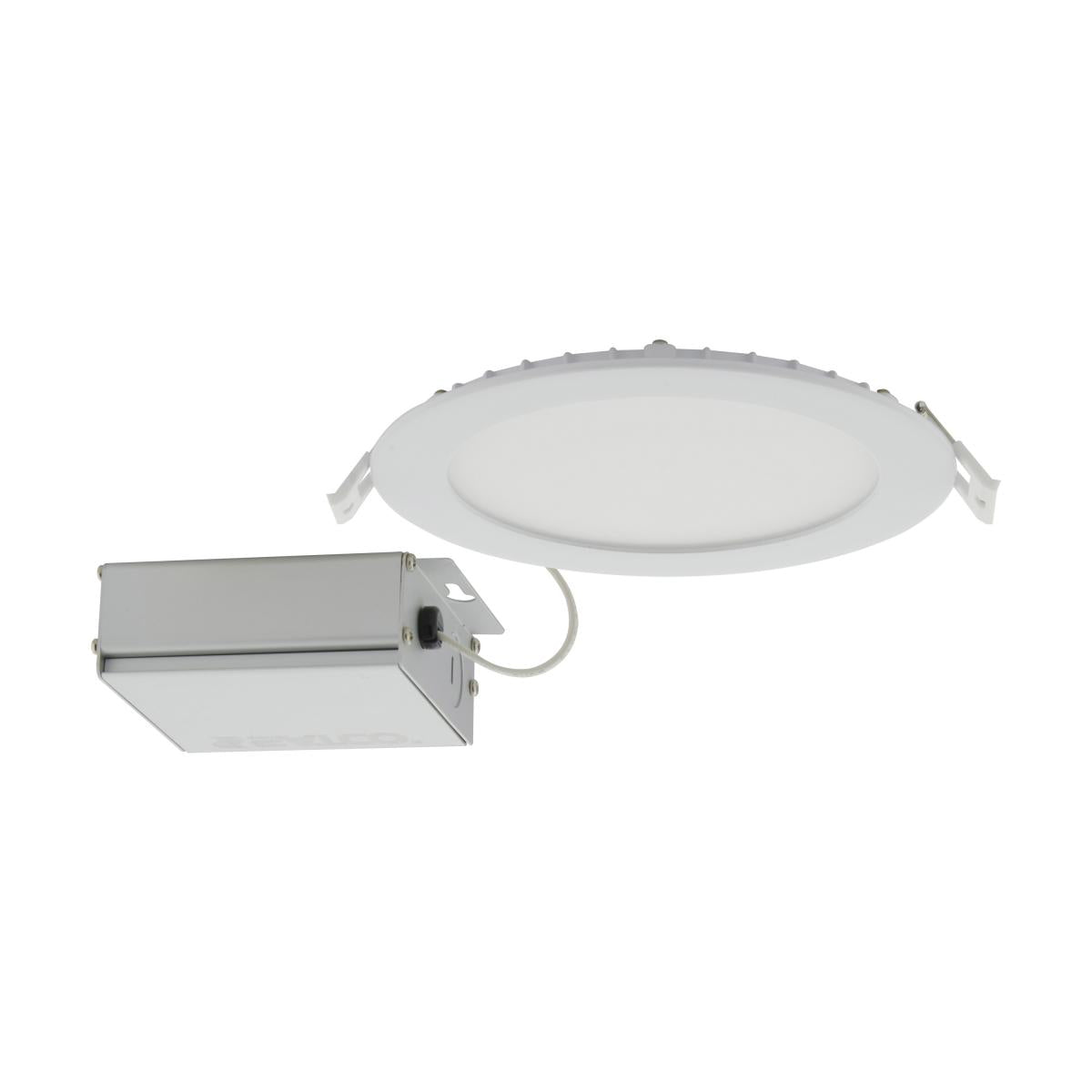

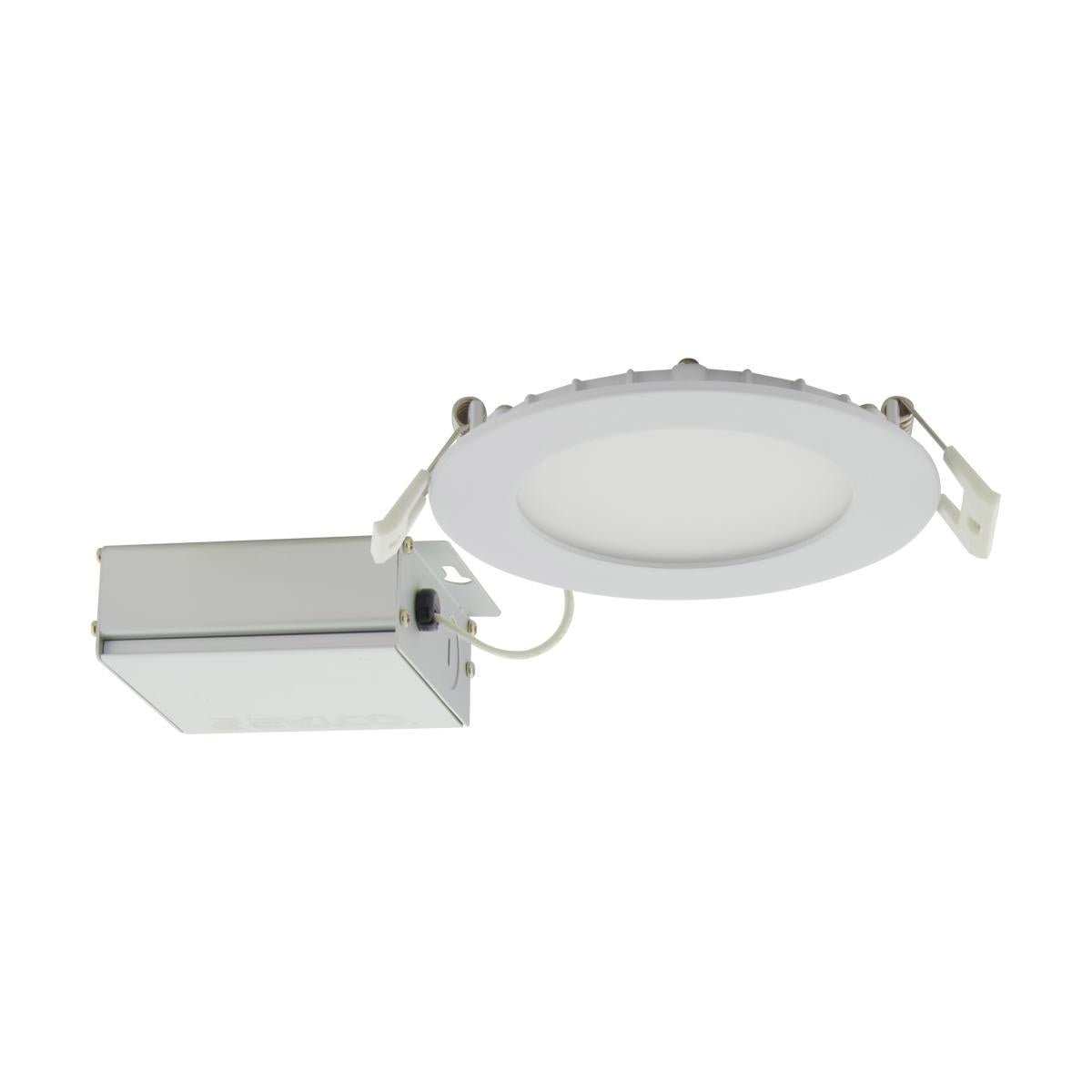

SATCO S11826 4"/6"/8" LED Round Direct Wire Edge Lit Recessed Downlight Selectable CCT
SATCO S11826 4"/6"/8" LED Round Direct Wire Edge Lit Recessed Downlight Selectable CCT
Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
10W/12W/24W-LED/DW/EL/4-6-8/CCT-SEL/RND/RD
10/12/24 Watt; LED Direct Wire Downlight; Edge-lit; 4/6/8 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver
General
| Status | Active |
| Wattage | 10W/12W/24W |
| Voltage | 120V |
| Finish | White |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| Lumen Output | 650L/900L/1850L |
| Indoor or Outdoor Fixture | Indoor |
Spec Sheets
| Size | SKU |
| 4" | S11826 |
| 6" | S11827 |
| 8" | S11828 |
Installation Instructions
Info
| Technology | LED |
| Wattage | 10W/12W/24W |
| Lumen Output | 650L/900L/1850L |
| CCT (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 90 |
| Voltage | 120V |
| Beam Angle | 108 |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
| Dimmable | Yes-Dimmable |
| IC Rated | Yes |
| Sloped Ceiling | No |
| Size | 4" | 6" | 8" |
| Width (in.) | 4.72 | 6.78 | 8.86 |
| Height (in.) | 1.02 | 1.02 | 1.02 |
| Weight (lb.) | 0.71 | 1.00 | 1.57 |
Additional Info
| Safety Listing | cETLus |
| Location Rating | Wet |
| Energy Star | Yes |
| ES Unique ID |
4" ESID-2369679 6" ESID-2369681 8" ESID-2369690 |
| California Status | California T24 Listed |
| California Prop 65 |
Lead
|
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
Additional Information
| Warranty | 5 Year Limited - Fixtures |
