Satco

SATCO TH761 8W Track Head Selectable CCT/DTW 36°

SATCO TH761 8W Track Head Selectable CCT/DTW 36°

$41.99
$41.99
Sale Sold out
Shipping calculated at checkout.
Beam Angle
Wattage
Color Temperature

8W 36° Universal H Track Head Selectable CCT + DTW

The SATCO TH761 8W Track Head offers 5 selectable CCT + DTW and a 36 degree beam spread, making it a versatile and efficient choice for any lighting project. With a white finish, this LED track head adds a sleek and modern touch to any space.

  • 8 Watt LED H-Style Track Head

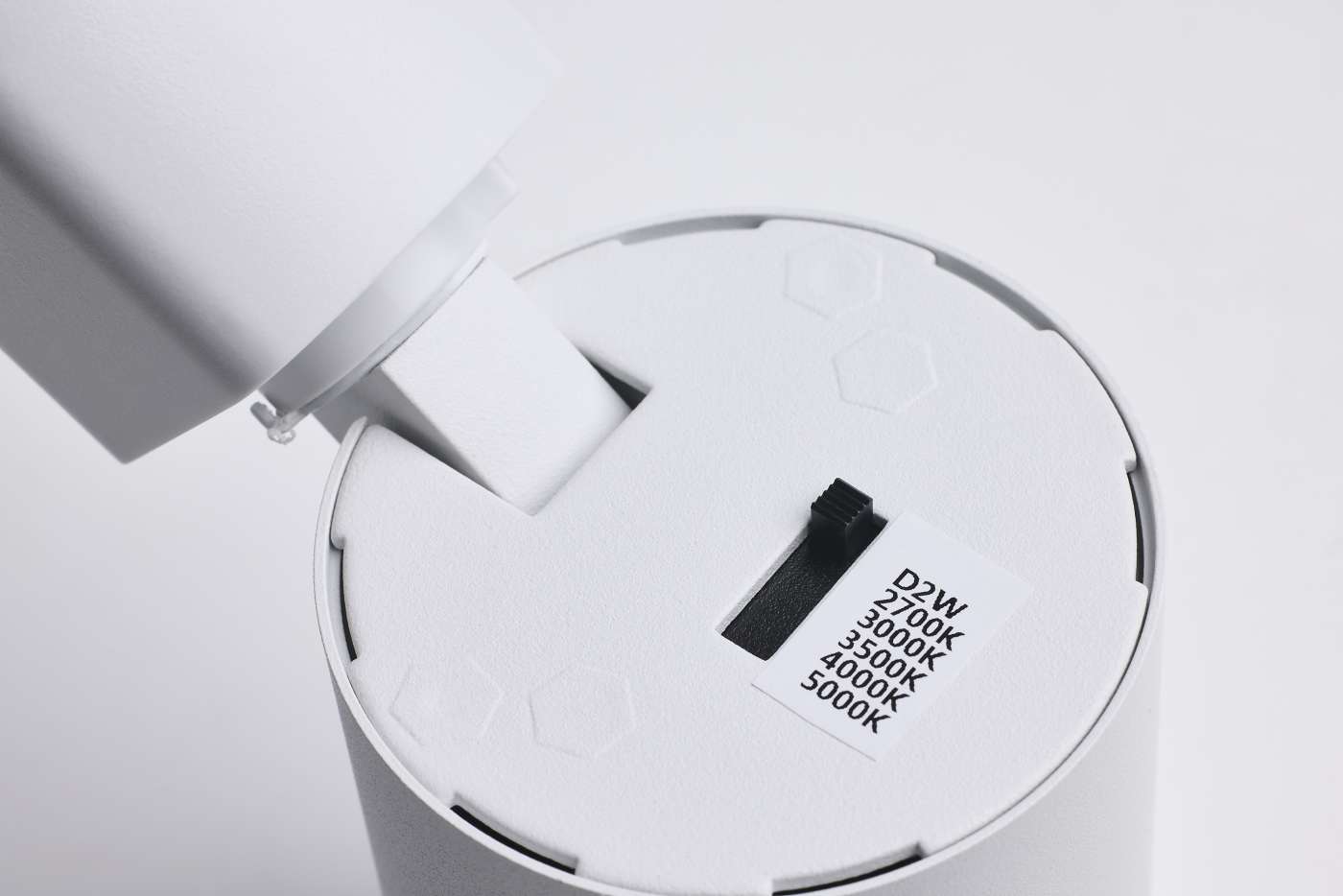

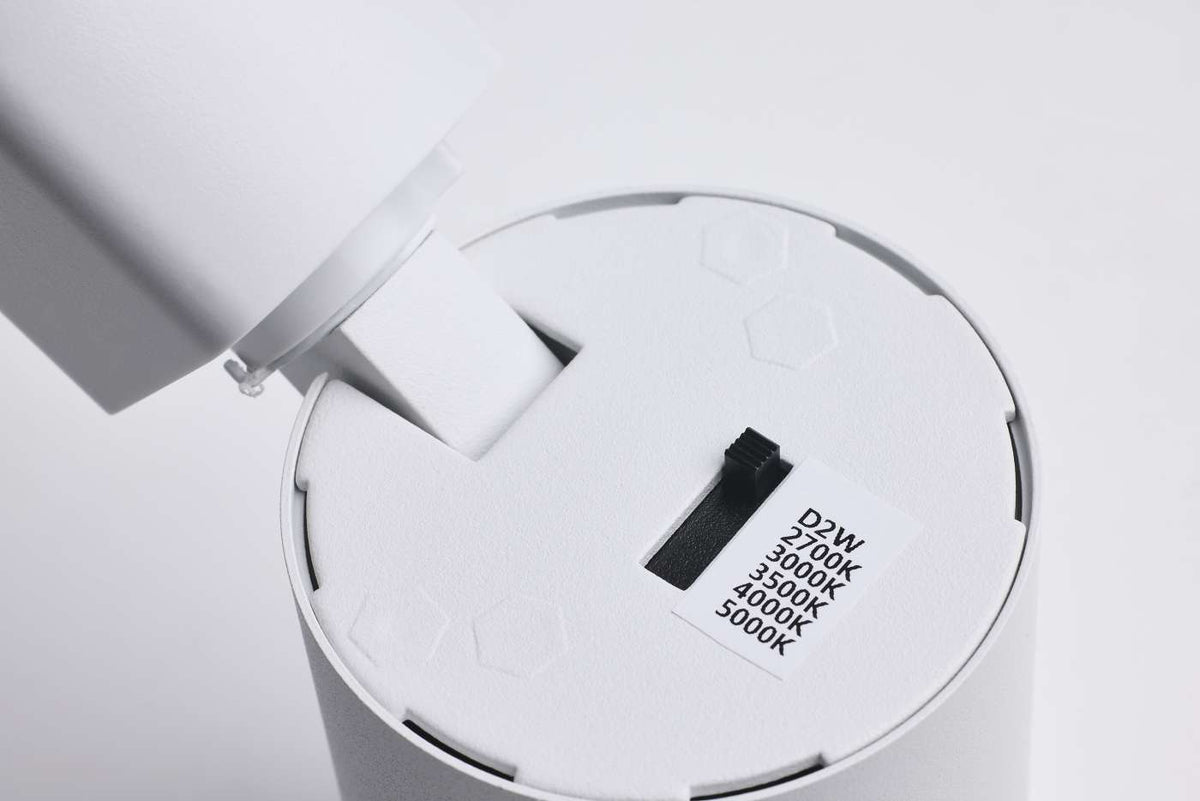

  • 27K/30K/35K/40K/50K CCT Selectable
  • Dim-to-Warm
  • 36 Degree Beam Angle
  • White Finish
  • 120 Volt
  • H-Style
Status Active
Type ORB Track Head
Wattage 8W
Finish White
Beam Angle 36°
CCT (Kelvin) 27K/30K/35K/40K/50K DTW
Spec Sheets

Spec Sheet

Installation Instructions

Track Family

Info
CCT (Kelvin Temp) 27K/30K/35K/40K/50K DTW
Dimmable Yes-Dimmable
Hours Rated 50000
Beam Angle (degree) 36
CRI 90+
Dimming Type 120V only, Phase cut
Operating Frequency 60Hz
Operating Temp -20C (-4F) to +40C (+104F)
Lumens 500L-600L
Volts 120v
Watts 8W
Dimensions
Height (in.) 1.30
Length (in.) 4.70
Extension (in.) 7.13
Additional Info
CA Prop 65 Lead
Dark Sky Rated No
FCC Compliant Yes
IP Rating IP20
Location Rating Dry
NSF Approved No
ROHS Compliant Yes
Safety Listing cETLus
California Ban Lawful for sale
Energy Star Certified No
Title 20 Exempt
T24 Compliant Yes
