WAC Lighting

WAC LED-TC InvisiLED® Connectors Accessories

$39.99

Sale Sold out

Shipping calculated at checkout.

Style End Cap (Black) "L" Connector 2" Joiner 6" Joiner 12" Joiner 36" Joiner 72" Joiner Male to male connector (50PCS) Low Voltage Wiring Box With Switch (White)

Quantity

InvisiLED® Accessories and Connectors

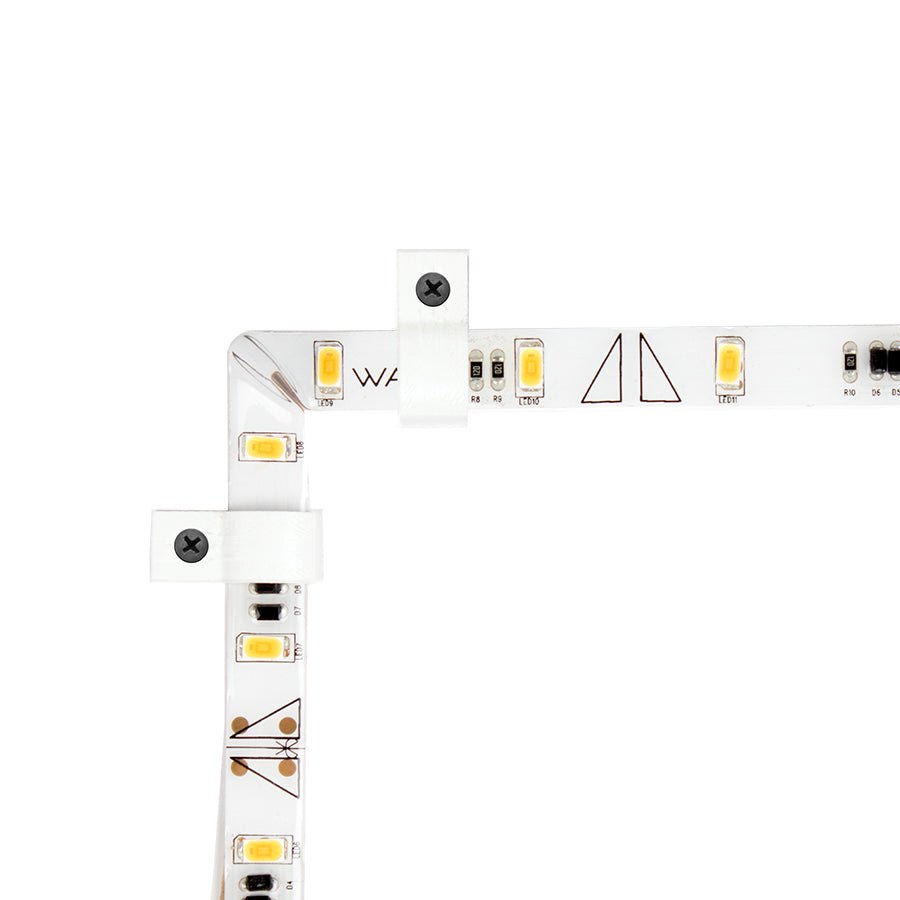

A specification grade tape light that is designed for task or accent lighting applications. This tape can be folded to create customized patterns with the help of LED-T-CL1 clips for a flattering look. Pro3 is equipped with evenly spaced diodes at 1'' on the center to prevent dark spots and can be field-cut at 6" at the end of a run to perfectly fit into your interior space.

2700K, 3000K, 3500K, 4500K
CRI: 95
Power: 5W/FT
Input: 24 VAC/DC
Rated Life: 70000 Hours
Both sides of field cut material can be used with male to male adapter
Foldable design for lateral pattern creation
Ultra thin profile at 1/8". 90° fold height of 3/8"
Diodes spaced evenly at 1" on center
May be field cut every 6" at the end of a run
Transformer required
Can be mounted on ceiling or wall in all orientations

Spec Sheet

Installation Instructions

Info

Catalog No.	Description

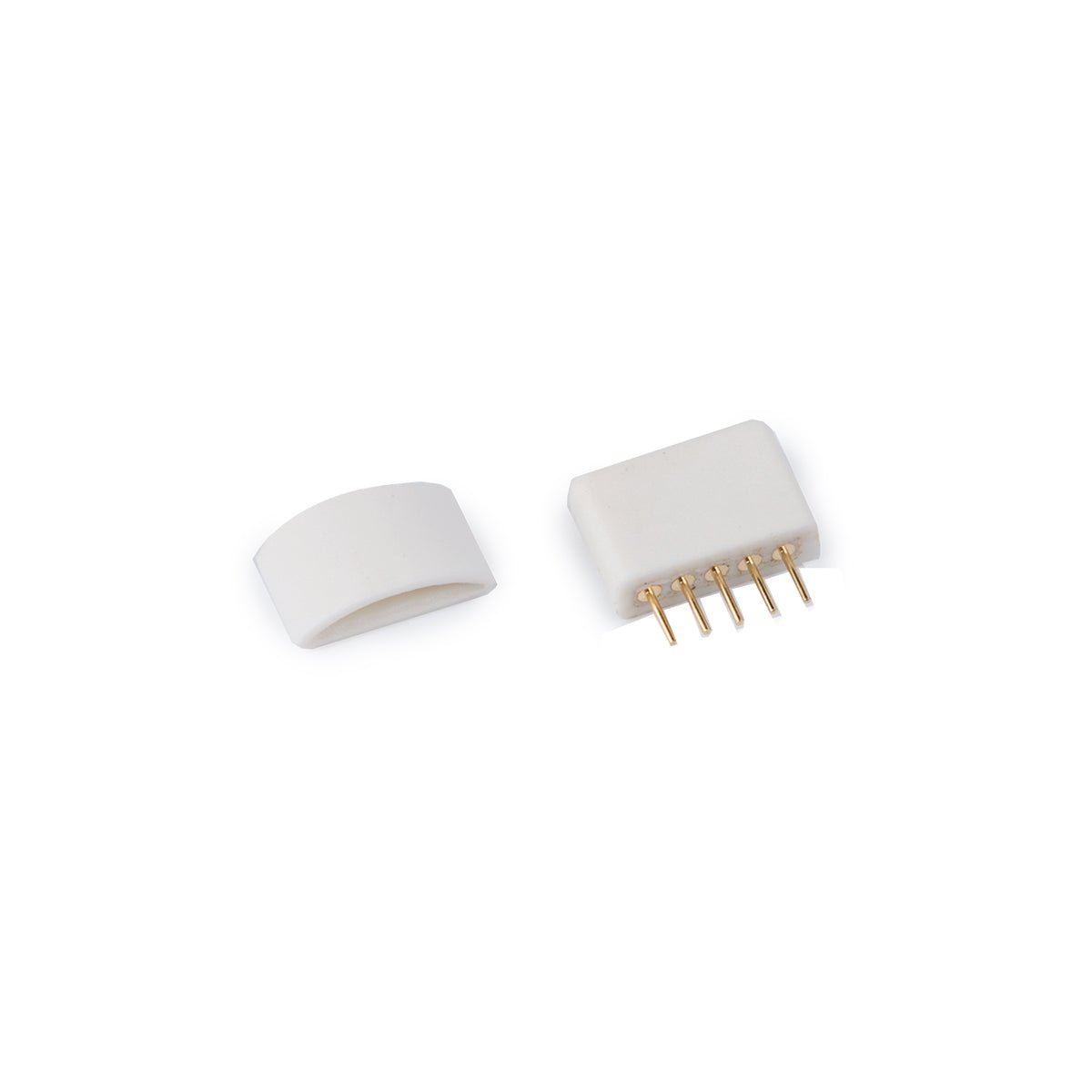

LED-TC-EC	1 cut and 1 male end cap

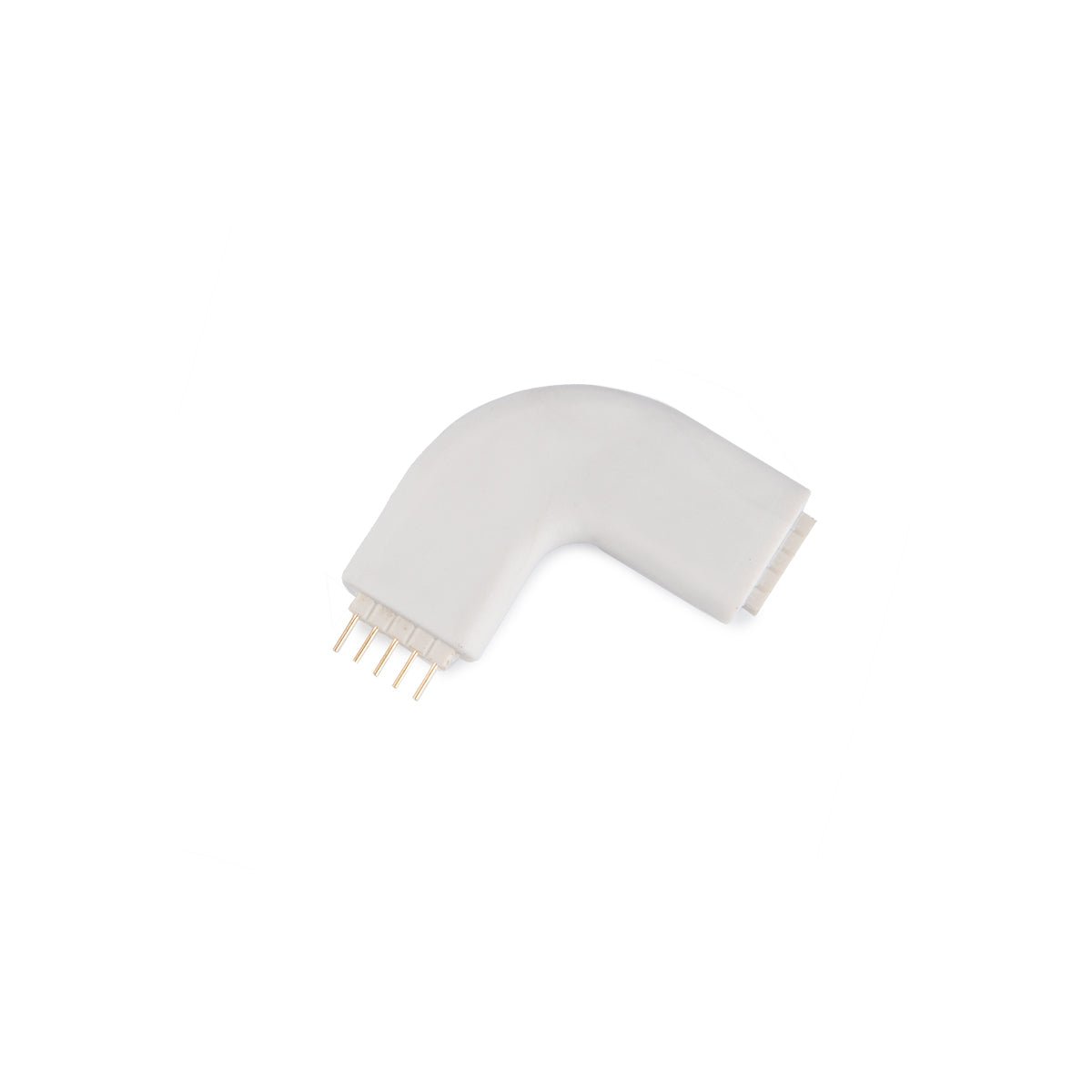

LED-TC-L-WT	"L" Connector

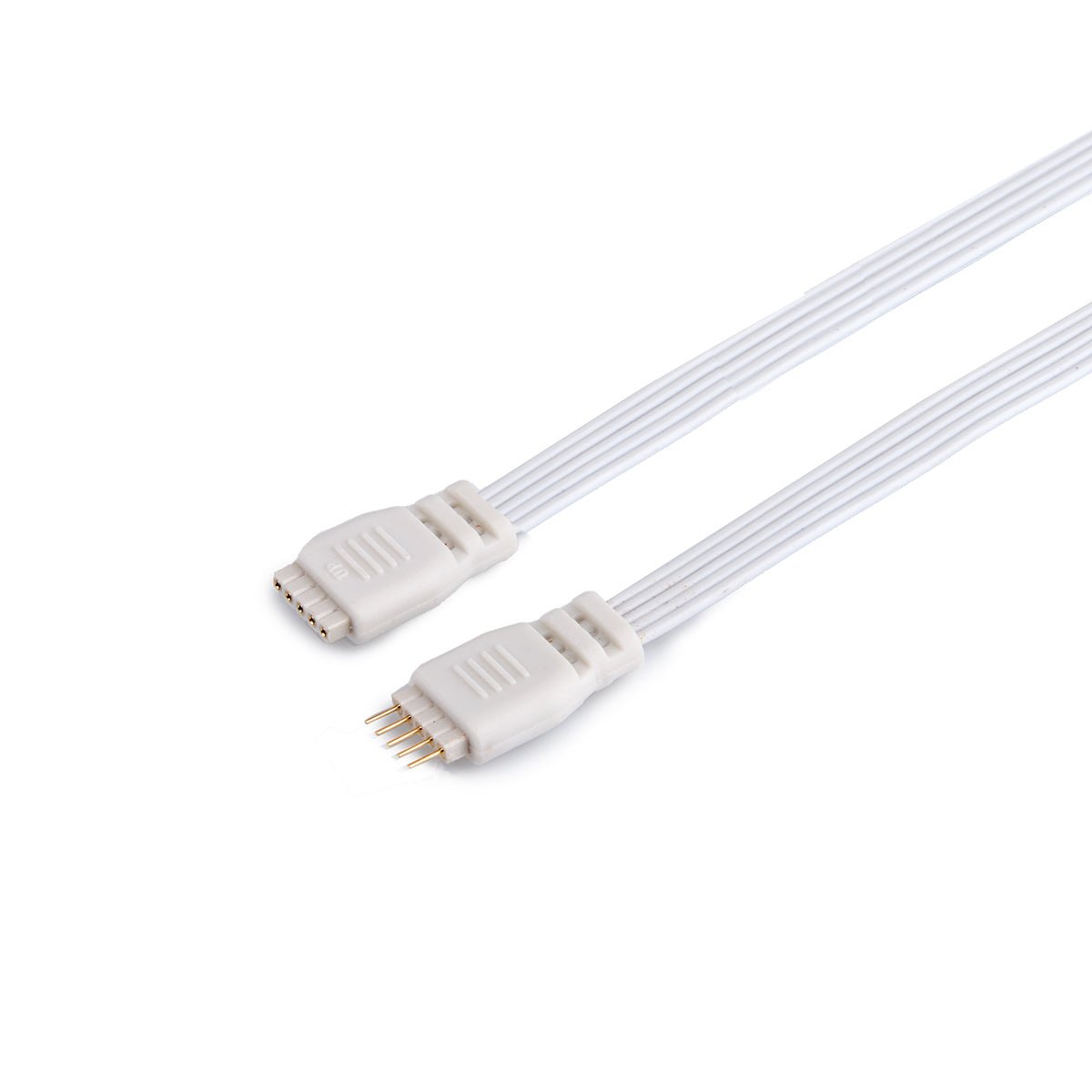

LED-TC-IC2	2" Joiner
LED-TC-IC6	6" Joiner
LED-TC-IC12	12" Joiner
LED-TC-IC36	36" Joiner
LED-TC-IC72	72" Joiner

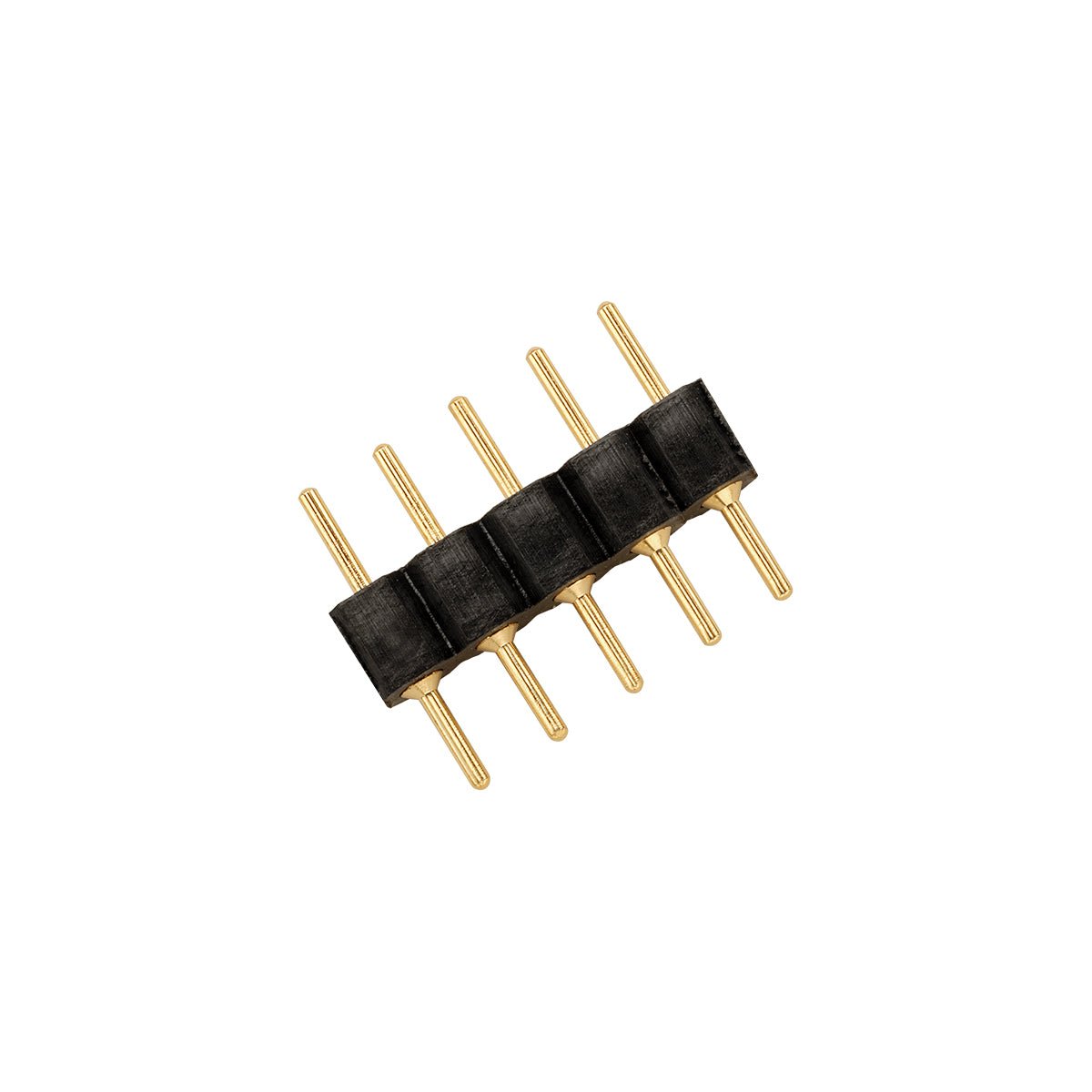

LED-TC-MM	Male to male connector (50PCS)

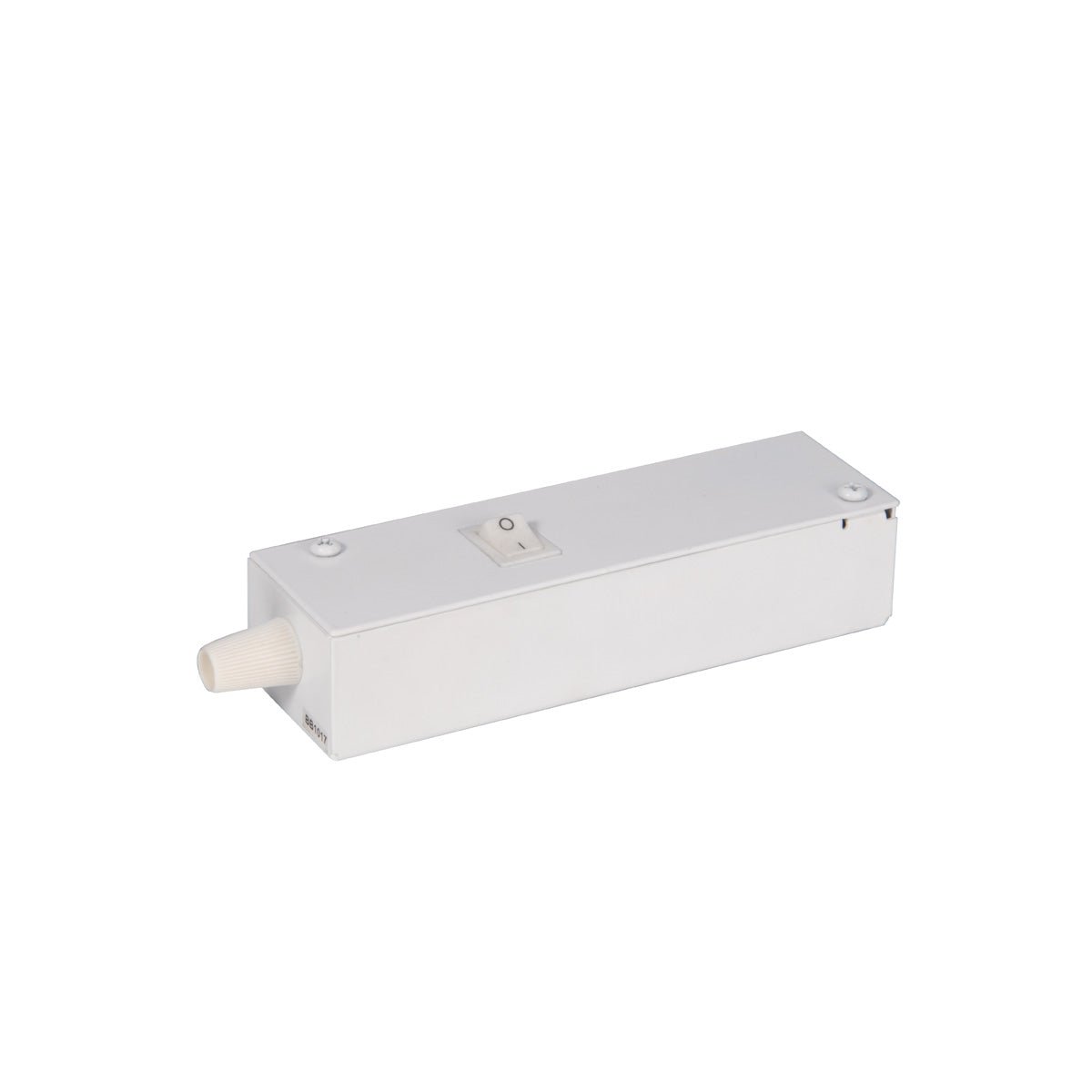

LED-TC-B-2-WT	Low Voltage Wiring Box With Switch

Accessories

MODEL	DESCRIPTION
EN-24100-RB2-T - 60	Remote Enclosed Electronic Transformer for InvisiLED® Tape Light 120V Input 24V Output 60 Watt
EN-24100-RB2-T - 100	Remote Enclosed Electronic Transformer for InvisiLED® Tape Light 120V Input 24V Output 100 Watt
