WAC Lighting FM-05SQ 12W 5" Square Surface Mount 30K/35K
WAC Lighting FM-05SQ 12W 5" Square Surface Mount 30K/35K
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
15W 7" Square Flush Mount 30K 120V

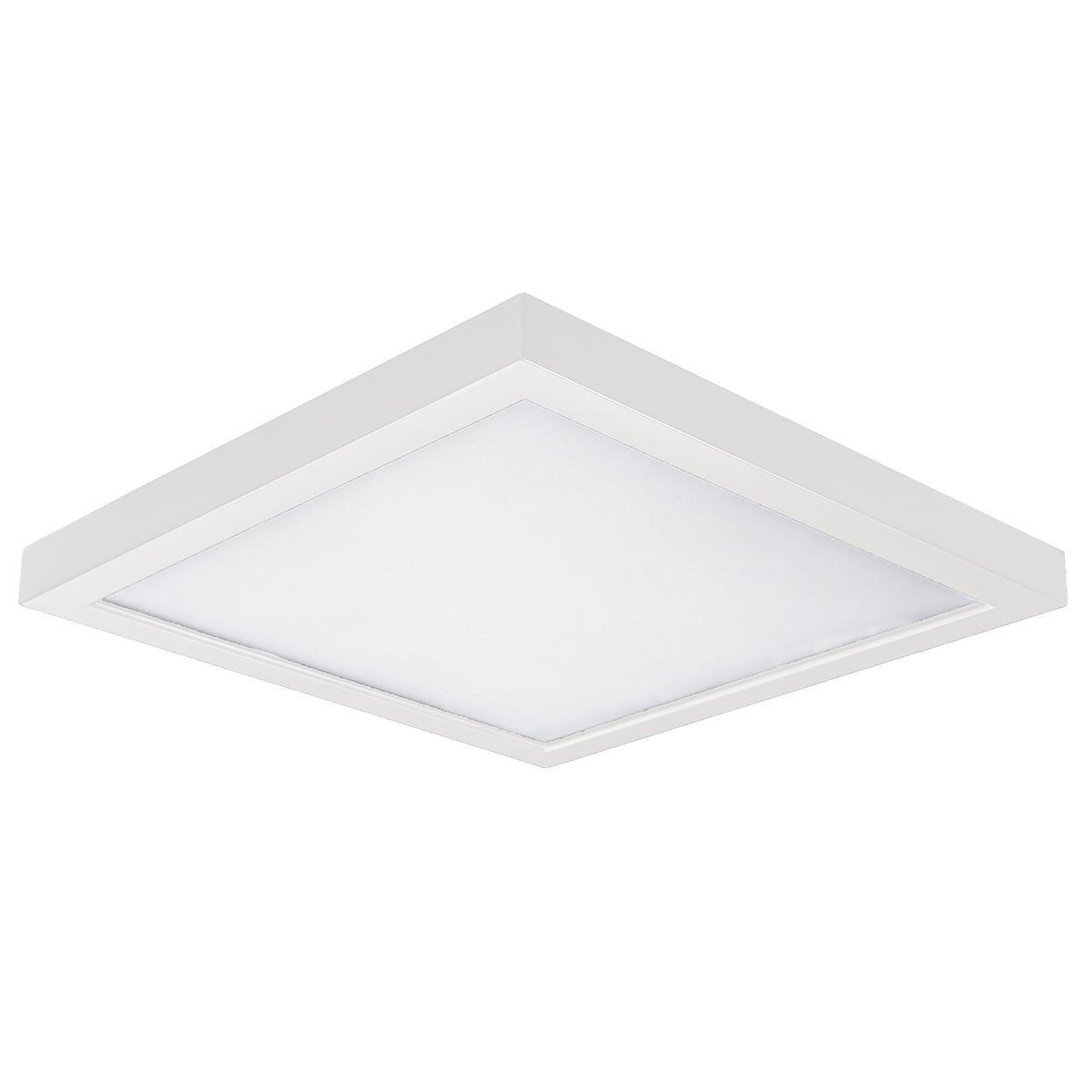

Ultra-slim flush mount that uses edge-lit technology and a translucent diffuser for uniform illumination without shadows or hotspots.
- Multiple LED array for uniform illumination
- Suitable for outdoor and coastal regions
- Dead front trim for shower applications
- Driver installed within the Junction Box, driver dimension: 2.25" Dia x 1" Deep
- Can be mounted on ceiling or wall in all orientations
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Wattage | 12W |
| Color Temp | 30K/35K |
| Lumen | 1030L |
| CRI | 90 |
| Finish | White |
| Rated Life | 50000 Hours |
| Operating Temp | -4°F to 104°F (-20°C to 40°C) |

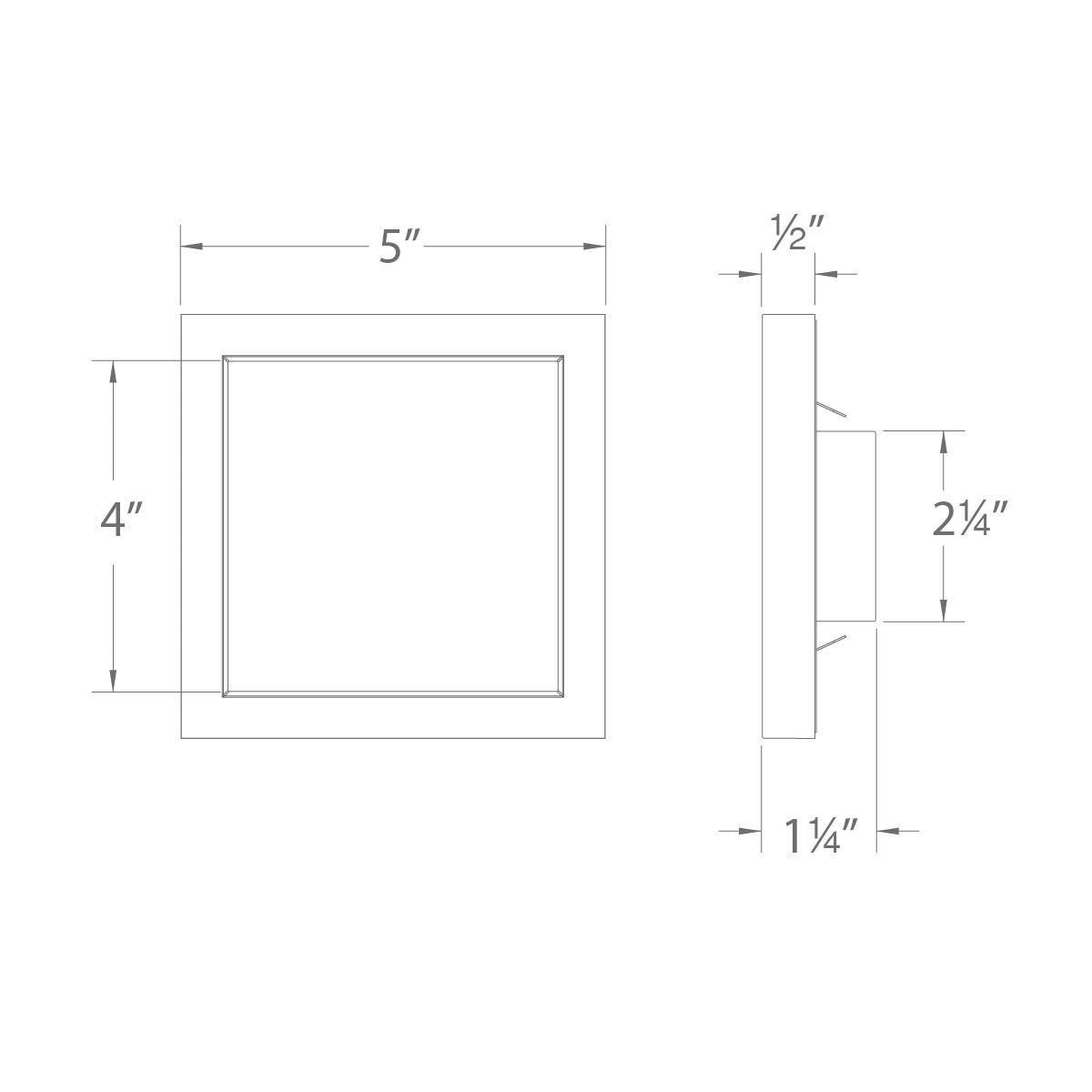

| Dimensions | ||||||
|
Additional Info
| Construction | Aluminum with translucent diffuser |
| Input | 120 VAC, 50/60Hz |
| Mounting |
Installs over a 3", 4" or 3/0-4/0 hybrid junction box, Can be mounted on ceiling or wall in all orientations |
| Dimmable | ELV: 100-5% , TRIAC: 100-5% |
| Listing |
| UL, cUL |
| Wet Location Listed |
| Damp Location Listed |
| Energy Star 2.0 |
| Title 24 JA8-2019 Compliant |
