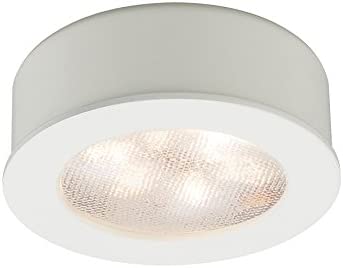

WAC Lighting HR-LED87 1 7/8" 5W LED Round Recessed Puck Lights 30K

WAC Lighting HR-LED87 1 7/8" 5W LED Round Recessed Puck Lights 30K

Regular price $56.95
Regular price $61.99 Sale price $56.95
Sale Sold out
Shipping calculated at checkout.
Style
Color
Color Temperature

5W LED Puck Light

Designed for recessed (1-7/8") or surface (2-1/4")  mounted installations, delivering strong light output with the latest in LED technology.

  • Delivered Lumens: 180lm
  • 3000K
  • CRI: 85
  • Power: 4.8W
  • Input: 24 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 70000 Hours
  • Construction: Die-cast aluminum fixture, stamped steel housing for surface mount
  • Recessed or surface mounting
  • Quick and easy installation
  • Transformer required
Spec Sheets

Spec Sheet

Installation Instructions




Info
Catalog No. Wattage Lumens Beam Spread Finish
HR-LED87-WT 5W 180 97° White

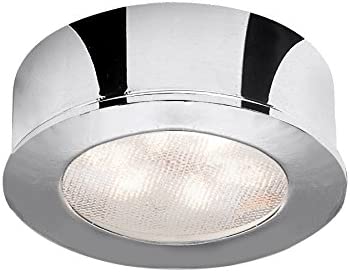

HR-LED87-CH 5W 180 97° Chrome

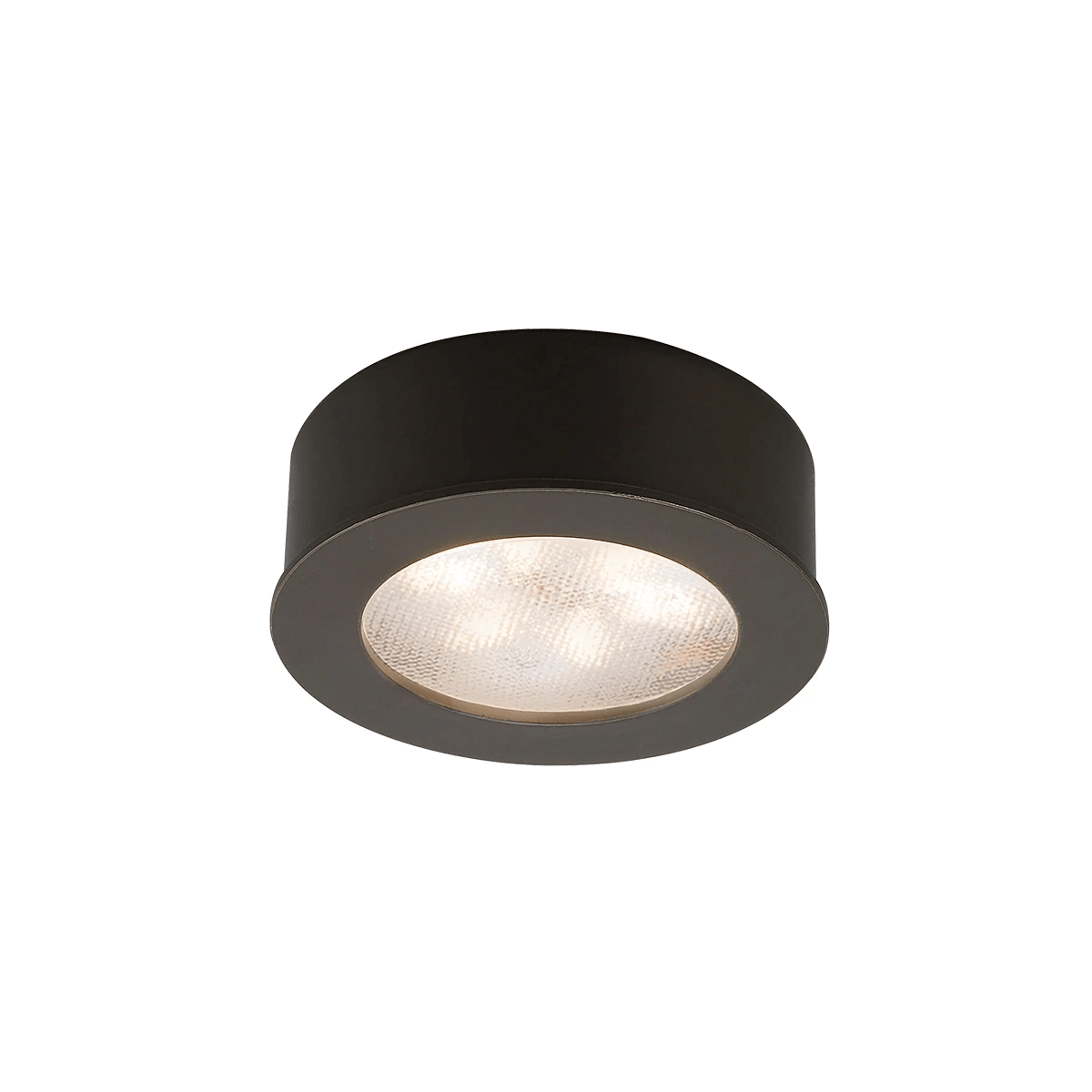

HR-LED87-DB 5W 180 97° Dark Bronze


 Mounting

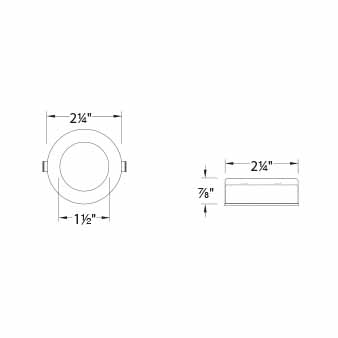

Recessed 2 1/8" cutout hole. Compression springs hold fixture firmly in place
Surface Screw housing cover to surface, compress springs and insert into cover
 Not recommended for use in ceiling



Additional Info



Construction Die-cast aluminum fixture, stamped steel housing for surface mount. Glass beam spread lens
 Wiring Includes 72" pre-installed wires that lead out through the top
Transformers Class 2, 24V remote and plug-in transformers allow for up to 20 button lights to be wired together. Use a multiple terminal block to wire up to 6 fixtures in a neat under cabinet installation without the use of open splices
Dimmable May be dimmed to 10% with an electronic low voltage (ELV) dimmer.
Listing UL & cUL Damp Location Listed
