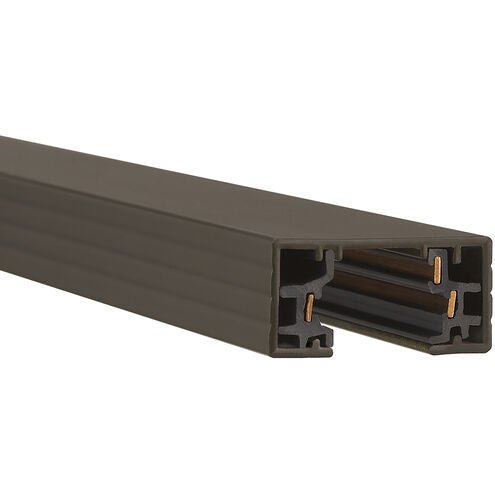

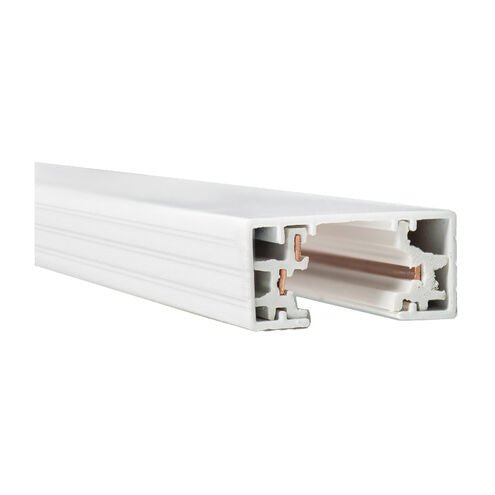

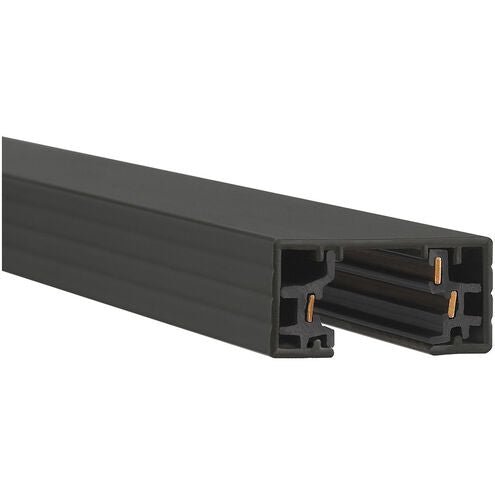

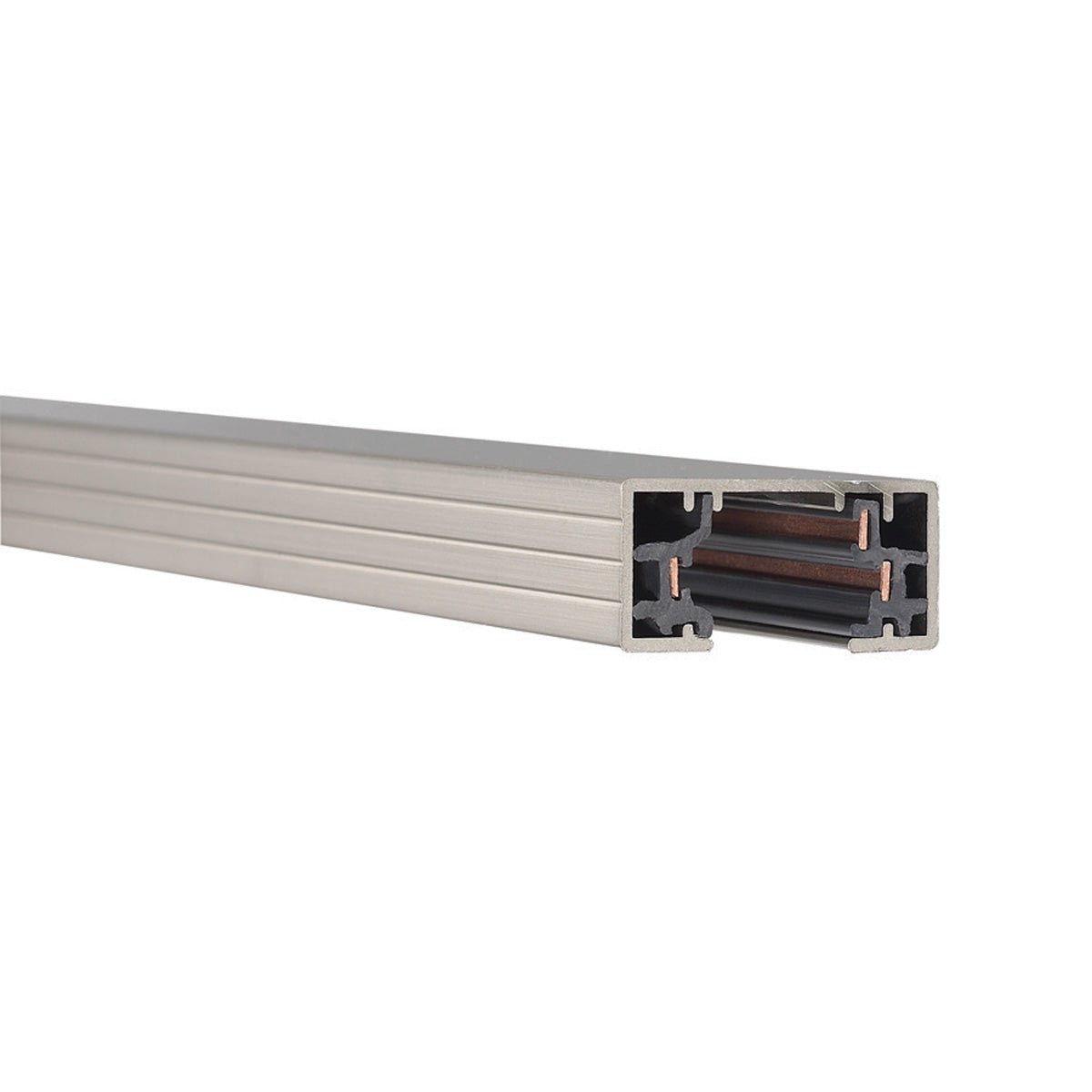

WAC Lighting HT2468 H Track 120V Single Circuit Track Section
WAC Lighting HT2468 H Track 120V Single Circuit Track Section
Regular price
$23.95
Regular price
Sale price
$23.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
H Track 120V 2/4/6/8'
Designed for nearly every application and interior environment, our extensive 120V Track collection offers hundreds of luminaires that integrate cutting edge design and aerospace detailing with designer glass and metal finishes. Versatile yet sturdy, the track systems can be surface mounted or suspended from the ceiling, liberating luminaires from the constraints of rigid mountings and enabling the lighting design to adapt to changing styles and spaces.
- May be field cut and easily installed on a variety of surfaces
- Available extension accessories
- Use compatible Quick Connect™ pendants and fixtures with each system
- End caps and mounting hardware included
- Retrofits into many popular track systems on the market today.
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Material | Aluminum extrusion with copper bus wire |
| Electrical | 20 Amps rated, 120V. It is common practice to use tracks at 80% capacity to insure compatibility with dimmers and connectors (1920W maximum). |
| Mounting | Can be installed on drywall, or suspended ceilings. |
| Standards | UL & CUL listed |
| Finish | Black, Brushed Nickel, Dark Bronze, White |
| Rated Life | 50000 Hours |
| Operating Temp | -4°F to 104°F (-20°C to 40°C) |

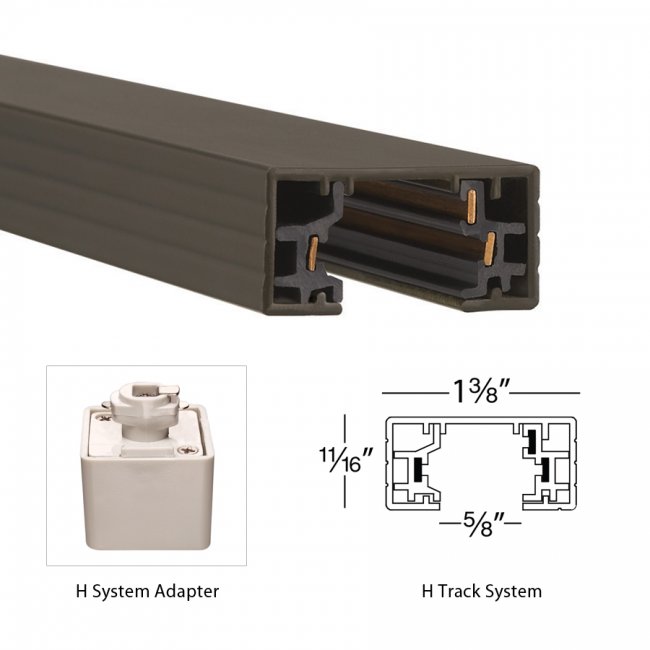

| Dimensions | ||||||
|
