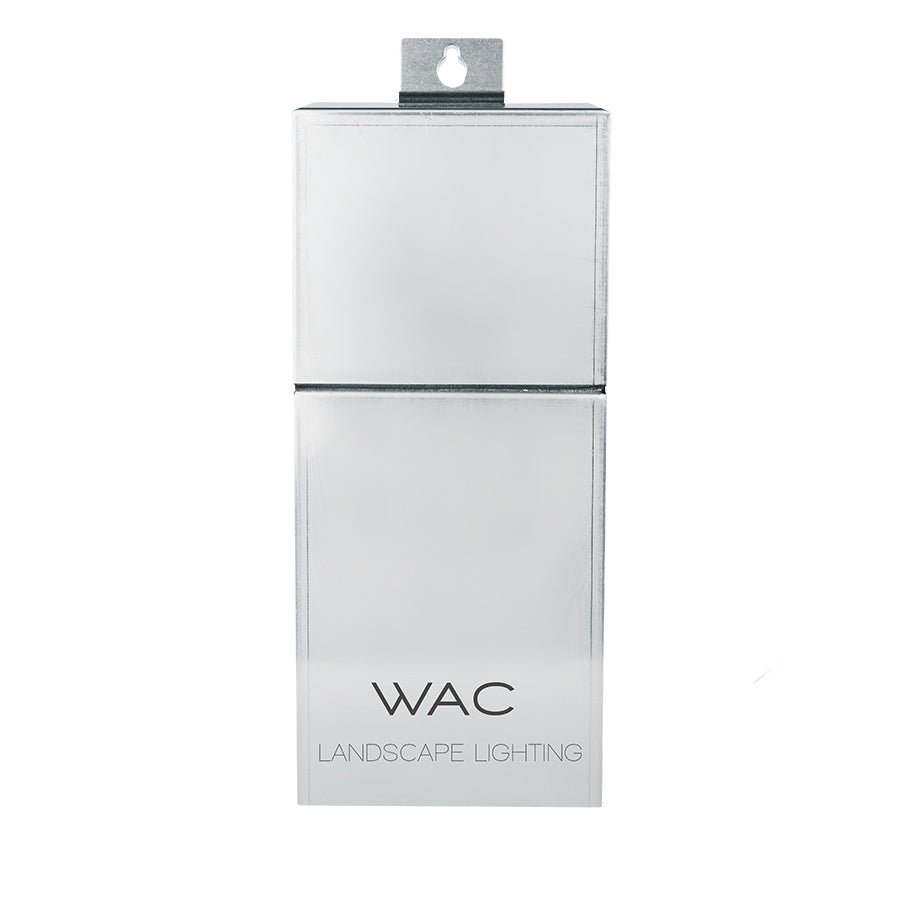

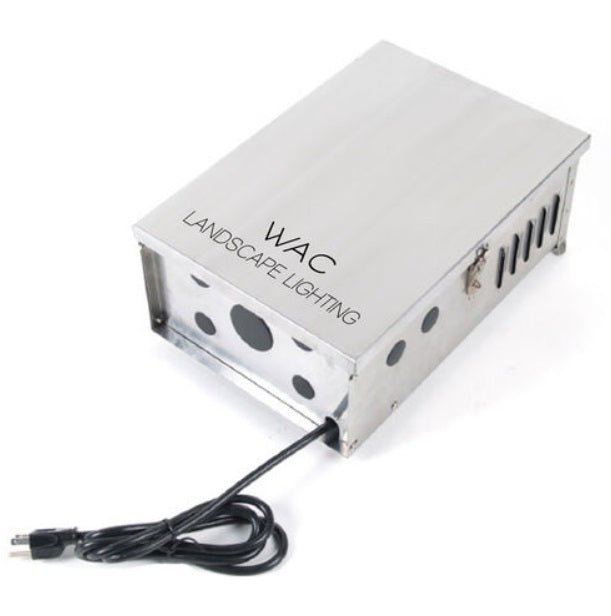

WAC Lighting TRN-SS 12V Landscape Lighting Magnetic Transformer
WAC Lighting TRN-SS 12V Landscape Lighting Magnetic Transformer
Regular price
$242.95
Regular price
Sale price
$242.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
75/150/300/600W 12V Magnetic Power Supply
Design the perfect outdoor 12V lighting and rest assured that you are covered with these power supplies. They come in 75W, 150W, 300W, and 600W Loads
- Input: 120 VAC, 50/60Hz
- Construction: Stainless steel

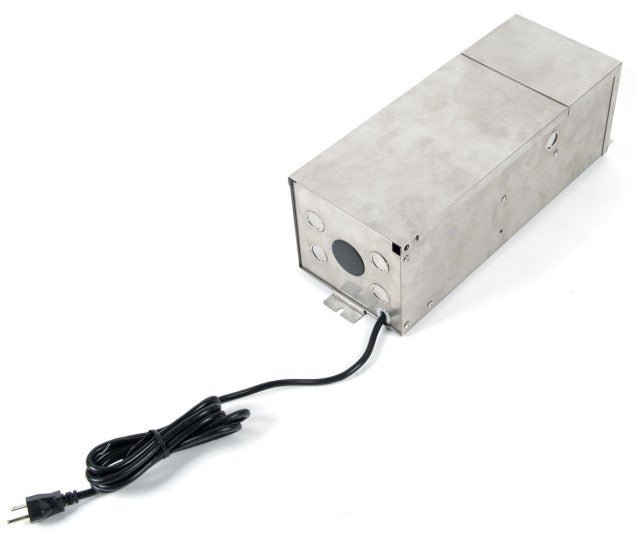

- Outdoor rated stainless steel transformer contains an outdoor rated 3-prong plug for power

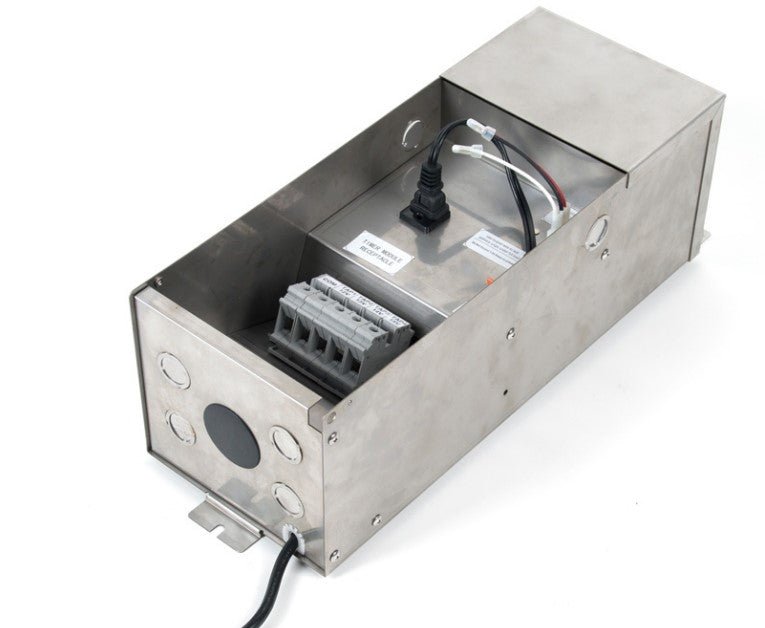

- Knock outs for power and photosensor connections
- 3-prong outlet for timer
- Taps for 12V, 13V, 14V and 15V
- 6' lead input wire, except for the 600W which comes with a 5' lead wire
- UL 1838 Listed
- MLV Dimming capable, dimming dependent upon fixture type
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Catalog No. | Wattage | Input Voltage | Finish |
|---|---|---|---|
| 9075-TRN-SS | 75W | 120V | Stainless Steel |
| 9150-TRN-SS | 150W | 120V | Stainless Steel |
| 9300-TRN-SS | 300W |
120V | Stainless Steel |
| 9600-TRN-SS | 600W |
120V |
Stainless Steel |
Additional Info
| Wattage | 75, 150, 300, 600 |
| L70 Lifespan | 70,000 |
| Mounting | Outdoor rated |
| Dimming |
MLV dimmable with remote MLV dimmer |
| Finnish | Stainless Steel |
| Material | Stainless Steel |
