American Lighting

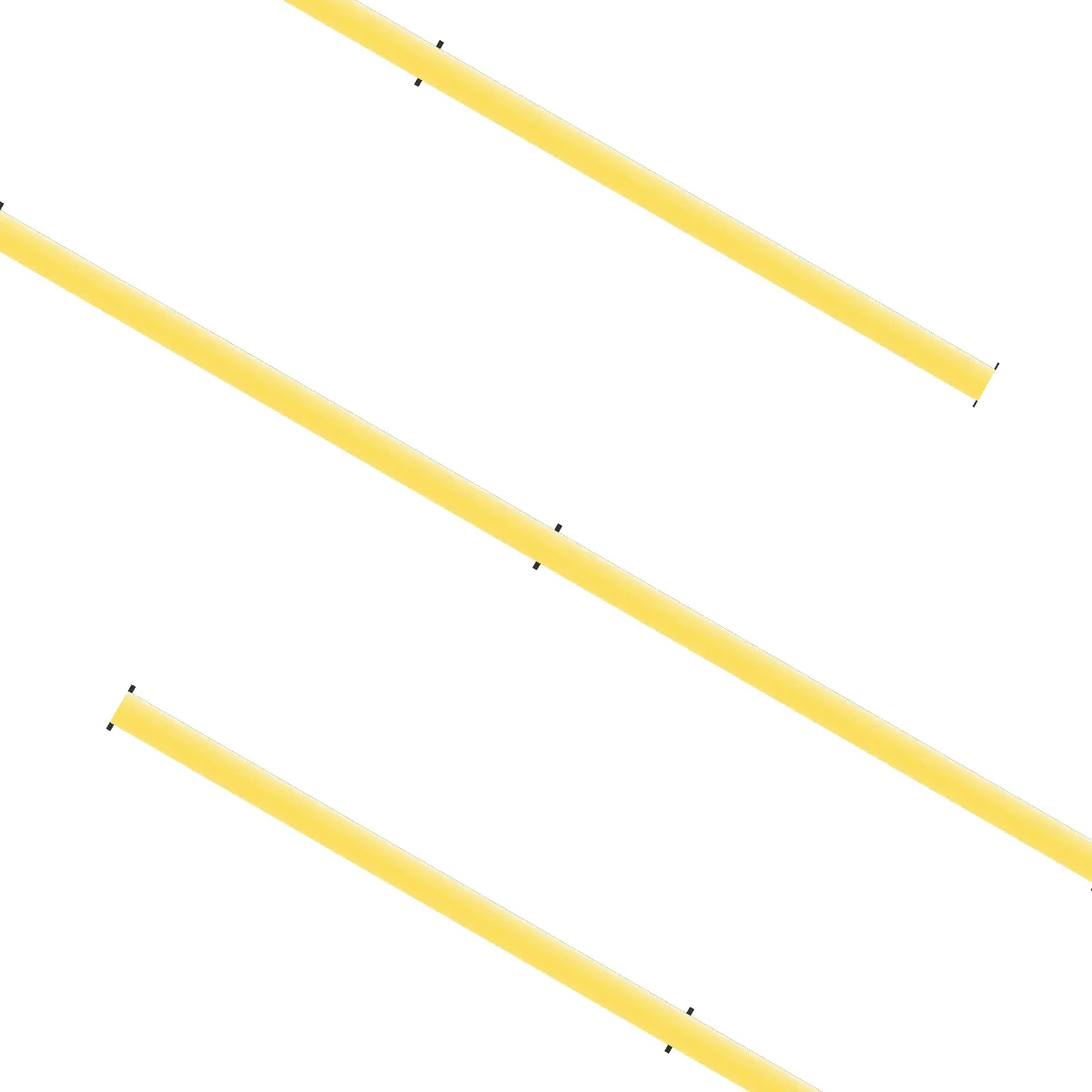

American Lighting TL4MM-COB 16FT 2.4W/FT 24V LED 4MM Tape Light

American Lighting TL4MM-COB 16FT 2.4W/FT 24V LED 4MM Tape Light

Regular price $133.47
Regular price Sale price $133.47
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage
Quantity

Trulux 4MM COB Tape Light

4MM COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

  • Seamless COB design in ultra small 4mm profile that eliminates virtually all LED dotting
  • Available in 2700K, 3000K, and 4000K
  • 90+ color rendering index
  • Lumen output ranging from 210Lm to 240Lm per foot
  • Cuttable every 1.97” with 16.4ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • Available in IP54 coated
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life
  • Suitable for use in closets when used in an enclosed mounting channel and installed in accordance with NFPA 70, NEC section 410.16 (B)(3) and 410.16 (D)(1)(Exception)
    16.4ft Reels (IP54) Include: 6ft lead, 6ft tail6ft lead, 6ft tail


    Spec Sheet

    Spec Sheet

    Installation Instructions



    Info

    Dimensions
    Weight 1.50 LBs
    Length 196.80"
    Width 0.15" (4mm)
    Light Source
    Delivered Lumens 240
    Dimmable TRIAC / ELV (5-100%
    Expected Life Span (Hours) 50,000
    Light Source LED
    Wattage 2.43 W/FT
    Mounting/Installation
    Interior/Exterior Interior
    Location Rating IP54 Coated
    Cuttable Every 1.97" (50MM)
    Photometrics
    Color Rendering Index 96
    Kelvin Temperature 27K/30K/40K
    Additional Info
    PART NUMBER LENGTH CCT CRI WATTAGE LUMENS CUTTABLE WIDTH
    TL4MM-COB-27K-16 16.4ft 2700K 96+ 2.43W/FT 210/ft 1.97" 4mm
    TL4MM-COB-30K-16 16.4ft 3000K 96+ 2.43W/FT 230/ft 1.97" 4mm
    TL4MM-COB-40K-16 16.4ft 4000K 96+ 2.43W/FT 240/ft 1.97" 4mm


    Accessories
    TL-2PWR-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 6FT POWER
    TL-2SPL-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, SPLICE
    TL-2JUMP6-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 6IN LINKING
    TL-2JUMP12-5MMCOB 2PIN 4MM/5MM COB CONNECTOR, 12IN LINKING
    TL4MM-CHAN-1M 1M ALUMINUM CHANNEL FOR 4MM/5MM TAPE LIGHT
    WIRE-15-2PIN 15ft (20/2) Wire Spool
    WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
    INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
    LVSB-2PIN In-Line Splice Terminal Block
    RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
