DiodeLED DI-24V-3D-LIN LINAIRE® Flex 3D Accessories
DiodeLED DI-24V-3D-LIN LINAIRE® Flex 3D Accessories
Couldn't load pickup availability
LINAIRE® Flex 3D Accessories
Discover the ultimate in flexible lighting design with LINAIRE® Flex 3D—a 24V wet-location tape light engineered for contractors who demand versatility without compromise. This architectural-grade fixture bends bidirectionally (top and side) to conform to any architectural vision, while its dotless diffusion delivers pristine, uniform illumination. Built tough with water-resistant construction (IP67 factory-sealed, IP65 field-cut), it performs reliably indoors and outdoors. High 90+ CRI ensures color accuracy for critical applications, and factory assembly combined with field-cuttable termination means faster installation and zero waste. At 3.2W per foot with selectable color temperature (27–40K), it's the flexible solution that adapts to your project—not the other way around.
- Bends in both directions (top and side) for maximum versatility
- Flexible, durable fixture with no visible dots
- Water resistant for indoor and outdoor use
- 90+ CRI
- Factory assembly (IP67)
- Field cuttable, free-cut termination (IP65)
Spec Sheet
Spec Sheet
Installation Instructions
Info
| Catalog No. | Description |
|---|---|

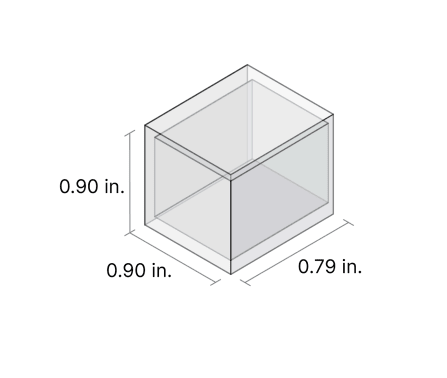

| DI-LIN-3D-DEC | End Caps (2) |

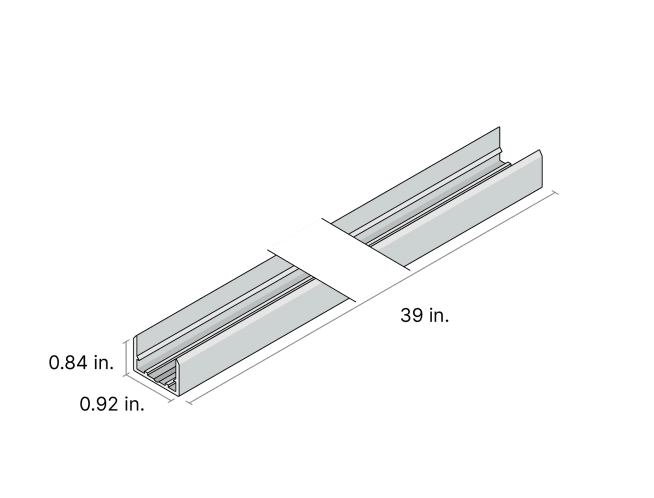

| DI-LIN-3D-MTCH-39 | Mounting Channel 39" |

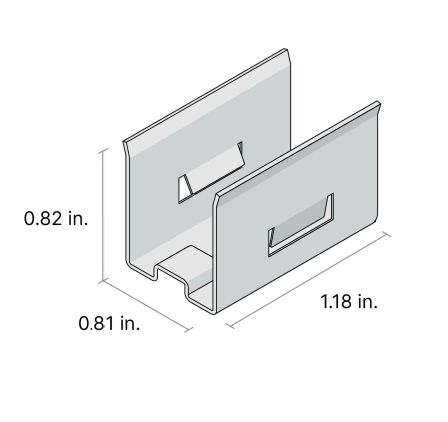

| DI-LIN-3D-MTCL-2 | Mounting Clips (2) |

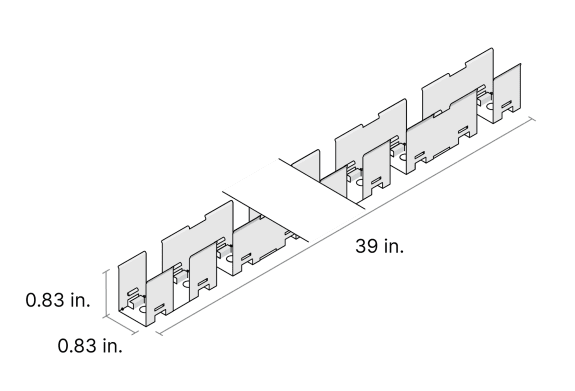

| DI-LIN-3D-SPINE-39 | Bendable Mounting Channel 39" |
Accessories
| Catalog No. | Reel Length | L/Foot | W/Foot | CRI | Color Temp. | Max. Run |
|---|---|---|---|---|---|---|
| DI-24V-3D-LIN-27-032 | 32'8" | 153 | 3.2W/FT | 90+ | 27K | 32'8" |
| DI-24V-3D-LIN-30-016 | 32'8" | 153 | 3.2W/FT | 90+ | 30K | 32'8" |
| DI-24V-3D-LIN-35-016 | 32'8" | 168 | 3.2W/FT | 90+ | 35K | 32'8" |
| DI-24V-3D-LIN-40-016 | 32'8" | 166 | 3.2W/FT | 90+ | 40K | 32'8" |
