GM Lighting 24VDC SlimEdge™ Modular Architectural Lightbar

GM Lighting 24VDC SlimEdge™ Modular Architectural Lightbar

$42.30
$42.30
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Color

24VDC SlimEdge™ Modular Architectural Lightbar

 Click here for Accessories

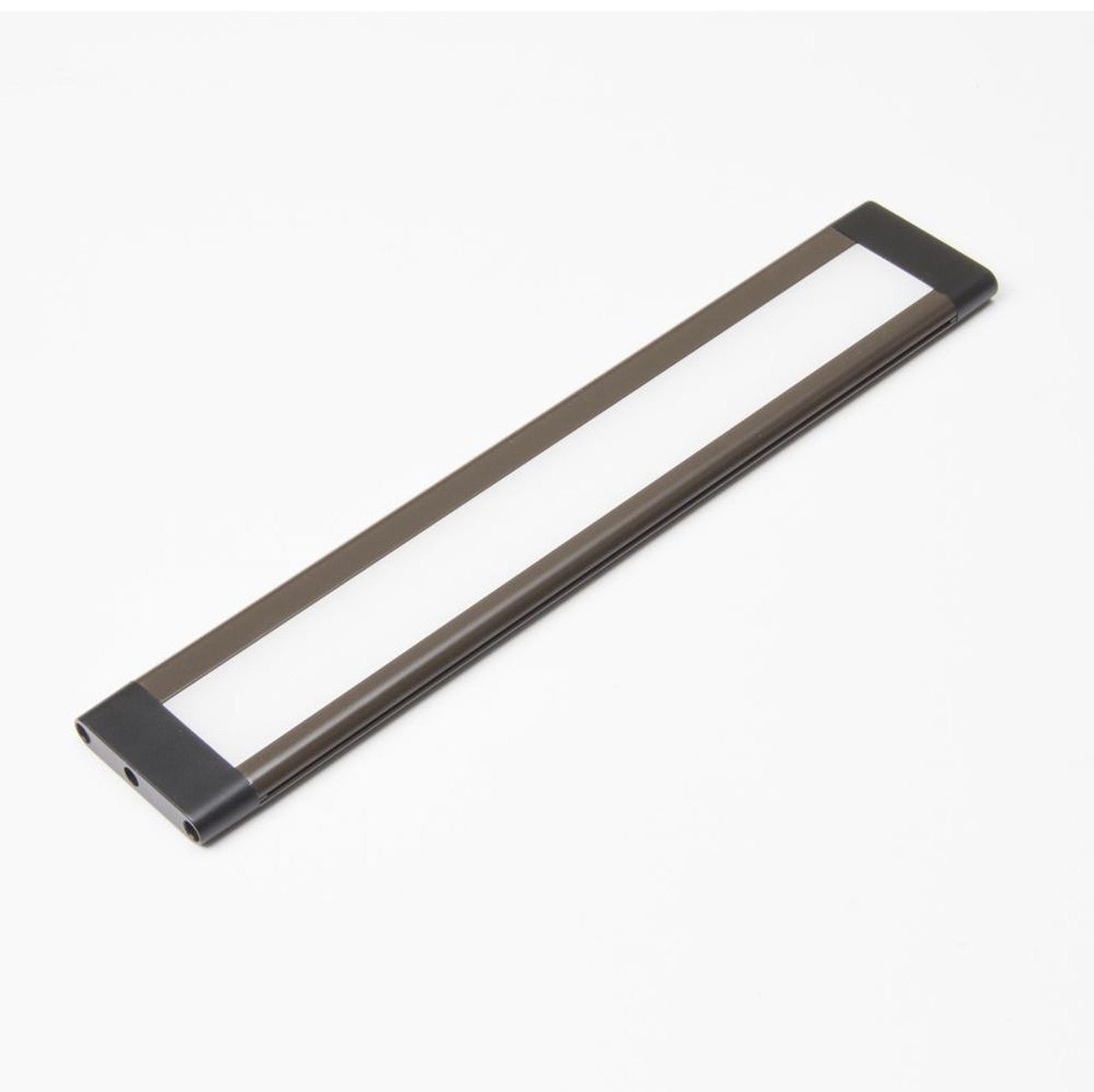

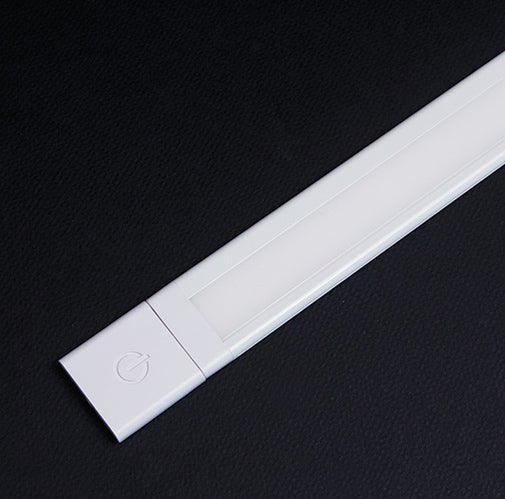

SlimEdge™ is a 24VDC architectural LED linear thin lightbar that is the next evolution in undercabinet lighting.  Using high-tech Edgelite technology – SlimEdge creates an even luminance while producing a gentle, soft light.  90+ CRI optics that present no diode imaging on polished surfaces.  Available in 8”, 16”, 24” or 32” in white or bronze.  Utilizing the wide array of connectors, SlimEdge can be configured to adapt to virtually any application.

  • Rigid modular edge lit lightbar
  • 0-90° with optional mounting clip
  • Mounting clips and screws included
  • Units join securely together with modular connectors
  • Class 2 Maximum run on a given lead is 16′
  • 24VDC remote power supply required
  • Rated at 5W per foot
  • Edge-lit technology results in diode-free imaging on polished surfaces
  • 90+ CRI
  • 2700K, 3000K
  • UL
  • 5 year warranty

.

                Spec Sheet

                Spec Sheet

                Power Supply Spec Sheet

                Installation Instructions


                Info
                Catalog No. Length Lumens/Fixture Color Temp.* Finish
                EDGE-8-27-W 8″ 150 2700K White
                EDGE-16-27-W 16″ 325 2700K White
                EDGE-24-27-W 24″ 550 2700K White
                EDGE-32-27-W 32″ 750 2700K White
                EDGE-8-27-BZ 8″ 150 2700K Bronze
                EDGE-16-27-BZ 16″ 325 2700K Bronze
                EDGE-24-27-BZ 24″ 550 2700K Bronze
                EDGE-32-27-BZ 32″ 750 2700K Bronze
                EDGE-8-30-W 8″ 150 3000K White
                EDGE-16-30-W 16″ 325 3000K White
                EDGE-24-30-W 24″ 550 3000K White
                EDGE-32-30-W 32″ 750 3000K White
                EDGE-8-30-BZ 8″ 150 3000K Bronze
                EDGE-16-30-BZ 16″ 325 3000K Bronze
                EDGE-24-30-BZ 24″ 550 3000K Bronze
                EDGE-32-30-BZ 32″ 750 3000K Bronze
                * Kelvin Temp. (color) ±200K
                Includes (2) mounting clips with screws, (1) lightbar to power supply connector (GMC-PS-24) and (1) rigid bar to bar connector (EDGE-BB-1) included with each lightbar.
                NOTE:  White bar is supplied with white connectors.  Bronze bar is supplied with black connectors.

                Accessories
                Catalog No. Description
                DPPS-24W-24V 24 Watt 24 Volt Plug In Power Supply-White
                DPPS-36-24V 36 Watt 24 Volt Plug In Power Supply-White
                EDGE-BB-1-W (BK) SlimEdge to SlimEdge bar to bar connector – White or Black
                EDGE-90-W (BK) SlimEdge to SlimEdge 90° connector – White or Black
                EDGE-IC-W (BK)
                SlimEdge to SlimEdge inside corner connector – White or Black
                GMC-MM-3-W 3" Male to Male Cable Connector- White
                GMC-MM-6-W 6" Male to Male Cable Connector- White
                GMC-MM-12-W 12" Male to Male Cable Connector - White
                GMC-MM-24-W 24" Male to Male Cable Connector - White
                GMC-MM-39-W 39" Male to Male Cable Connector - White
                GMC-MM-60-W 60" Male to Male Cable Connector - White
                GMC-FF-3-W 3" Female to Female Cable Connector - White
                GMC-PS-24-W 24" Lightbar to Power Connector - White
                GMC-PS-48-W 48" Lightbar to Power Connector - White
                GMC-PS-60-W 60" Lightbar to Power Connector - White
