GM Lighting LARC6 LED Undercabinet Lightbar Connectors

24VDC LARC6 Dimmable LED Undercabinet Lightbar Connectors

Click Here for the LARC6 Lightbar

Welcome to the next generation of undercabinet lighting. GM Lighting's patented LARC6 is a sleek, refined and low profile fixture that features plug-in service modules, inline dimming, as well as a wide variety of flexible connectors to link lightbar to lighter and lightbar to power supply.

Superior performance
300 lumens per foot 5W per foot
24VDC operation
3000K warm white
Dimmable*
Takes only 2 screws to mount
Adjustable to 45° or 90° for tight beam control
Patented high performance LED technology
ETL listed

NOTE: To dim the LARC6 using the optional rigid inline touch dimmer, please use only our DPPS Series plug-in power supplies.

Spec Sheet

Power Supply Spec Sheet

Installation Instructions

Info

Catalog No.	Description
LARC6-BB-1-W	Rigid Bar to Bar Connector - White

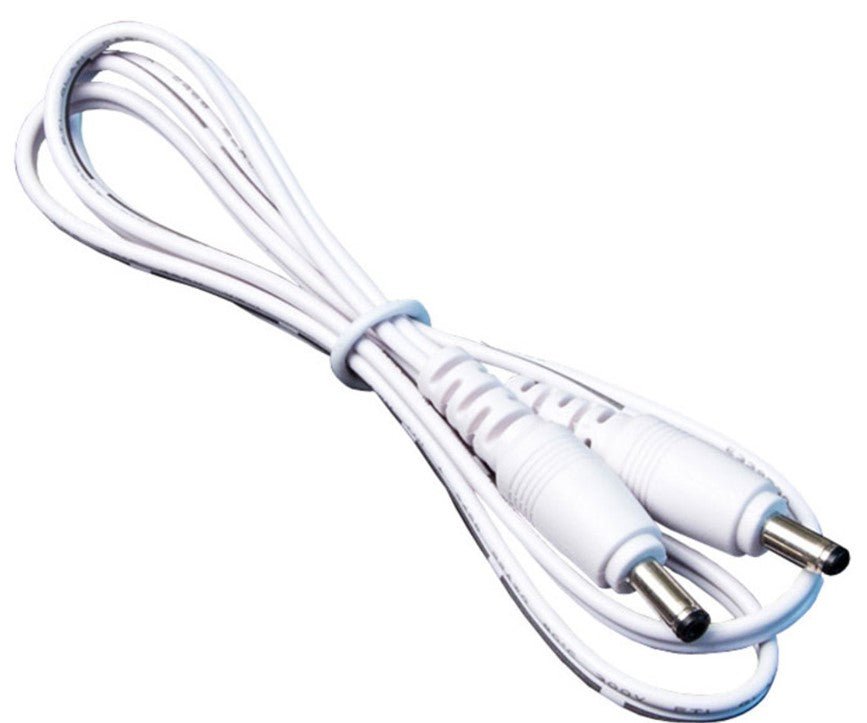

GMC-MM-3-W	3" Male to Male Cable Connector- White
GMC-MM-6-W	6" Male to Male Cable Connector- White
GMC-MM-12-W	12" Male to Male Cable Connector - White
GMC-MM-24-W	24" Male to Male Cable Connector - White
GMC-MM-39-W	39" Male to Male Cable Connector - White
GMC-MM-60-W	60" Male to Male Cable Connector - White
GMC-FF-3-W	3" Female to Female Cable Connector - White
GMC-PS-24-W	24" Lightbar to Power Connector - White
GMC-PS-48-W	48" Lightbar to Power Connector - White
GMC-PS-60-W	60" Lightbar to Power Connector - White
LARC6-TD-W	Rigid Inline Touch Dimmer - White
LARC6-MS-W	Rigid Inline Master Power Switch - White
LARC6-OS	Rigid inline Occupancy Sensor-White
GMSB-W	Splice Box - White - 2"L x 1"W x 5/8"D
GMSB-B	Splice Box - Black - 2"L x 1"W x 5/8"D
