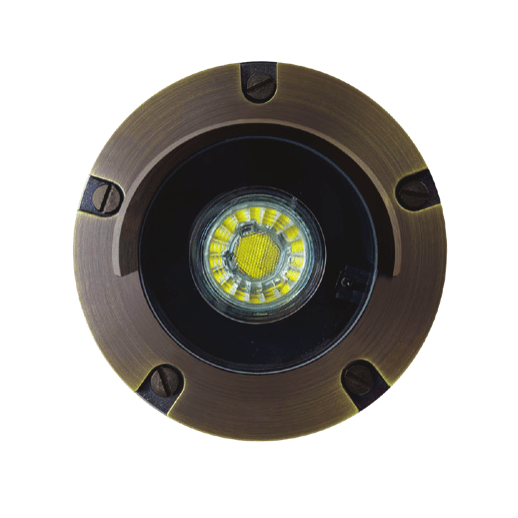

GM Lighting ILS-IG100 Series 5" 12V In-Ground Well Light
GM Lighting ILS-IG100 Series 5" 12V In-Ground Well Light
Regular price
$99.00
Regular price
Sale price
$99.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
In-Ground Light

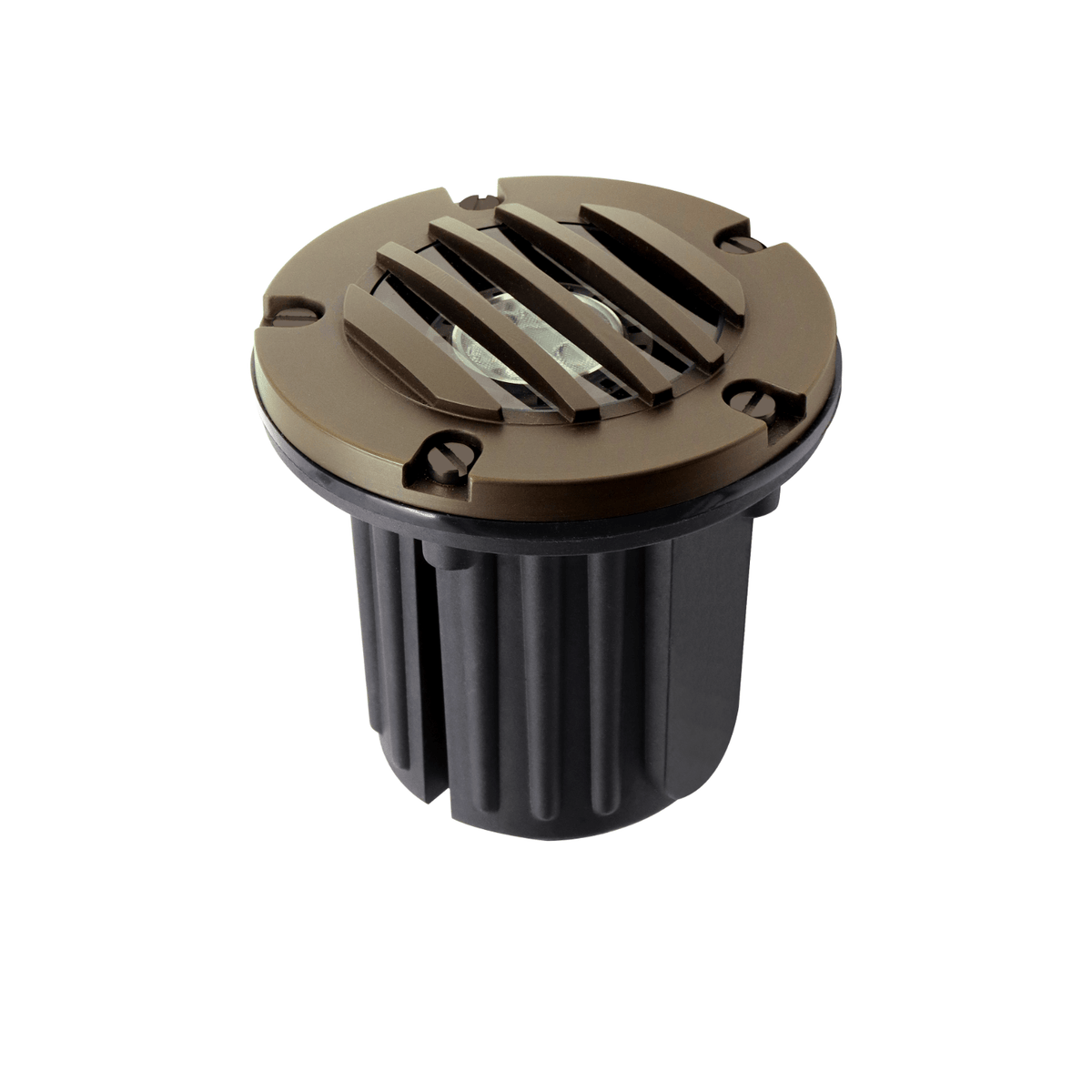

The Irradiar In-Ground Lights are a compact 5" fixture with heavy-duty die-cast brass cover plates and screws, built for demanding outdoor use. Choose from eight cover styles, including open, shielded and multi-directional turrets, to accent trees, columns, walls and architectural details. They use MR16 LED lamps (not included) on an adjustable gimbal for beam aiming.
- Compact 5" diameter in-ground fixture
- Heavy-duty die-cast brass cover plates and screws
- Composite bottom housing with brass inserts
- Eight cover styles
- Adjustable MR16 lamp positioning on gimbal, 8W max (lamp not included)
- Beam spreads 15° / 30° / 45° / 60° / 100° (by lamp)
- Compatible with white and color MR16 lamps
- 12V nominal, 9-17VAC/DC
- IP66, cETLus listed
- 6ft SJTW cable, 18AWG
- 5 year warranty
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Catalog No. | Cover Style | Diameter | Max Lamp | Finish |
|---|---|---|---|---|

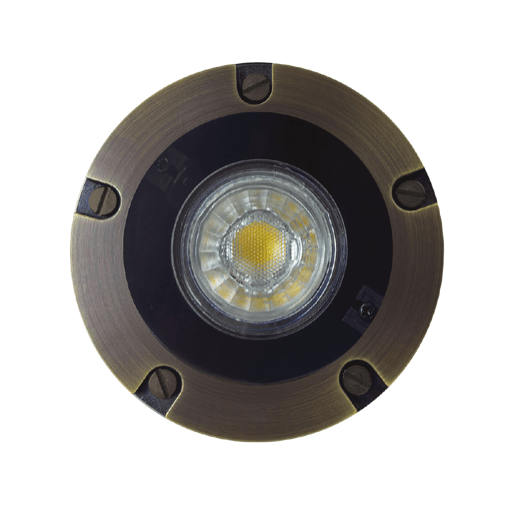

| ILS-IG100-AB | Open | 5" | MR16, 8W | Antique Brass |

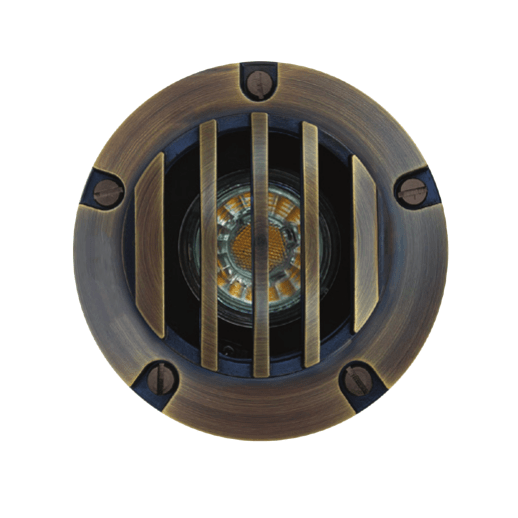

| ILS-IG110-AB | Grate | 5" | MR16, 8W | Antique Brass |

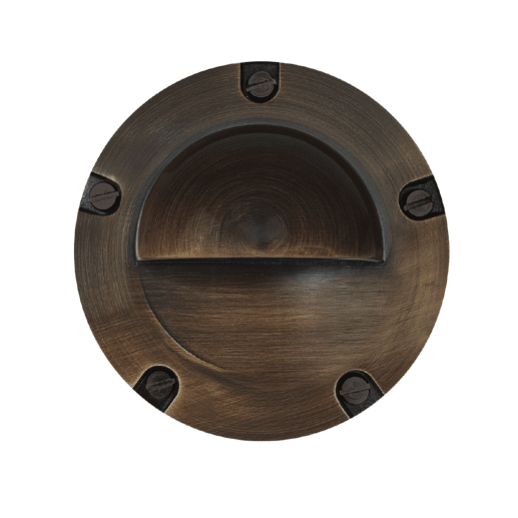

| ILS-IG120-AB | Half Dome | 5" | MR16, 8W | Antique Brass |
| ILS-IG130-AB | Half Shield | 5" | MR16, 8W | Antique Brass |

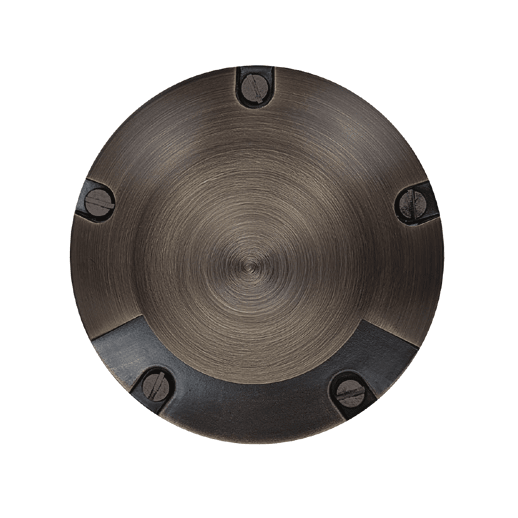

| ILS-IG141-AB | 1-Way Turret | 5" | MR16, 8W | Antique Brass |

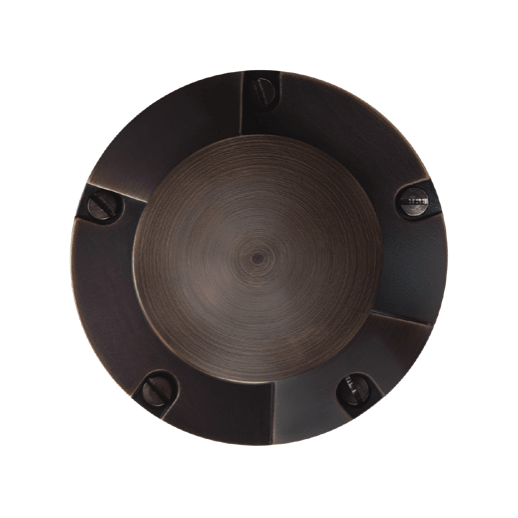

| ILS-IG142-AB | 2-Way Turret | 5" | MR16, 8W | Antique Brass |

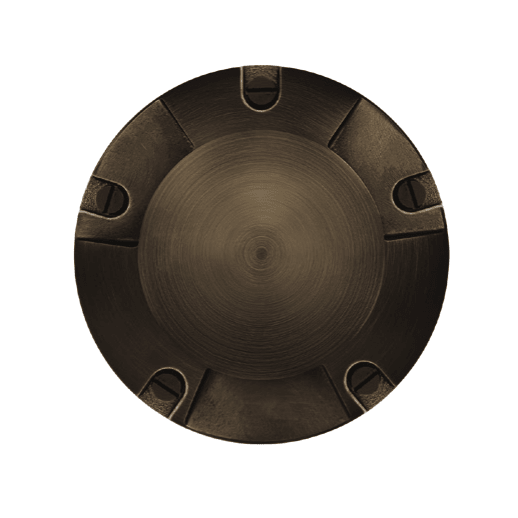

| ILS-IG143-AB | 3-Way Turret | 5" | MR16, 8W | Antique Brass |

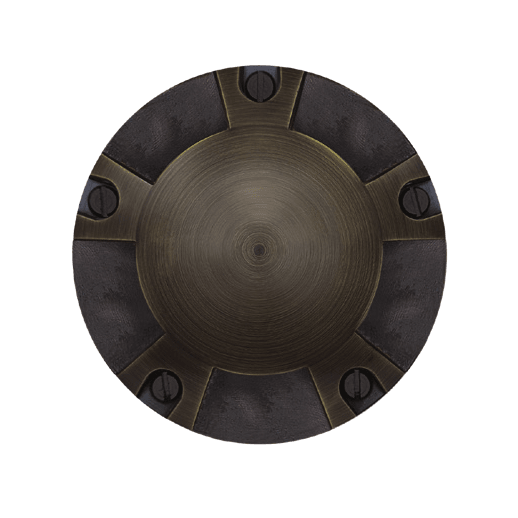

| ILS-IG145-AB | 5-Way Turret | 5" | MR16, 8W | Antique Brass |
Accessories
| Compatible MR16 Lamp | Type | CCT | Beam Angles |
|---|---|---|---|
| GM Lighting 3/5/7W MR16 Water Resistant LED Bulbs | MR16 white, 3W / 5W / 7W | 2700K / 3000K / 4000K | 15° / 30° / 45° / 60° / 100° |
| GM Lighting 6W MR16 Water Resistant LED Bulbs, Colors | MR16 color, 6W (Amber, Blue, Green, Red) | Color | 45° / 60° |
Lamps are not included. Maximum lamp wattage is 8W. Fixtures run on a 12V nominal power supply.
