GM Lighting
GM Lighting ILS-WM202 2.4" 12V Up/Down Wall Light
GM Lighting ILS-WM202 2.4" 12V Up/Down Wall Light
Regular price
$171.00
Regular price
Sale price
$171.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Up/Down Wall Light

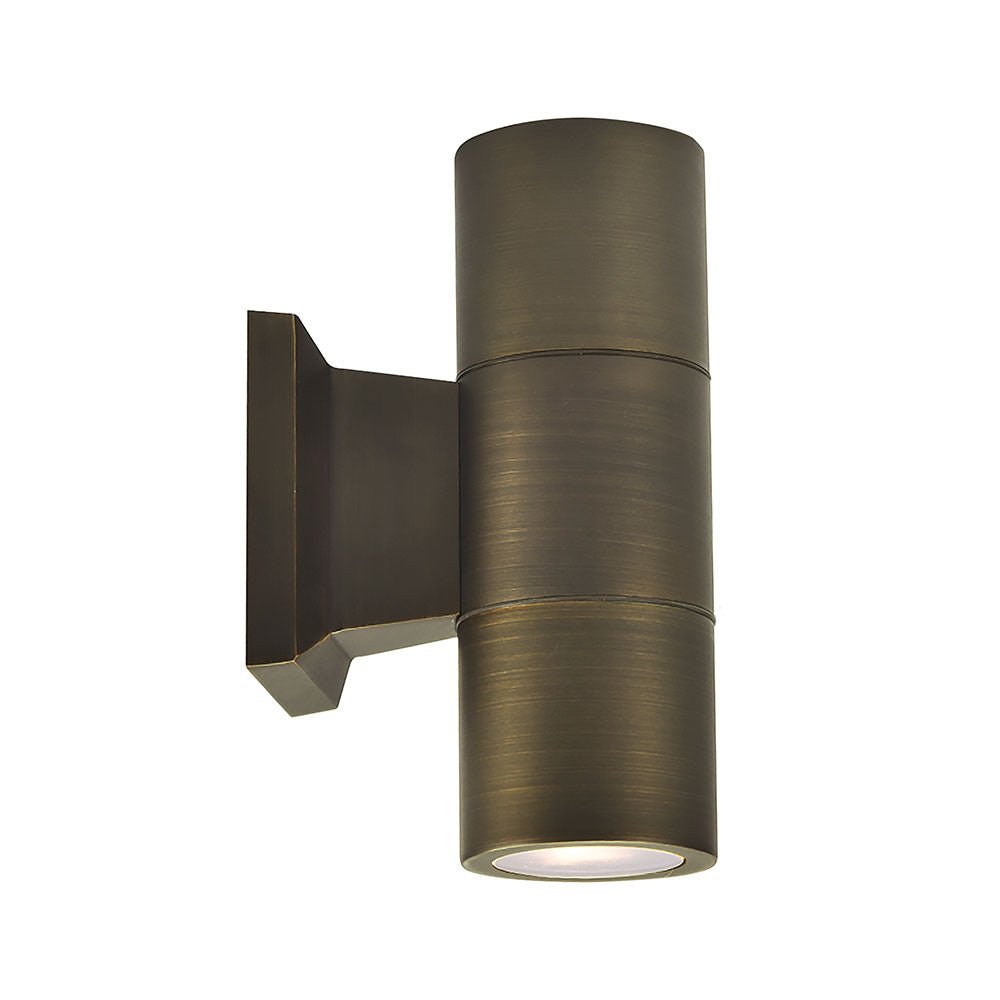

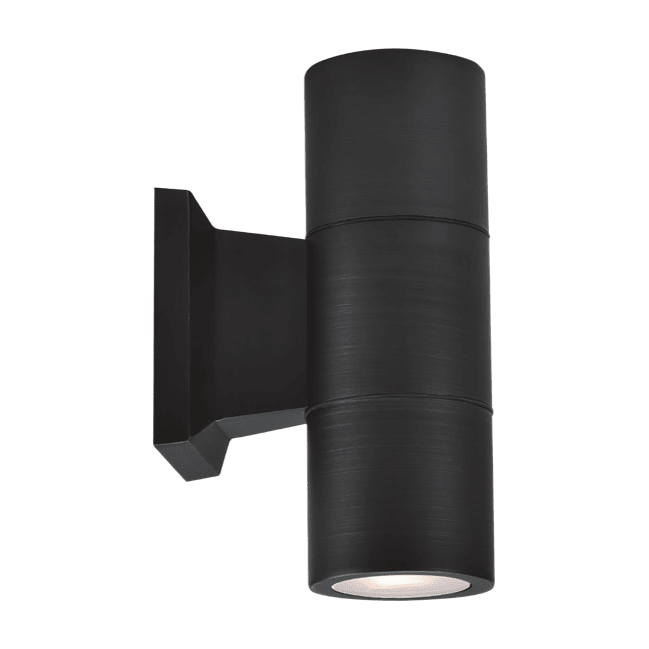

The Irradiar Up/Down Wall Light gives directional uplight and downlight from a compact 2.4" die-cast brass housing, in Antique Brass or Matte Black. Clear flat glass lenses give a defined beam. It takes two MR16 LED lamps (not included) for accenting walls, columns and facades.
- Dual-direction MR16 up/down wall light
- 2.4" diameter die-cast brass housing
- Clear flat glass lenses
- Antique Brass or Matte Black finish
- Two MR16 LED lamps, 8W max each (not included)
- Beam spreads 15° / 30° / 45° / 60° / 100° (by lamp)
- 12V nominal, IP65, cETLus listed
- 15ft direct burial cable, 18AWG
- 10 year warranty
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Catalog No. | Diameter | Max Lamp | Cable | Finish |
|---|---|---|---|---|
| ILS-WM202-AB | 2.4" | 2 x MR16, 8W | 15ft 18AWG | Antique Brass |
| ILS-WM202-BK | 2.4" | 2 x MR16, 8W | 15ft 18AWG | Matte Black |
Accessories
| Compatible MR16 Lamp | Type | CCT | Beam Angles |
|---|---|---|---|
| GM Lighting 3/5/7W MR16 Water Resistant LED Bulbs | MR16 white, 3W / 5W / 7W | 2700K / 3000K / 4000K | 15° / 30° / 45° / 60° |
| GM Lighting 6W MR16 Water Resistant LED Bulbs, Colors | MR16 color, 6W (Amber, Blue, Green, Red) | Color | 45° / 60° |
Takes two MR16 lamps, 8W max each (not included). Fixtures run on a 12V nominal power supply.
