GM Lighting LARC6 LED Undercabinet Lightbar 30K
GM Lighting LARC6 LED Undercabinet Lightbar 30K
Regular price
$38.70
Regular price
Sale price
$38.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

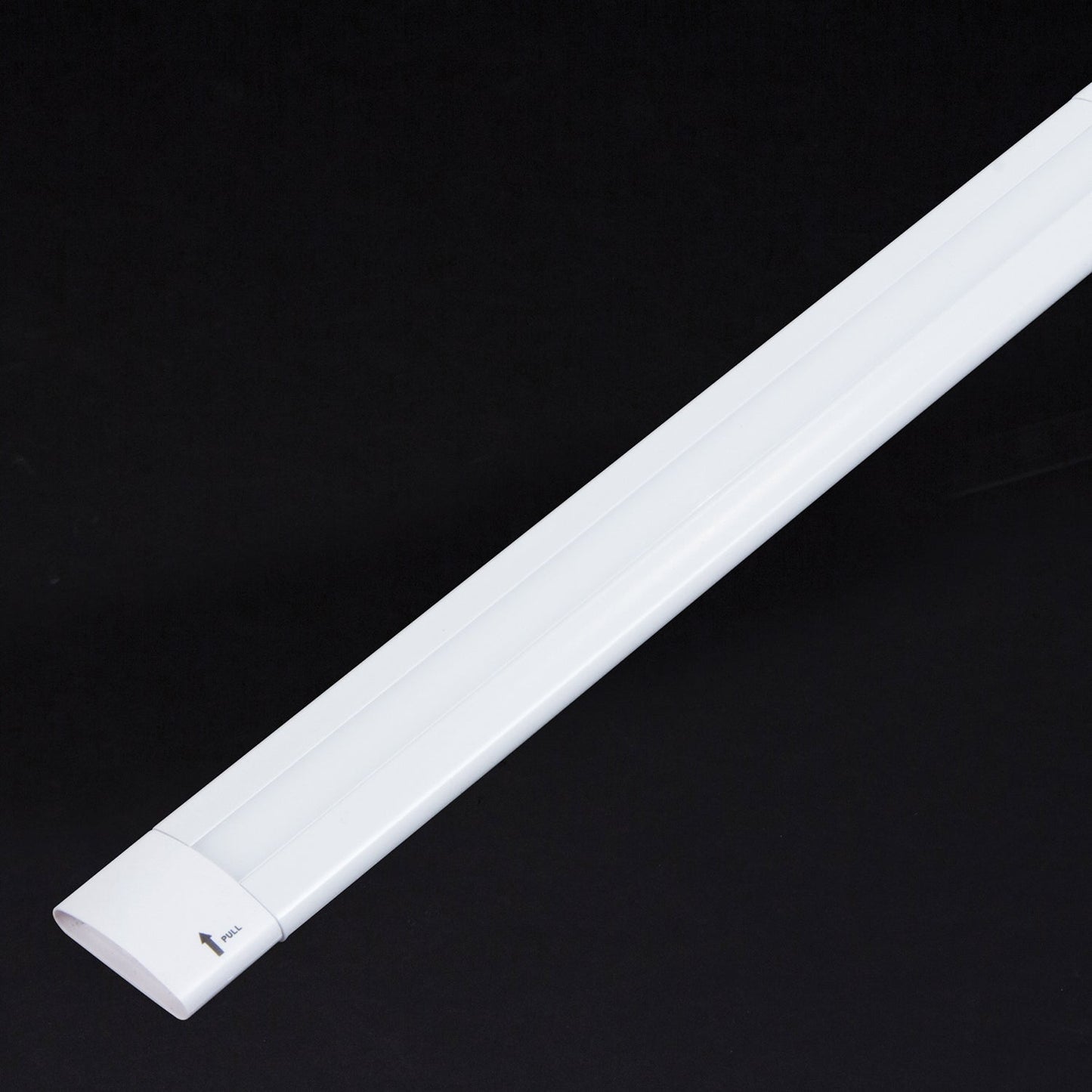

24VDC LARC6 Dimmable LED Undercabinet White Lightbar
Welcome to the next generation of undercabinet lighting. GM Lighting's patented LARC6 is a sleek, refined and low profile fixture that features plug-in service modules, inline dimming, as well as a wide variety of flexible connectors to link lightbar to lighter and lightbar to power supply.
- Superior performance
- 300 lumens per foot 5W per foot
- 24VDC operation
- 3000K warm white
- Dimmable*
- Takes only 2 screws to mount

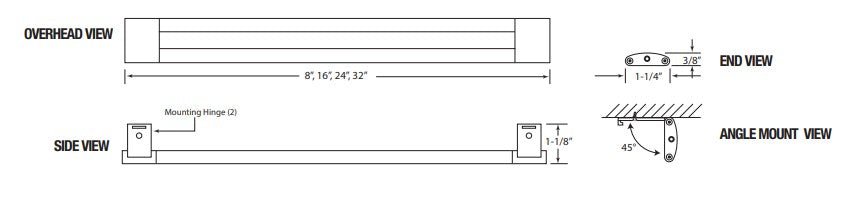

- Adjustable to 45° or 90° for tight beam control
- Patented high performance LED technology
- ETL listed
NOTE: To dim the LARC6 using the optional rigid inline touch dimmer, please use only our DPPS Series plug-in power supplies.
Spec Sheet
Spec Sheet
Power Supply Spec Sheet
Installation Instructions
Connector Spec Sheet
Info
| Catalog No. | Color | Wattage | Lumens/Bar | Length | ||
|---|---|---|---|---|---|---|
| LARC6-8-WW-W | 3000K | 3W | 200 | 8" | ||
| LARC6-16-WW-W | 3000K | 6.5W | 450 | 16" | ||
| LARC6-24-WW-W | 3000K | 10W | 720 | 24" | ||
| LARC6-32-WW-W | 3000K | 13W | 1100 | 32" | ||
|
Kelvin temperature (color) ± 200K |
||||||
