GM Lighting

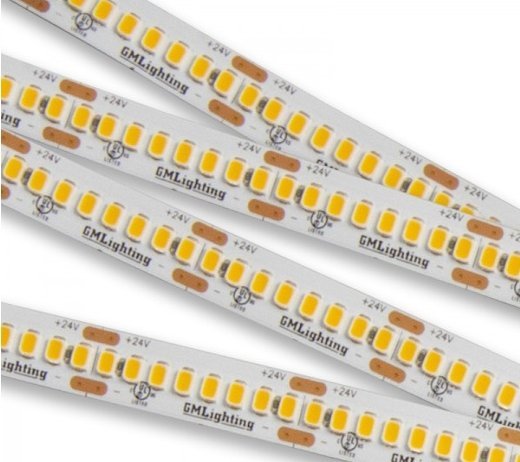

GM Lighting LTR-S-24V 5.8W 16FT LED Tape Indoor Location 27K-40K

GM Lighting LTR-S-24V 5.8W 16FT LED Tape Indoor Location 27K-40K

$207.00
$207.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

LTR-S Spec Series Indoor Location 24VDC 5.8W

Our Specification Series provides the ultimate architectural-grade option.  Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry. Choose between color temps from 2700K to 4000K.

  • 24VDC
  • 2.5W / ft. and 5.8W / ft.
  • 90+ CRI
  • 2700K, 3000K, 3500K, 4000K
  • Remote control with GM’s LUXcontrol™ App and controllers
  • Dry location
  • 240 LED's per meter (72 / ft.)
  • Cuttable every 1"
  • Custom lengths available
  • Premium diodes
  • 120° viewing angle
  • Dimmable
  • 3M adhesive back
  • Maximum run on a given lead is 32'-8" (2.5W) and 16'-4" (5.8W)
  • Includes Sure-tite connectors
  • UL certification
  • Class 2
  • Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • 5 year warranty when paired with GM power supply


Spec Sheet

5.8W LTR-P 24VDC SPEC SHEET

Info



Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
LTR-S-24V-5.8W-27K-16 16'-4" (5M) 660 5.8W 95+ 2700K 16'-4"
LTR-S-24V-5.8W-30K-16 16'-4" (5M) 720 5.8W 95+ 3000K 16'-4"
LTR-S-24V-5.8W-35K-16 16'-4" (5M) 732 5.8W 95+ 3500K 16'-4"
LTR-S-24V-5.8W-40K-16 16'-4" (5M) 750 5.8W 95+ 4000K 16'-4"
LTR-S-24V-5.8W-27K-100 100' (30M) 660 5.8W 95+ 2700K 16'-4"
LTR-S-24V-5.8W-30K-100 100' (30M) 720 5.8W 95+ 3000K 16'-4"
LTR-S-24V-5.8W-35K-100 100' (30M) 732 5.8W 95+ 3500K 16'-4"
LTR-S-24V-5.8W-40K-100 100' (30M) 750 5.8W 95+ 4000K 16'-4"
Kelvin temp. =/-100K.  16'-4" and 100' reel includes 24" lead affixed to tape.  16'-4" reel includes (3) ESTW-60 Sure-Time connectors.  100' reel includes (10) ESTW-60 Sure-Time connectors.



Accessories

LUXcontrol CONTROLLERS

MODEL DESCRIPTION
SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
SHWC-RGBW-RPT Universal Smart Power Repeater

Accessories

Catalog No. Description
ESTC-1 Sure-Tite Tape to Tape Connector
ESTLK-60 Sure-Tite 60" Adjustable Tape to Tape Connector
ESTW-60 Sure-Tite 60" Adjustable Tape to Power Connector
ESTW-CO Sure-Tite Tape to Power Supply Connector (no wire)
ESTC-90 Sure-Tite 90° connector
