GM Lighting

GM Lighting LED-CHL-XD-MD 4FT/8FT Mini Deep Aluminum LED Mounting Channel

$29.25

Sale Sold out

Shipping calculated at checkout.

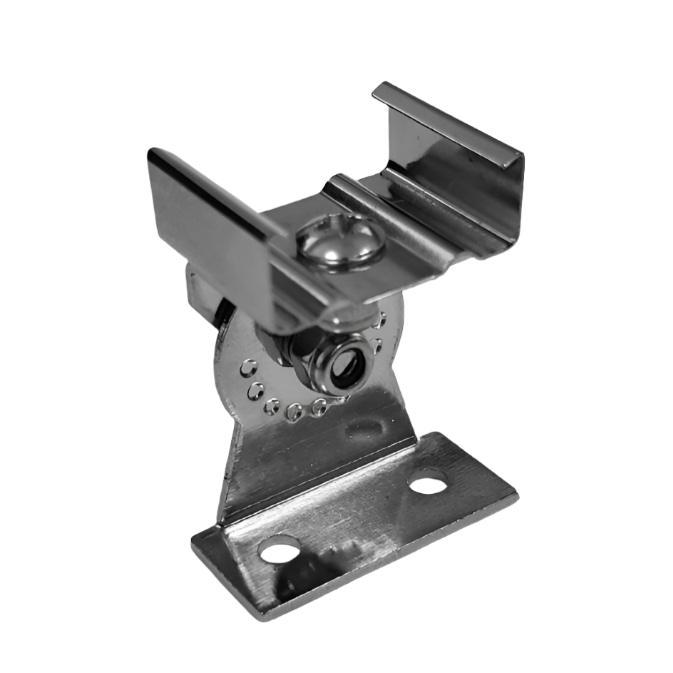

Mini Deep Channel 4FT Channel 6FT Channel 8FT Channel 4 Pack Mini Deep Channel End Cap Mini Deep Adjustable Mounting Clip

Color: Aluminum

Quantity

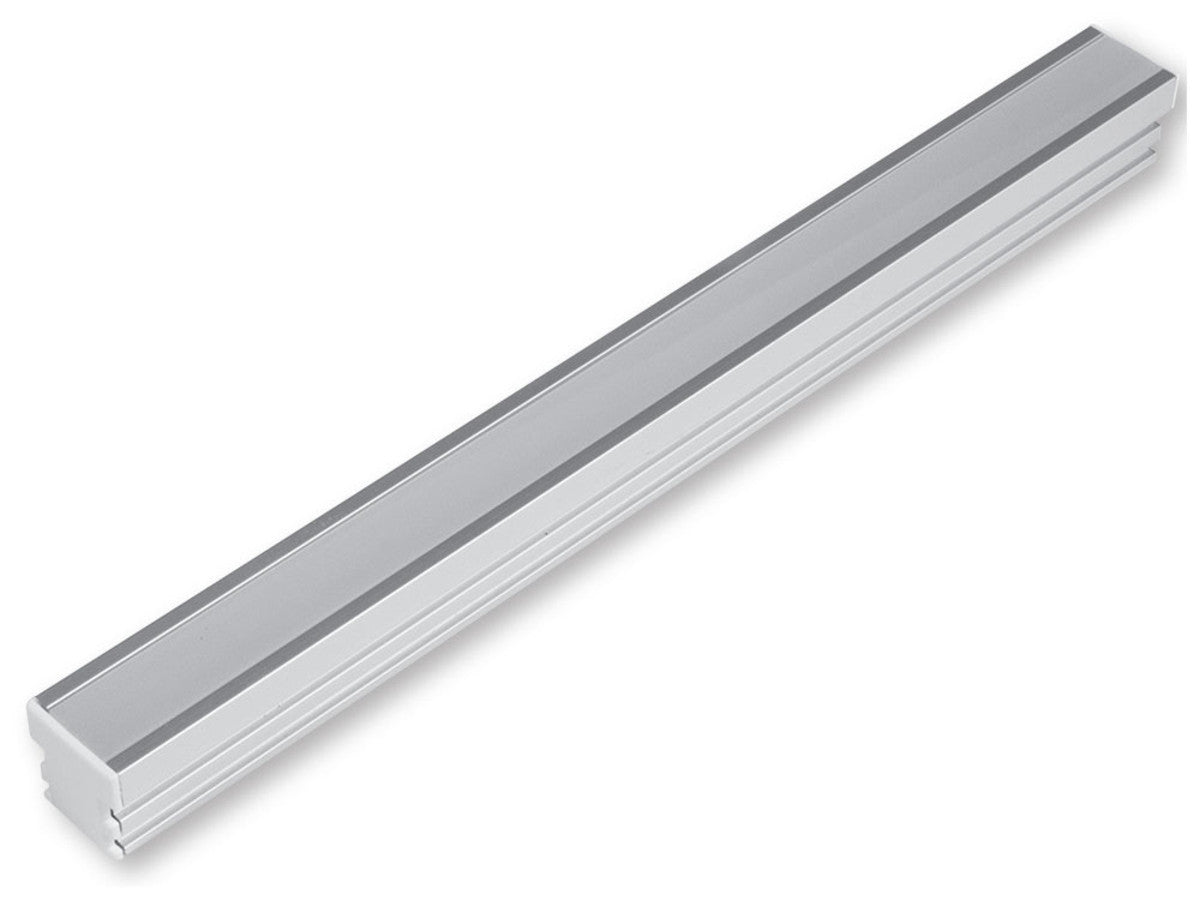

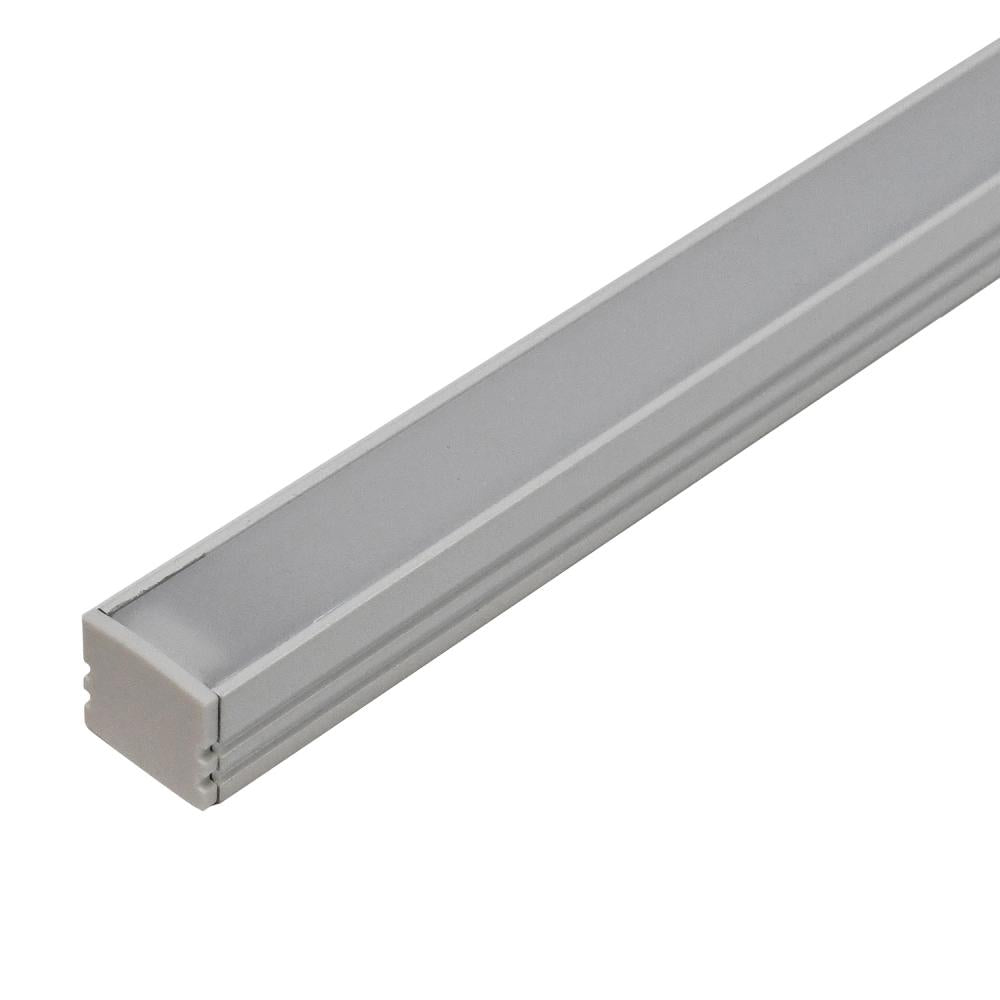

Mini Deep Aluminum Linear LED Tape Mounting Channels

8 foot channels are a minimum of 4 pieces to ship

GM Lighting’s LED-CHL-XD-MD channel accepts all low voltage GM Lighting LED tape. Available in 48” 72" and 96” lengths, these mounting channels are the perfect vessel that not only insures an architectural quality installation, but also provides diode-free imaging due to the frosted lens that is included with each channel.

Available in 4ft (48in) and 8ft (96in)

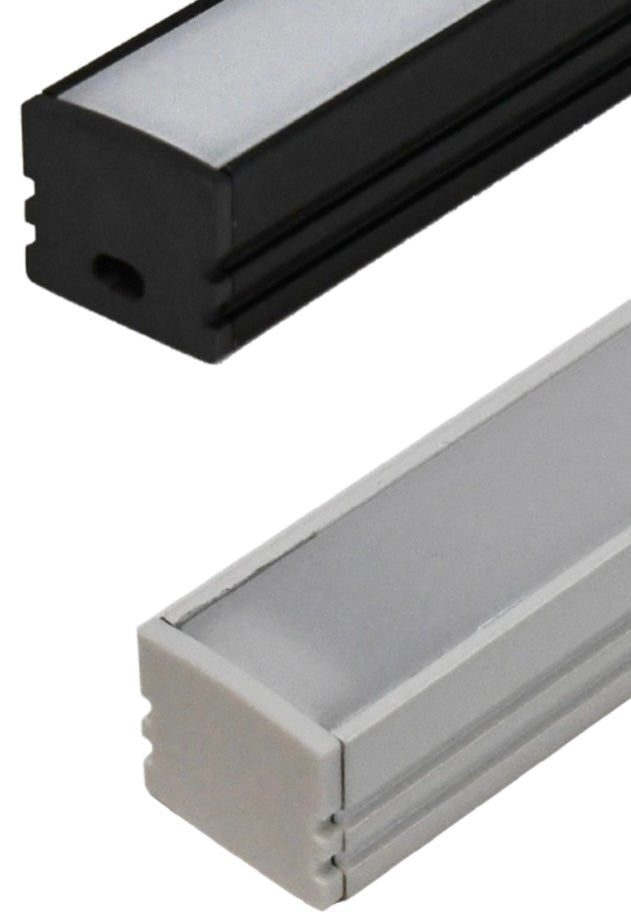

Silver Anodized, Black Anodized, White Powder Coated
Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
Includes acrylic frosted lens
End caps sold separately
Available with or without flange (see LED-CHL-XD-MD-F spec sheet for flange option ordering information)
For LTR Series Tape - LTR-P, LTR-S and LTR-E
Dry location only
8 foot channels are a minimum of 4 pieces to ship

Spec Sheet

LED-CHL-XD-MD SPEC SHEET

Info

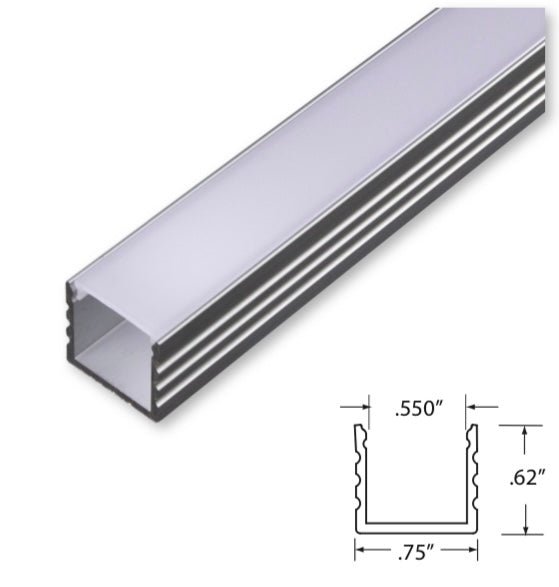

Catalog No.	Length	Width	Height	Finish
LED-CHL-XD-MD	48"	.75"	.62"	Aluminum/Black/White
LED-CHL-XD-MD	72"	.75"	.62"	Aluminum/Black/White
LED-CHL-XD-MD-8	96"	.75"	.62"	Aluminum/Black/White

NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections. Please locate connections outside of channel interior.
