GM Lighting

GM Lighting LED-CHL-XD-MD-F 4FT/8FT Mini Deep Flanged Aluminum LED Mounting Channel

GM Lighting LED-CHL-XD-MD-F 4FT/8FT Mini Deep Flanged Aluminum LED Mounting Channel

$29.25
$29.25
Sale Sold out
Shipping calculated at checkout.
Mini Deep Flanged Channel
Color: Aluminum

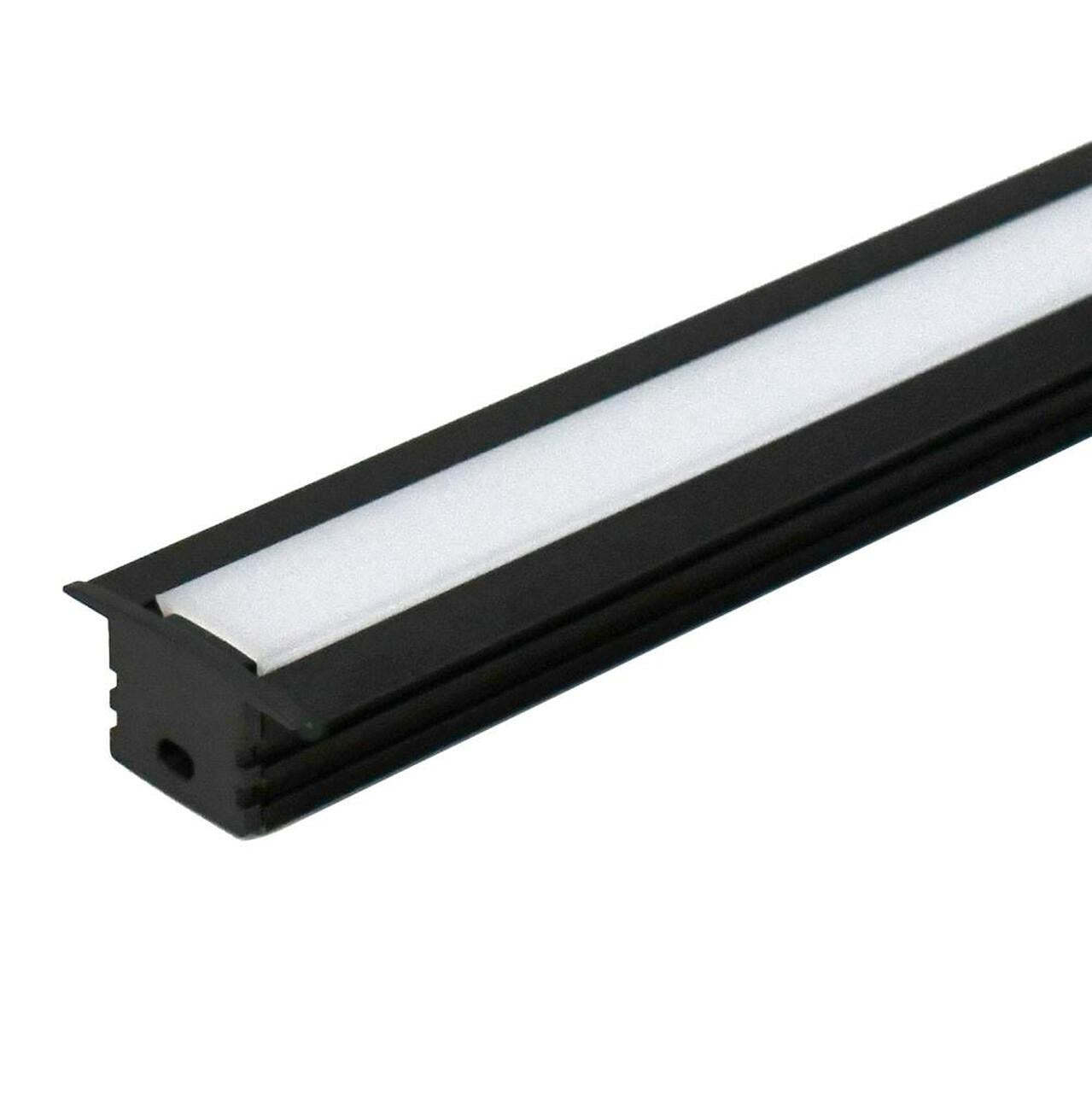

Mini Deep Flanged Aluminum Linear LED Tape Mounting Channels

8 foot channels are a minimum of 4 pieces to ship

GM Lighting’s LED-CHL-XD-MD-F flange channels accepts all GM Lighting LED tape. Available in 48” and 96” lengths, these mounting channels are the perfect vessel that not only insures an architectural quality installation, but also provides diode-free imaging due to the frosted lens that is included with each channel.



  •  Available in 4ft (48in) and 8ft (96in)
  • Silver Anodized, Black Anodized, White Powder Coated
  • Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
  • Includes acrylic frosted lens
  • End caps sold separately
  • Available with or without flange (see LED-CHL-XD-MD spec sheet for non-flange option)
  • For LTR Series Tape - LTR-P, LTR-S and LTR-E
  • Dry location only
  • 8 foot channels are a minimum of 4 pieces to ship
    Spec Sheet

    LED-CHL-XD-MD-F SPEC SHEET

    Info
    Catalog No. Length Width Height Finish
    LED-CHL-XD-MD-F 48" 1.25" .56" Aluminum/Black/White
    LED-CHL-XD-MD-F-8 96" 1.25" .56" Aluminum/Black/White
    NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections. Please locate connections outside of channel interior.

    Accessories

    Catalog No. Description Color
    LED-CHL-XD-MD-F-EC (2) End caps - one solid, one with wiring hole Aluminum
    LED-CHL-XD-MD-F-DC (2) Drywall spring clips with mounting screws Stainless Steel
    LED-CHL-XD-MD-F-ECWH (2) White End caps - one solid, one with wiring hole White
    LED-CHL-XD-MD-F-ECB (2) Black End caps - one solid, one with wiring hole Black
