GM Lighting LTR-P-24V 5.8W 16FT PRO LED Tape 27K-50K

GM Lighting LTR-P-24V 5.8W 16FT PRO LED Tape 27K-50K

$162.00
$189.99 $162.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

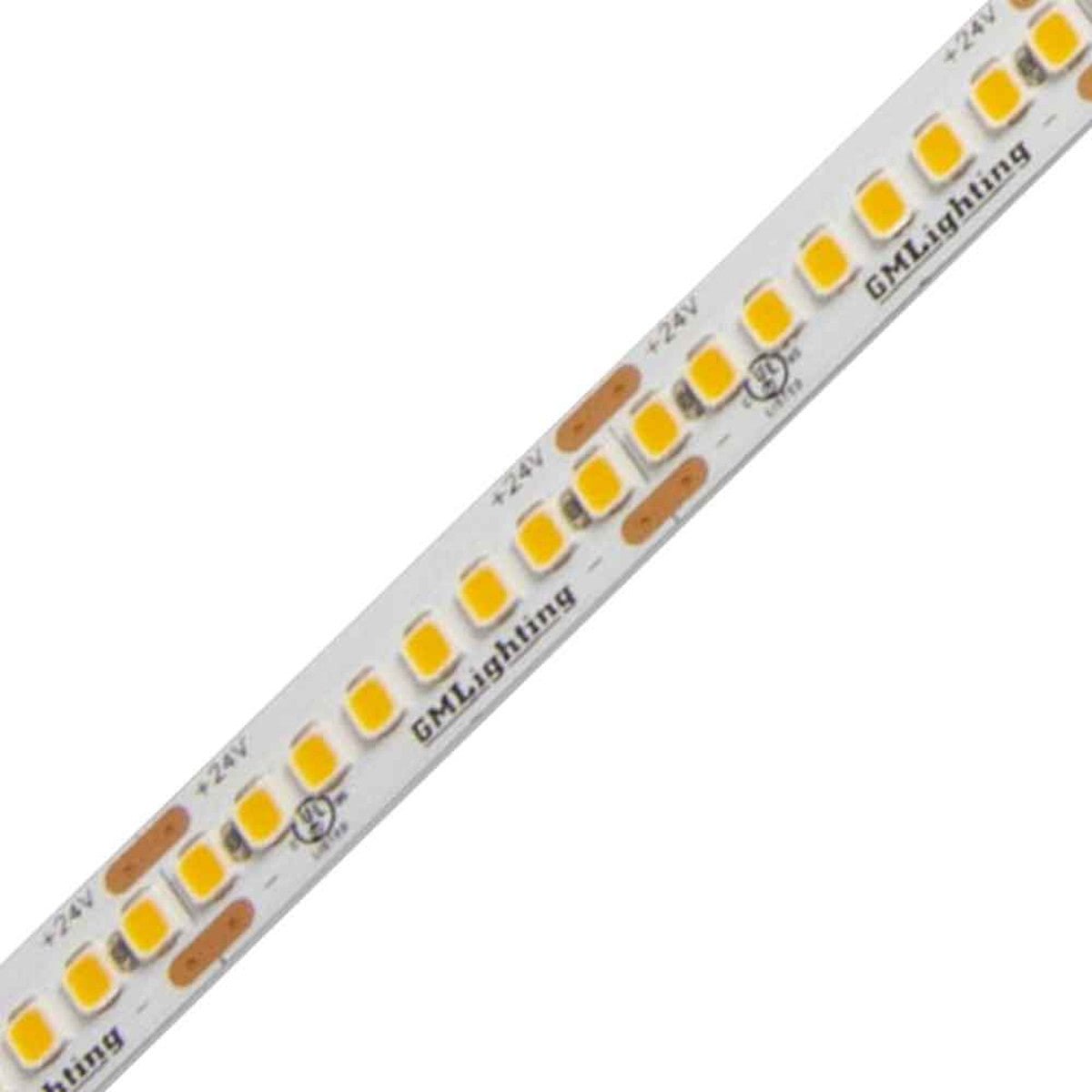

LTR-P Pro Series 5.8W Tape

GM’s 5.8W / 24V Pro Series Flexible LED Tape combines style and technology with reliability.  Choose between color temps from 2400K to 5000K. Our Pro Series is exactly what we claim - a professional LED linear solution.

  • 24VDC
  • 5.8W / ft.
  • 90+ CRI
  • 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
  • Remote control with GM’s LUXcontrol™ App and controllers
  • Dry location
  • 120 LED's per meter
  • Cuttable every 2"
  • Custom lengths available
  • Premium diodes
  • 120° viewing angle
  • Dimmable
  • 3M adhesive back
  • Maximum run on a given lead is 16'-4"
  • Includes Sure-tite connectors
  • UL certification
  • Class 2
  • Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • 5 year warranty when paired with GM power supply

NOTE:  FOR PROPER THERMAL MANAGEMENT, PLEASE USE THIS PRODUCT IN MOUNTING EXTRUSION

Spec Sheet

5.8W LTR-P 24VDC SPEC SHEET

Info
Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
LTR-P-24V-5.8W-24K-16 16'-4" (5M) 390 5.8W 90+ 2400K 16'-4"
LTR-P-24V-5.8W-27K-16 16'-4" (5M) 404 5.8W 90+ 2700K 16'-4"
LTR-P-24V-5.8W-30K-16 16'-4" (5M) 423 5.8W 90+ 3000K 16'-4"
LTR-P-24V-5.8W-35K-16 16'-4" (5M) 462 5.8W 90+ 3500K 16'-4"
LTR-P-24V-5.8W-40K-16 16'-4" (5M) 473 5.8W 90+ 4000K 16'-4"
LTR-P-24V-5.8W-50K-16 16'-4" (5M) 493 5.8W 90+ 5000K 16'-4"
LTR-P-24V-5.8W-24K-100 100' (30M) 390 5.8W 90+ 2400K 16'-4"
LTR-P-24V-5.8W-27K-100 100' (30M) 404 5.8W 90+ 2700K 16'-4"
LTR-P-24V-5.8W-30K-100 100' (30M) 423 5.8W 90+ 3000K 16'-4"
LTR-P-24V-5.8W-35K-100 100' (30M) 462 5.8W 90+ 3500K 16'-4"
LTR-P-24V-5.8W-40K-100 100' (30M) 473 5.8W 90+ 4000K 16'-4"
LTR-P-24V-5.8W-50K-100 100' (30M) 493 5.8W 90+ 5000K 16'-4"
Kelvin temp. =/-100K.  16'-4" and 100' reel includes 24" lead affixed to tape.  16'-4" reel includes (3) ESTW-60 Sure-Time connectors.  100' reel includes (10) ESTW-60 Sure-Time connectors.
Accessories

LUXcontrol CONTROLLERS

MODEL DESCRIPTION
SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
SHWC-RGBW-RPT Universal Smart Power Repeater

Accessories

Catalog No. Description
ESTC-1 Sure-Tite Tape to Tape Connector
ESTLK-60 Sure-Tite 60" Adjustable Tape to Tape Connector
ESTW-60 Sure-Tite 60" Adjustable Tape to Power Connector
ESTC-90 Sure-Tite 90° connector
ESTW-CO Sure-Tite Tape to Power Supply Connector (no wire)
