GM Lighting

GM Lighting LTR-P-WP-24V 1.5/3W 1FT/16FT/100FT PRO LED Tape Wet Location 27K-50K

GM Lighting LTR-P-WP-24V 1.5/3W 1FT/16FT/100FT PRO LED Tape Wet Location 27K-50K

$16.20
$18.99 $16.20
Sale Sold out
Shipping calculated at checkout.
Size
Wattage
Color Temperature

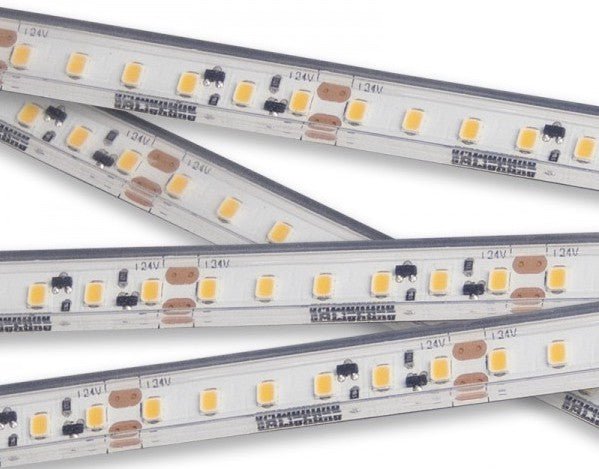

LTR-P Pro Series Wet Location 1.5W / 3.0W Tape (IP65)

Why stay indoors when you can bring the beauty of Pro Series LED linear to the environment?  With Pro Series Wet Location tape you can specify simple or complex runs, and leave the rest up to us!  Performance driven Professional Series LED Tape: not just for indoors. Choose between color temps from 2400K to 5000K.

  • 24VDC
  • 1.5W / ft., 3.0W / ft. and 5.8W / ft.
  • 90+ CRI
  • 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
  • Amber, Red, Green, Blue color temps
  • Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
  • Wet location
  • Optical clear UV protected silicone sheath
  • 36 LED's per foot (120 LEDs per meter)
  • Custom lengths available - consult factory
  • Premium diodes
  • 120° viewing angle
  • Dimmable
  • 3M adhesive back
  • Maximum run on a given lead is 16'-4" (5.8W), 32'-8" (3.0W) and 60' (1.5W)
  • UL certification
  • Class 2
  • Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • 5 year warranty when paired with GM power supply

NOTE:  CUSTOM LENGTHS ARE AVAILABLE. ORDER BY THE FOOT. DO NOT SUBMERGE DIRECTLY IN WATER.

          Spec Sheet

          1.5W / 3.0W LTR-P 24V WET LOCATION SPEC SHEET

          Info
          Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
          LTR-P-WP-24V-1.5W-24K-16 16'-4" (5M) 102 1.5W 90+ 2400K 60'
          LTR-P-WP-24V-1.5W-27K-16 16'-4" (5M) 109 1.5W 90+ 2700K 60'
          LTR-P-WP-24V-1.5W-30K-16 16'-4" (5M) 121 1.5W 90+ 3000K 60'
          LTR-P-WP-24V-1.5W-35K-16 16'-4" (5M) 121 1.5W 90+ 3500K 60'
          LTR-P-WP-24V-1.5W-40K-16 16'-4" (5M) 136 1.5W 90+ 4000K 60'
          LTR-P-WP-24V-1.5W-50K-16 16'-4" (5M) 144 1.5W 90+ 5000K 60'
          LTR-P-WP-24V-1.5W-24K-FT Ordered by the foot 102 1.5W 90+ 2400K 60'
          LTR-P-WP-24V-1.5W-27K-FT Ordered by the foot 109 1.5W 90+ 2700K 60'
          LTR-P-WP-24V-1.5W-30K-FT Ordered by the foot 121 1.5W 90+ 3000K 60'
          LTR-P-WP-24V-1.5W-35K-FT Ordered by the foot 121 1.5W 90+ 3500K 60'
          LTR-P-WP-24V-1.5W-40K-FT Ordered by the foot 136 1.5W 90+ 4000K 60'
          LTR-P-WP-24V-1.5W-50K-FT Ordered by the foot 144 1.5W 90+ 5000K 60'

          Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
          LTR-P-WP-24V-3.0W-24K-16 16'-4" (5M) 210 3.0W 90+ 2400K 32'-8"
          LTR-P-WP-24V-3.0W-27K-16 16'-4" (5M) 225 3.0W 90+ 2700K 32'-8"
          LTR-P-WP-24V-3.0W-30K-16 16'-4" (5M) 242 3.0W 90+ 3000K 32'-8"
          LTR-P-WP-24V-3.0W-35K-16 16'-4" (5M) 246 3.0W 90+ 3500K 32'-8"
          LTR-P-WP-24V-3.0W-40K-16 16'-4" (5M) 254 3.0W 90+ 4000K 32'-8"
          LTR-P-WP-24V-3.0W-50K-16 16'-4" (5M) 265 3.0W 90+ 5000K 32'-8"
          LTR-P-WP-24V-3.0W-24K-FT Ordered by the foot 210 3.0W 90+ 2400K 32'-8"
          LTR-P-WP-24V-3.0W-27K-FT Ordered by the foot 225 3.0W 90+ 2700K 32'-8"
          LTR-P-WP-24V-3.0W-30K-FT Ordered by the foot 242 3.0W 90+ 3000K 32'-8"
          LTR-P-WP-24V-3.0W-35K-FT Ordered by the foot 246 3.0W 90+ 3500K 32'-8"
          LTR-P-WP-24V-3.0W-40K-FT Ordered by the foot 254 3.0W 90+ 4000K 32'-8"
          LTR-P-WP-24V-3.0W-50K-FT Ordered by the foot 265 3.0W 90+ 5000K 32'-8"
          Kelvin temp. =/-100K.  16'-4" and 100' reel includes 24" lead affixed to tape and a cut and cap accessories kit that includes sealer, mounting brackets, screws and connector.
          Wet location connectors are included in factory custom cuts and runs.


          Accessories

          LUXcontrol CONTROLLERS

          MODEL DESCRIPTION
          SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
          SHWC-RGBW-RPT Universal Smart Power Repeater

          Accessories

          Catalog No. Description
          LTR-P-WP-TPC-12 Tape to power supply wet location connector
          LTR-P-WP-TTC-3 3” tape to tape wet location connector
          LTR-P-WP-TTC-6 6” tape to tape wet location connector
          LTR-P-WP-TTC-12 12” tape to tape wet location connector
          LTR-P-WP-TTC-24 24” tape to tape wet connector

          View full details
