GM Lighting LTR-S-COB-24V 1.5/3W/FT 16FT LED Tape 27K-40K

GM Lighting LTR-S-COB-24V 1.5/3W/FT 16FT LED Tape 27K-40K

$151.20
$151.20
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

LTR-S Spec Series COB Tape



GM Lighting’s Specification Series features the newest technology in LED flexible tape.

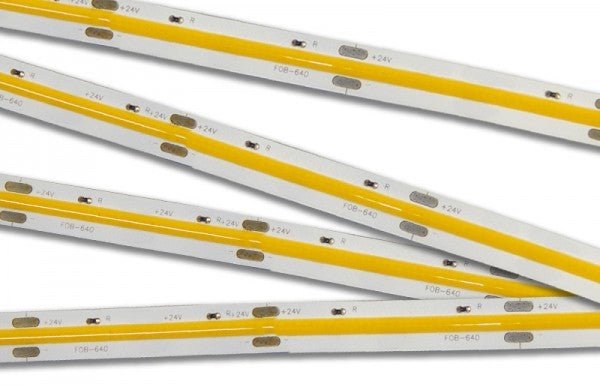

Chip On Board (COB) LED is the new state of the art linear LED system that encapsulates tightly spaced individual diodes into one linear light display.  COB Tape features a wider beam spread - 180°!  Works with standard dimmers and is available in a 16'-4" (5M) reel.



  • 24VDC
  • 1.5W and 3.0W / ft.
  • 95+ CRI
  • 2700K, 3000K, 3500K, 4000K
  • Remote control with GM’s LUXcontrol™ App and controllers
  • Dry location
  • Cuttable every 2"
  • 180° viewing angle
  • 3M adhesive back
  • Maximum run on a given lead is 32'-8" (1.5W) and 16'-4" (3W)
  • Includes Sure-tite connectors
  • UL certification
  • Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
  • 5 year warranty when paired with GM power supply
      Spec Sheet

      1.5W / 3W COB 24VDC SPEC SHEET

      Info
      Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
      LTR-S-COB-24V-1.5W-27K-16 16'-4" (5M) 127 1.5W 95+ 2700K 32'-8"
      LTR-S-COB-24V-1.5W-30K-16 16'-4" (5M) 127 1.5W 95+ 3000K 32'-8"
      LTR-S-COB-24V-1.5W-35K-16 16'-4" (5M) 127 1.5W 95+ 3500K 32'-8"
      LTR-S-COB-24V-1.5W-40K-16 16'-4" (5M) 142 1.5W 95+ 4000K 32'-8"
      LTR-S-COB-24V-3.0W-27K-16 16'-4" (5M) 255 3.0W 95+ 2700K 16'-4"
      LTR-S-COB-24V-3.0W-30K-16 16'-4" (5M) 265 3.0W 95+ 3000K 16'-4"
      LTR-S-COB-24V-3.0W-35K-16 16'-4" (5M) 275 3.0W 95+ 3500K 16'-4"
      LTR-S-COB-24V-3.0W-40K-16 16'-4" (5M) 285 3.0W 95+ 4000K 16'-4"
      Kelvin temp. =/-100K.  16'-4" reel includes 24" lead affixed to tape.  16'-4" reel includes (3) ESTW-60 Sure-Time connectors.



      Accessories

      LUXcontrol CONTROLLERS

      MODEL DESCRIPTION
      SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
      SHWC-RGBW-RPT Universal Smart Power Repeater

      Accessories

      Catalog No. Description
      ESTC-1 Sure-Tite Tape to Tape Connector
      ESTLK-60 Sure-Tite 60" Adjustable Tape to Tape Connector
      ESTW-60 Sure-Tite 60" Adjustable Tape to Power Connector
      ESTW-CO Sure-Tite Tape to Power Supply Connector (no wire)
      ESTC-90 Sure-Tite 90° connector


      View full details
