GM Lighting

GM Lighting NV24T-3W NeoVISION24™ TopFlex Neon Tape 16FT/32FT

GM Lighting NV24T-3W NeoVISION24™ TopFlex Neon Tape 16FT/32FT

Regular price $450.00
Regular price Sale price $450.00
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature/ Color
Wattage

NeoVISION24™ TopFlex Neon Tape

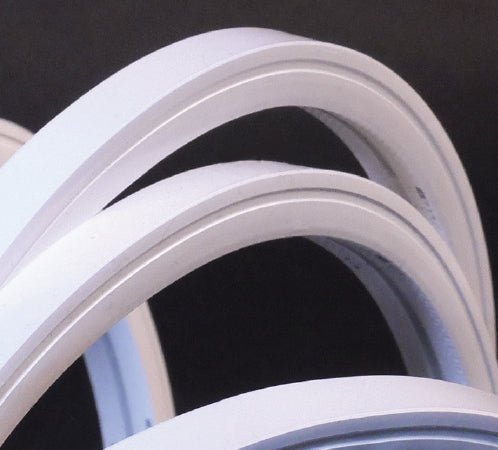

A 24VDC flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.



  • 24VDC operation
  • 3W per foot
  • Wet location - IP65
  • Multiple power feed options
  • Tape encased in UV stable silicone (UV protected)
  • Dimmable
  • Wireless control with LUXcontrol App and controller

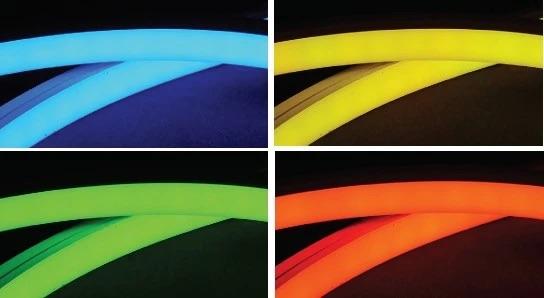

  • 3000K or 4000K / Amber, Blue, Green or Red
  • 120° viewing angle
  • Maximum run: 32’-8”
  • Field cuttable and joinable in 2-inch increments while retaining IP65
  • No tools required for capping and joining
  • Mounting clips included (recommend use 1 per foot)
Spec Sheets
    NeoVISION24™ TopFlex SPEC SHEET
    Info
    Catalog No.  Length  Lumens per Foot  CRI  Color Temp.  Max. Run
    NV24T-3W-30K-16 16’-4” 146 90+ 3000K 32’-8”
    NV24T-3W-30K-32  32’-8” 146 90+  3000K  32’-8"
    NV24T-3W-40K-16  16’-4” 149 90+  4000K  32’-8”
    NV24T-3W-40K-32  32’-8” 149 90+  4000K  32’-8”
    NV24T-3W-AM-16 16’-4” N/A  90+  AMBER  32’-8”
    NV24T-3W-AM-32  32’-8” N/A  90+  AMBER  32’-8”
    NV24T-3W-BL-16  16’-4” N/A  90+  BLUE  32’-8”
    NV24T-3W-BL-32  32’-8”  N/A  90+  BLUE  32’-8”
    NV24T-3W-GR-16  16’-4”  N/A  90+  GREEN  32’-8”
    NV24T-3W-GR-32  32’-8” N/A  90+  GREEN  32’-8”
    NV24T-3W-RD-16  16’-4” N/A  90+  RED  32’-8”
    NV24T-3W-RD-32  32’-8” N/A  90+  RED  32’-8”
    Kelvin temperature (color) ±100K. Every reel includes (1) NV24T-PF-EF (tape to power feed with 48”; of lead.). 16’ reel includes (16) NV24T-MC-A mounting clips and screws. 32’ reel comes with (32) NV24T-MC-A mounting clips and screws. Operating temp.: -4° - 130°F.
    Accessories

    LUXcontrol CONTROLLERS

    MODEL DESCRIPTION
    SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
    SHWC-RGBW-RPT Universal Smart Power Repeater



    Catalog No. Description
    NV24T-PF-EF8 Tape to power flexible end feed - 8 ft. length
    NV24T-PF-BF8 Tape to power flexible bottom feed - 8 ft. length
    NV24T-SP Tape to tape splice connector
    NV24T-CHL-A4 Aluminum channel - 4 ft. length
    NV24T-CHL-A8 Aluminum channel - 8 ft. length
    NV24T-MC-A Aluminum mounting clips (set of 20)
    NV24T-TTC6 Tape to tape 6” flexible connector
    NV24T-TTC12 Tape to tape 12” flexible connector
    NV24T-TTC24 Tape to tape 24” flexible connector
    NV24T-FLEX-CHL Flexible mounting channel - 39.5”
    NV24-CT Tape cutting tool
    NV24T-EC End cap
