RAB Lighting

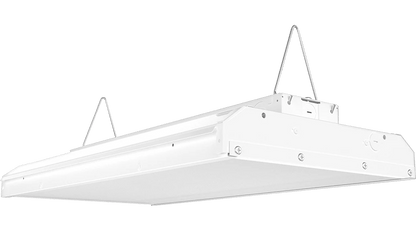

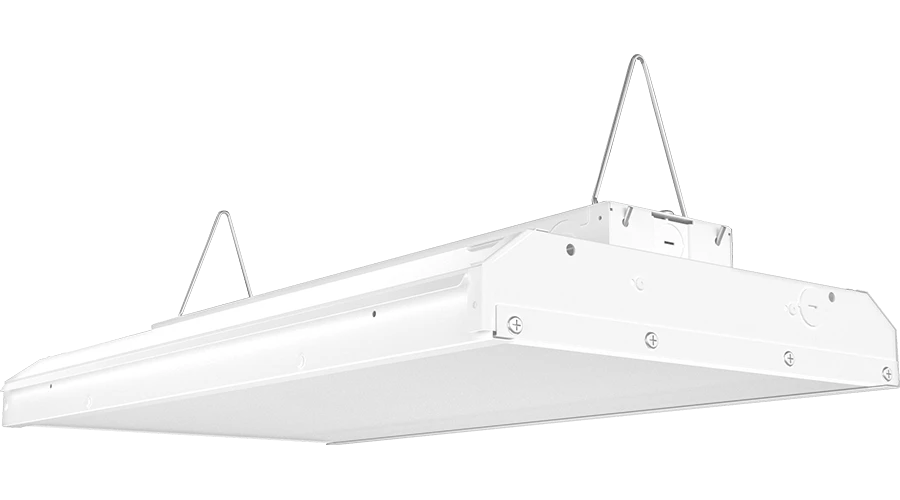

RAB Aerobay 2FT 95W LED Hi-Bay 40K/50K

RAB Aerobay 2FT 95W LED Hi-Bay 40K/50K

Regular price $149.75
Regular price Sale price $149.75
Sale Sold out
Shipping calculated at checkout.
Color Temperature
Infrared Option

Aerobay 2FT 95W Hi-Bay Warehouse Light

Spec Sheet
 Color Temp W/O Sensor W/ Sensor
40K Spec Sheet Spec Sheet
50K Spec Sheet Spec Sheet

Installation Instructions

Product Type  Hi-Bay Lighting
Wattage 95W
Lumen 13,300
Efficacy 136 lm/W
Color Temp. 4000K/5000K
L70 Lifespan 100,000 Hours
LED's Multi-chip, high-output, long-life LEDs
Housing 22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Finish  Our environmentally friendly polyester powder coatings are formulated for high-durability and long lasting color
Mounting V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Lens Polycarbonate lens
White painted, reflective, die formed painted steel
Dimming 0-10V
Additional Info


UL Listed Suitable for damp locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed  Designed to meet DLC 5.1 requirements. DLC Product Code: 40K-PQDGXGOH 50K-PI2IJL0D
Driver Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.81A, 208V: 0.48A, 240V: 0.41A, 277V: 0.36A
THD 8.6% at 120V, 10.1% at 277V
Power Factor 99.7% at 120V, 95% at 277V
Surge Protection


For areas prone to surges, upgrade to 10kV surge protection available

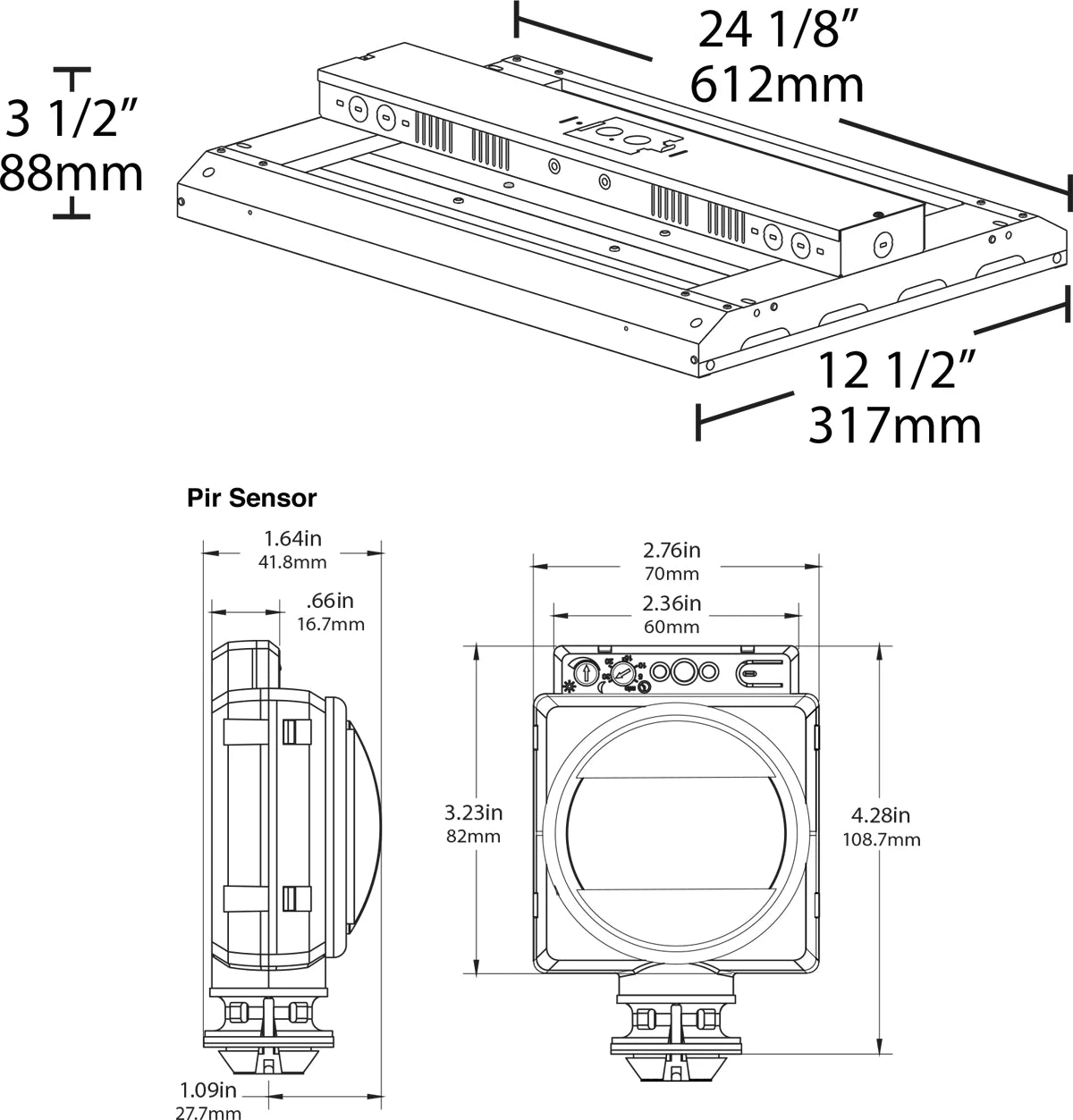

Sensor Specs
Passive Infrared Occupancy and Daylight Sensor
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor
UL Listed
Indoor use only
Operating Humidity
5% to 96%, noncondensing
Operating Temperature
32°F to 158°F (0°C to 70°C)
Line Voltage
Line Voltage for direct connection to load
120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
Power Consumption
Maximum Versatility
Adjustable time delay and sensitivity
Adjustable hold-off daylighting level
6.4 oz (181 g)
UL listed snap-in mounting hardware
Easy mounting using knockout at end of linear high bay luminaire
Lens (attached) designed for mounting heights from 15 to 40 feet
Rotatable Mask
Snap-on rotatable mask for aisleway applications (included)
Covers a 100-foot diameter area when mounted at height of 40 feet
Factory Default
15 minutes time delay
Max sensitivity
300 footcandle light level
