RAB Lighting
RAB Aerobay 3FT 215W LED Hi-Bay 40K/50K
RAB Aerobay 3FT 215W LED Hi-Bay 40K/50K
Regular price
$333.00
Regular price
Sale price
$333.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

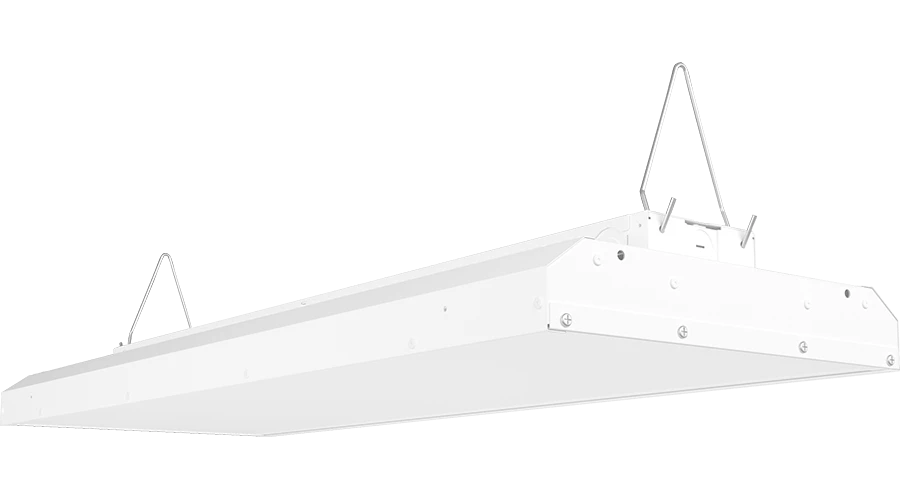

Aerobay 3FT 215W Hi-Bay Warehouse Light
Lead Times Expected. Some in stock. Please call before placing order.
Economical linear high bay delivers versatility and ultra-high efficiency. Available in 40K or 50K, for mounting heights ranging from 15 to 60 feet. Patent pending, retractable design reduces volume by up to 60% to save valuable shelf and storage space
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, Limited Warranty
Spec Sheet
Lead Times Expected
| Color Temp | W/O Sensor | W/ Sensor |
| 40K | Spec Sheet | Spec Sheet |
| 50K | Spec Sheet | Spec Sheet |
Installation Instructions
Info
| Product Type | Hi-Bay Lighting |
| Wattage | 215W |
| Lumen | 29000 |
| Efficacy | 135 lm/W |
| Color Temp. | 4000K/5000K |
| CRI | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| LED's | Multi-chip, high-output, long-life LEDs |
| Housing | 22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting. |
| Finish | Our environmentally friendly polyester powder coatings are formulated for high-durability and long lasting color |
| Mounting | V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains. |
| Lens | Polycarbonate lens |
| Reflector |
White painted, reflective, die formed painted steel |
| Dimming | 0-10V |
Additional Info
Compliance
|
||||||
Electrical
|
Sensor Specs
|
Passive Infrared Occupancy and Daylight Sensor
|
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor
|
|
UL Listed
|
Indoor use only
|
|
Operating Humidity
|
5% to 96%, noncondensing |
|
Operating Temperature
|
32°F to 158°F (0°C to 70°C)
|
|
Line Voltage
|
Line Voltage for direct connection to load
|
|
Voltage
|
120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
|
|
Power Consumption
|
0.2W
|
|
Maximum Versatility
|
Adjustable time delay and sensitivity
Adjustable hold-off daylighting level
|
|
Weight
|
6.4 oz (181 g)
|
|
Hardware
|
UL listed snap-in mounting hardware
|
|
Mounting
|
Easy mounting using knockout at end of linear high bay luminaire
|
|
Lens
|
Lens (attached) designed for mounting heights from 15 to 40 feet
|
|
Rotatable Mask
|
Snap-on rotatable mask for aisleway applications (included)
|
|
Coverage
|
Covers a 100-foot diameter area when mounted at height of 40 feet
|
|
Factory Default
|
15 minutes time delay
|
|
Max sensitivity
|
300 footcandle light level
|
