RAB Lighting

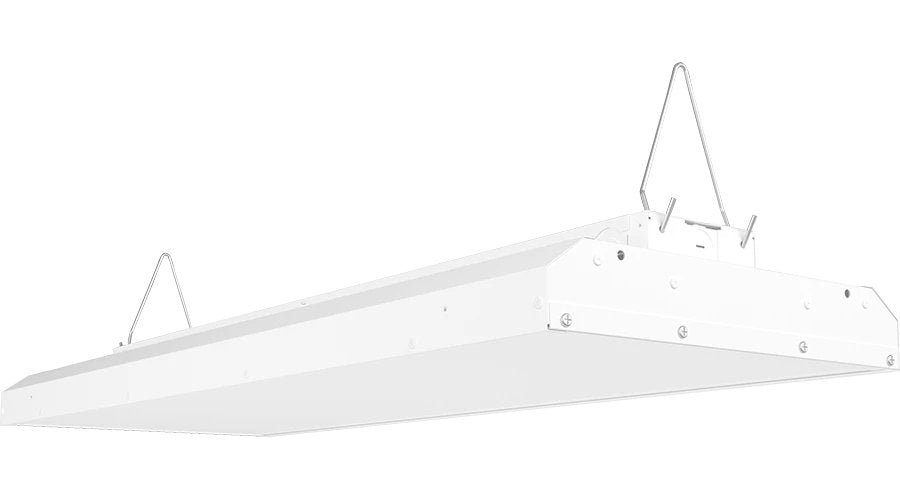

RAB Aerobay 3FT 275W LED Hi-Bay 40K/50K

RAB Aerobay 3FT 275W LED Hi-Bay 40K/50K

Regular price $396.00
Regular price Sale price $396.00
Sale Sold out
Shipping calculated at checkout.
Infrared Option
Color Temperature

Aerobay 3FT 275W Hi-Bay Warehouse Light

Spec Sheet
 Color Temp W/O Sensor W/ Sensor
40K Spec Sheet Spec Sheet
50K Spec Sheet Spec Sheet

Installation Instructions

Product Type  Hi-Bay Lighting
Wattage 275W
Lumen 36800
Efficacy 137 lm/W
Color Temp. 4000K/5000K
L70 Lifespan 100,000 Hours
LED's Multi-chip, high-output, long-life LEDs
Housing 22 gauge die formed with white powder coat finish. Y Hooks included for easy chain or cable mounting.
Finish  Our environmentally friendly polyester powder coatings are formulated for high-durability and long lasting color
Mounting V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Lens Polycarbonate lens
White painted, reflective, die formed painted steel
Dimming 0-10V
Additional Info


UL Listed Suitable for damp locations
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed Designed to meet DLC 5.1 requirements. DLC Product Code: 40K-PDFDWA1H 50K-P6Q8WDOE
Driver Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.25A, 208V: 1.30A, 240V: 1.12A, 277V: 1.0A
THD 6.6% at 120V, 8.9% at 277V
Surge Protection


For areas prone to surges, upgrade to 10kV surge protection available


Sensor Specs
Passive Infrared Occupancy and Daylight Sensor
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor
UL Listed
Indoor use only
Operating Humidity
5% to 96%, noncondensing
Operating Temperature
32°F to 158°F (0°C to 70°C)
Line Voltage
Line Voltage for direct connection to load
120, 277, 347V, 60Hz or 230V, single phase, 50Hz operation
Power Consumption
Maximum Versatility
Adjustable time delay and sensitivity
Adjustable hold-off daylighting level
6.4 oz (181 g)
UL listed snap-in mounting hardware
Easy mounting using knockout at end of linear high bay luminaire
Lens (attached) designed for mounting heights from 15 to 40 feet
Rotatable Mask
Snap-on rotatable mask for aisleway applications (included)
Covers a 100-foot diameter area when mounted at height of 40 feet
Factory Default
15 minutes time delay
Max sensitivity
300 footcandle light level
