RAB Lighting

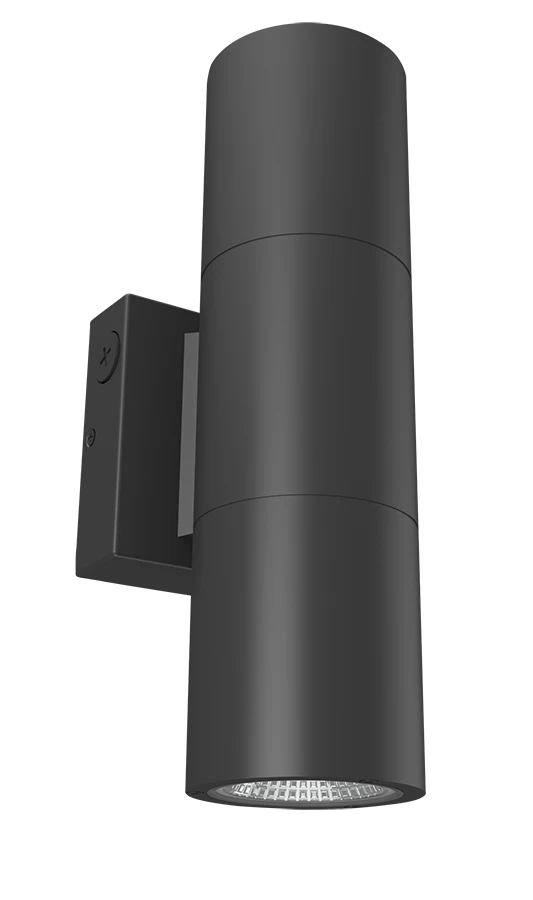

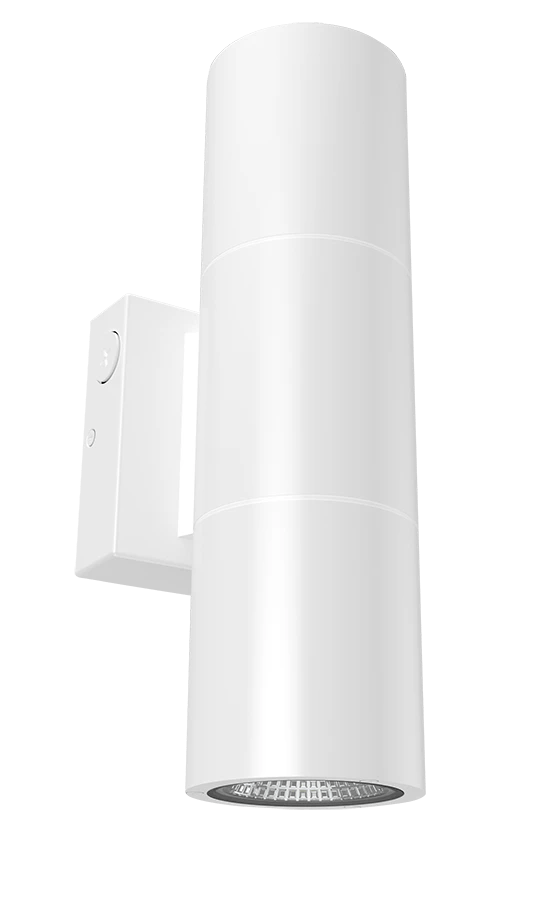

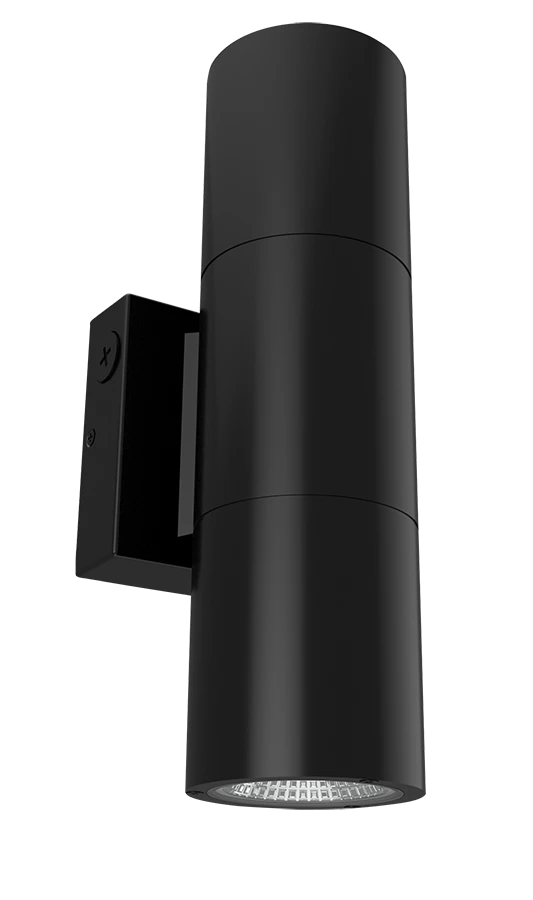

RAB CD34FA 20W 4" Cylinder Wall Mount Selectable CCT

RAB CD34FA 20W 4" Cylinder Wall Mount Selectable CCT

$110.50
$110.50
Sale Sold out
Shipping calculated at checkout.
Color: White
Wattage
Color Temperature

20W 4" Wall Mount Selectable CCT Up/Down

This 4-inch CD34 cylinder with integrated photocell is ideal for wall mounting in outdoor applications. Field adjustable light output (up/down/both) and color temperature (5000/4000/3000K).

  • Aluminum extrusion housing and die-casting covers
  • Field adjustable light output, select from up/down/both
  • Field adjustable color temperatures between 5000/4000/3000K
  • Integrated photocell
  • IP65 rated



    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
     Product Type  Economy Cylinder
    Wattage 20W (2X10W)
    Lumen 1700
    Color Temp. Field Adjustable (3K/4K/5K)
    CRI 80
    L70 Lifespan 100,000
    Material Metal
    Style Smooth
    Gaskets Gasket included can achieve restrictive airflow and wet location without any additional gasket or caulk
    Beam Angle 50°
    LED LED array provides a uniform source with high efficiency and no pixilation
    Lens
    		 Regressed lens constructed from impact resistant polycarbonate. Convex lens gives the optic a similar lamp-like appearance. Provides smooth and diffuse light distribution
    Mounting Wall Mount
    Housing Material
    		 Cylinder aluminum extrusion/cover aluminum die casting
    Additional Info
                                                   Compliance
     Safety Listing UL Listed
    Environment Rating Suitable for indoor and outdoor use
    California Energy Commission (CEC) Status: Not lawful for sale in California
    Energy Star ID 2400418
    Energy Star Compliant This product is ENERGY STAR® Version 2.2 Certified.
    IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
    FCC Complies with Part 15 of the FCC Rules
                                                   Electrical
    THD ≤20%
    Driver Constant Current, Non-Isolated Driver, 50/60 Hz, 120-277V, 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V: 0.04A
    Power Factor ≥0.9
    Input Voltage 120-277V
    Operating Frequency 60Hz
    Dimming No

      Note All values are typical (tolerance +/- 10%)
