RAB Lighting

RAB HA4 12W 4" Regress Luminaire Selectable CCT

RAB HA4 12W 4" Regress Luminaire Selectable CCT

$39.20
$39.20
Sale Sold out
Shipping calculated at checkout.
Size
Wattage
Color Temperature

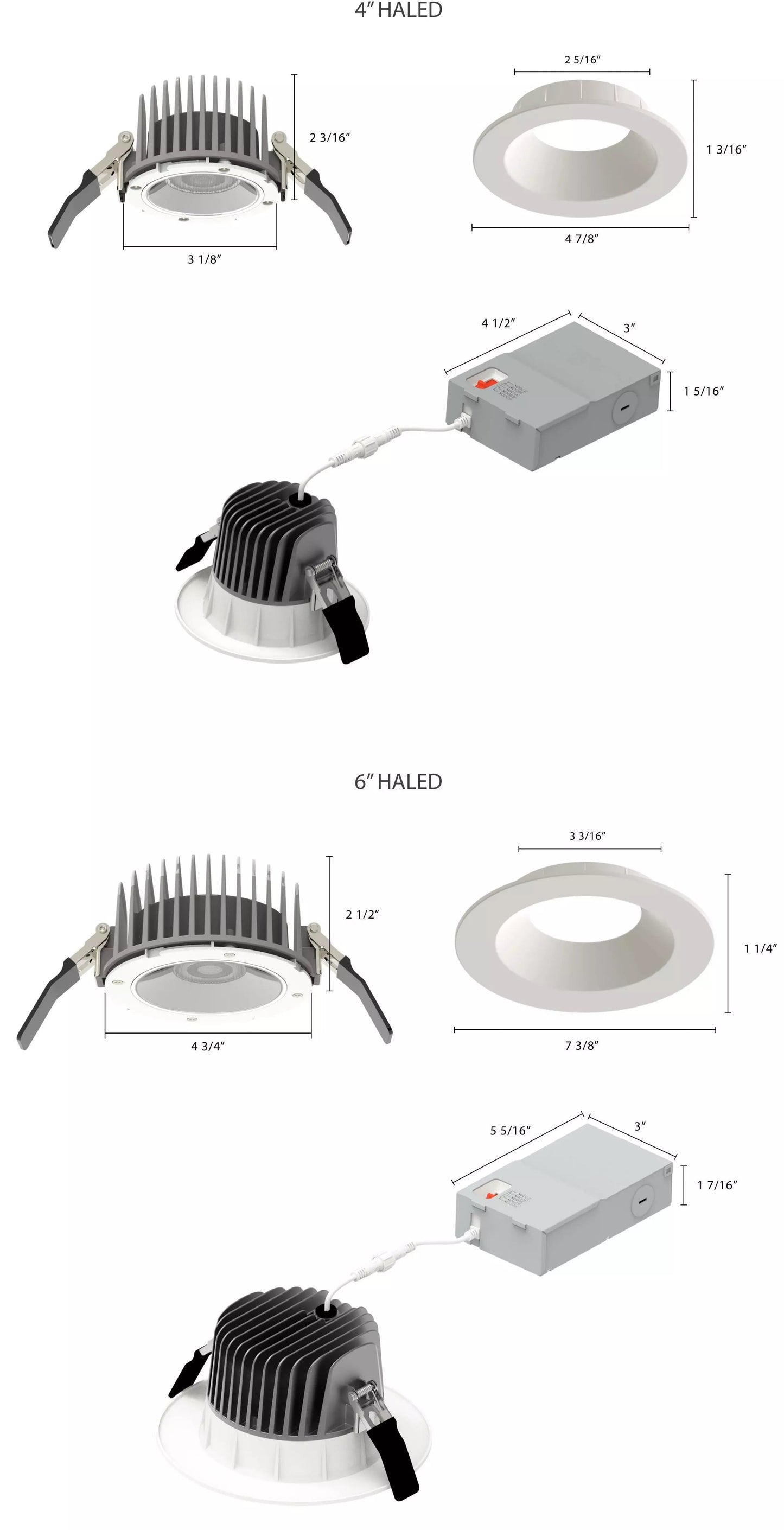

4" Downlight Module for HALED

Click Here for Changeable Trim

  • 45-degree optical lens provides uniform light distribution
  • Dimmable, see Dimmer Compatibility List
  • IC and airtight rated
  • Separate snap-in color trims available in round, square, smooth and baffle for in-field installation
  • 50,000-Hour LED lifespan
  • 5-Year, no compromise warranty



Spec Sheets

Spec Sheet

Installation Instructions

Info
 Product Type  Recessed Downlights
Wattage 12W
Lumen 950-1060
Color Temp. Field Adjustable
CRI 90
L70 Lifespan 50,000
Material Metal
Finish  Selectable Trim Ordered Seperately
Style Smooth
LED Edge-lit LED
Beam Angle 45°
Mounting Recessed ceiling
IC Rated
 Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Additional Info
                                               Compliance
 Safety Listing UL Listed
Environment Rating Suitable for Wet Location
T24 JA8 Compliant Can be used to conform with the requirements of California Title 24 Part 6.
Lawful for sale in California Yes
IC Rated Yes
Energy Star Compliant This product is ENERGY STAR® Version 2.2 Certified.
Air Tight Airtight per ASTM-E283-04
FCC Complies with Part 15 of the FCC Rules
                                               Electrical
THD ≤20%
 Power Factor ≥0.9
Input Voltage 120V
Operating Frequency 60Hz
Driver
 120V, 60 Hz, 0.11A
Dimming Yes

  Note All values are typical (tolerance +/- 10%)
