RAB Lighting

RAB X34 15W LED Flood Light Knuckle Mount 30K/40K/50K

RAB X34 15W LED Flood Light Knuckle Mount 30K/40K/50K

Regular price $53.25
Regular price Sale price $53.25
Sale Sold out
Shipping calculated at checkout.
Mount Style
Color Temperature

X34 15W 1800 Lumen Flood Light 120V

This Item has been discontinued. Please click here for the updated Model

  • General purpose floodlight
  • Very wide 7H x 7V NEMA distribution
  • Low profile and lightweight
  • IP65 rating protects against dust and water

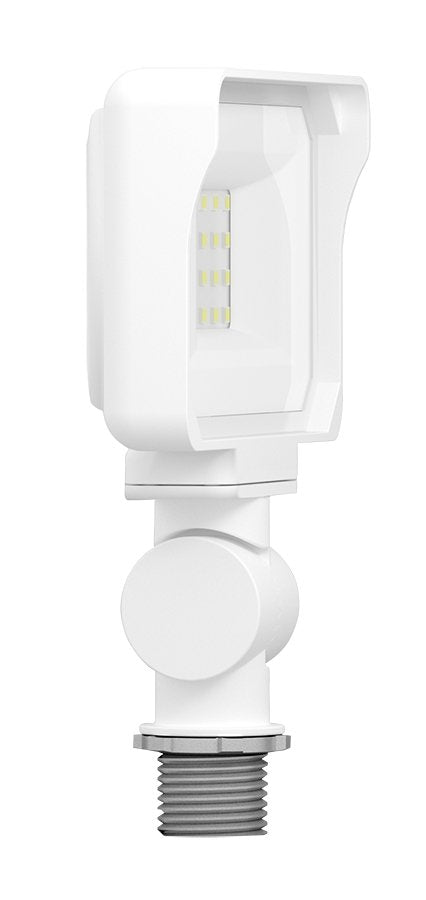

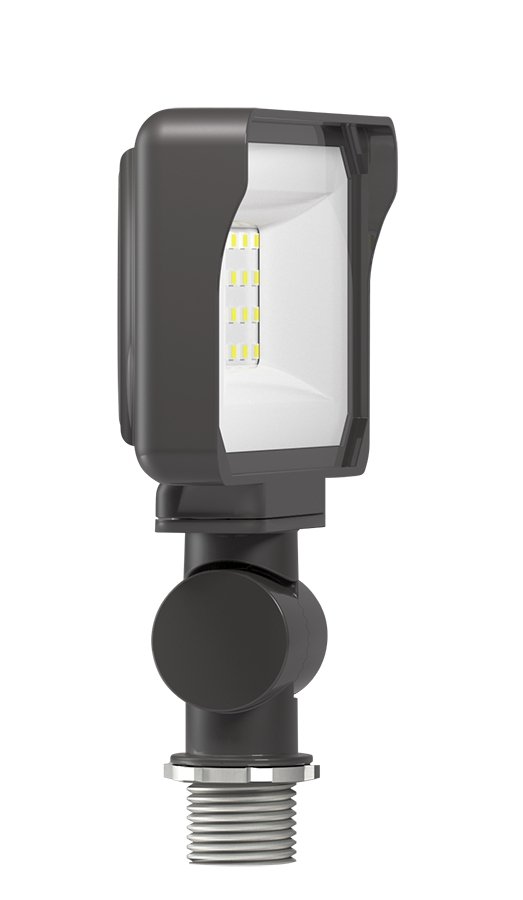

  • White Or Bronze Finish
  • Available in 30K 40K or 50K
  • Equivalent to 70W Metal Halide

Spec Sheet

Product PDF

Bronze 30K 40K 50K
White 30K 40K 50K

Installation Instructions

 Product Type  Flood Light
Wattage 15W
Lumen 1650-1800
Color Temp. 3000K 4000K 5000K
CRI 80
L70 Lifespan 50,000
Housing Material Die-cast aluminum
Finish  White | Bronze

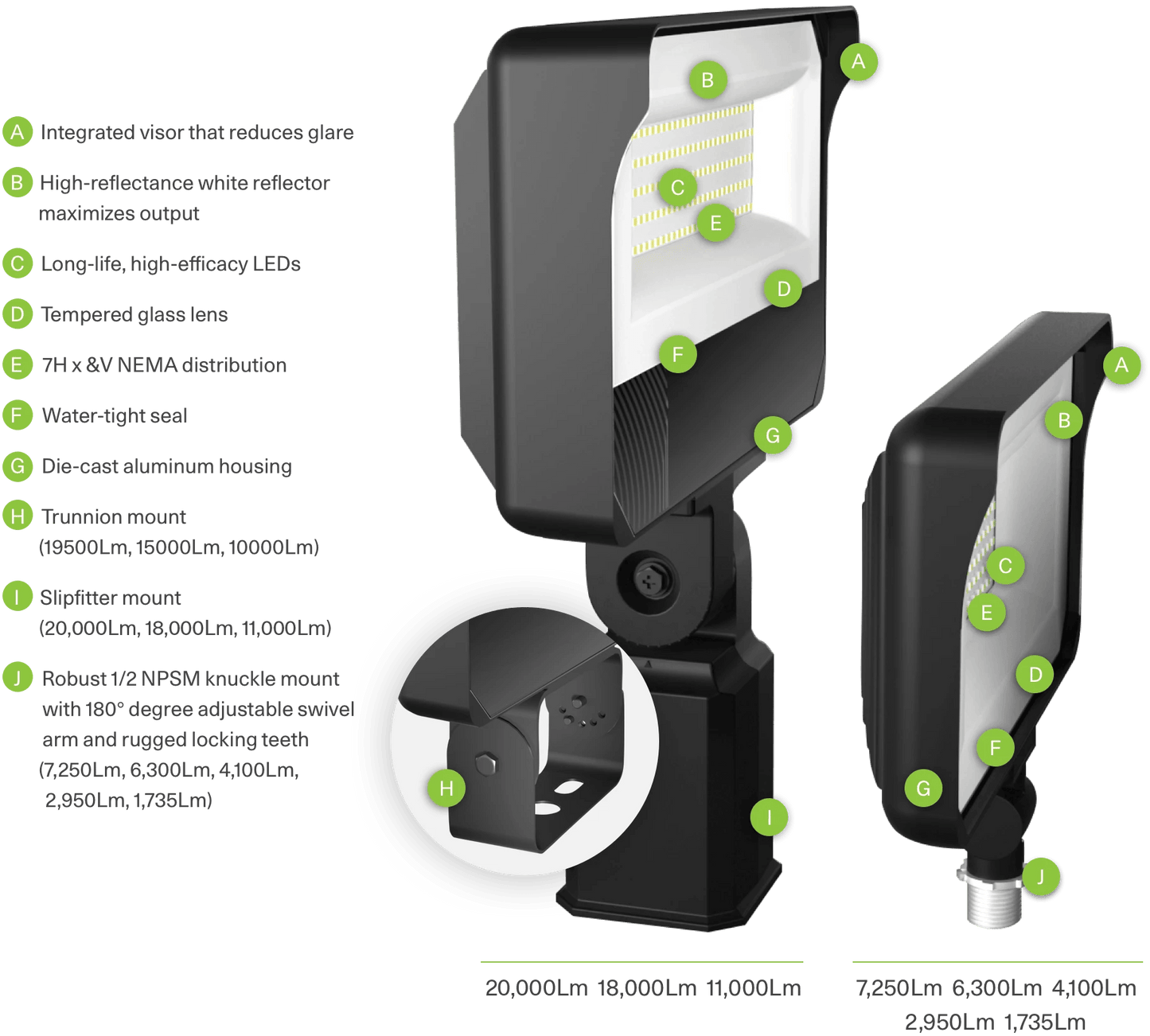

Mounting Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
Style Knuckle Mount
Lens Tempered glass
Beam Angle NEMA Beam Spread of 7H x 7V
Additional Info


UL Listed Suitable for wet locations. Suitable for ground mounting
IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
DLC Listed This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements. DLC Product Code: PBFBXX1P
Driver Constant Current, 120V, 60 Hz, 120V: 0.13A
THD 9.29% at 120V
Power Factor 99.5% at 120V
Stepped Dimming Integrated/embedded revise Phase-Cut stepped luminance-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and wave form to produce varying light output. Controller is remote located from fixture or junction box, or can be located by the electrical panel.
Surge Protection 2kV
