RAYHIL RAD15 7W 1.5" Recessed LED Downlight 27K-40K

RAYHIL RAD15 7W 1.5" Recessed LED Downlight 27K-40K

$79.99
$89.99 $79.99
Sale Sold out
Shipping calculated at checkout.
Size
Style
Color Temperature

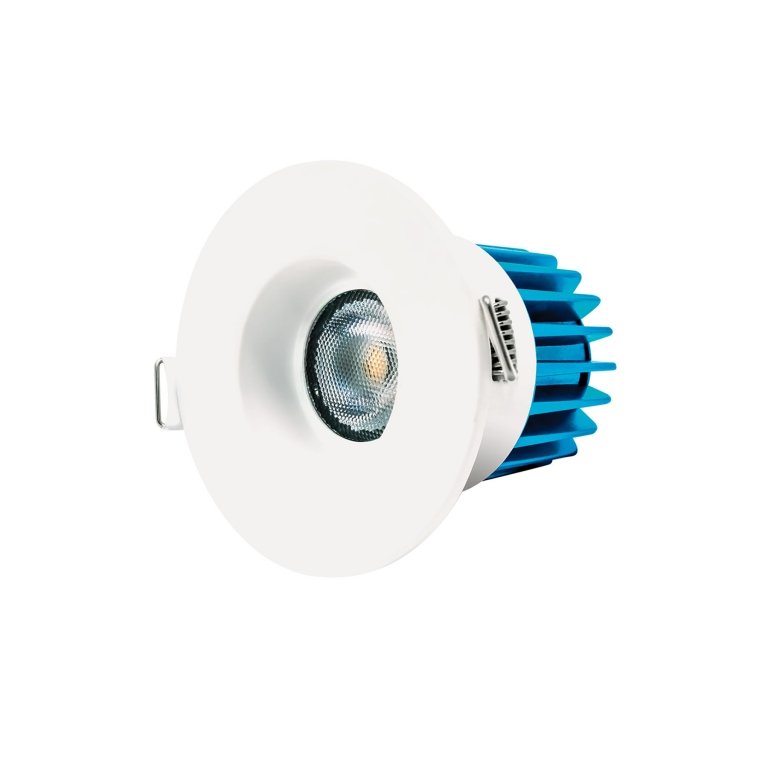

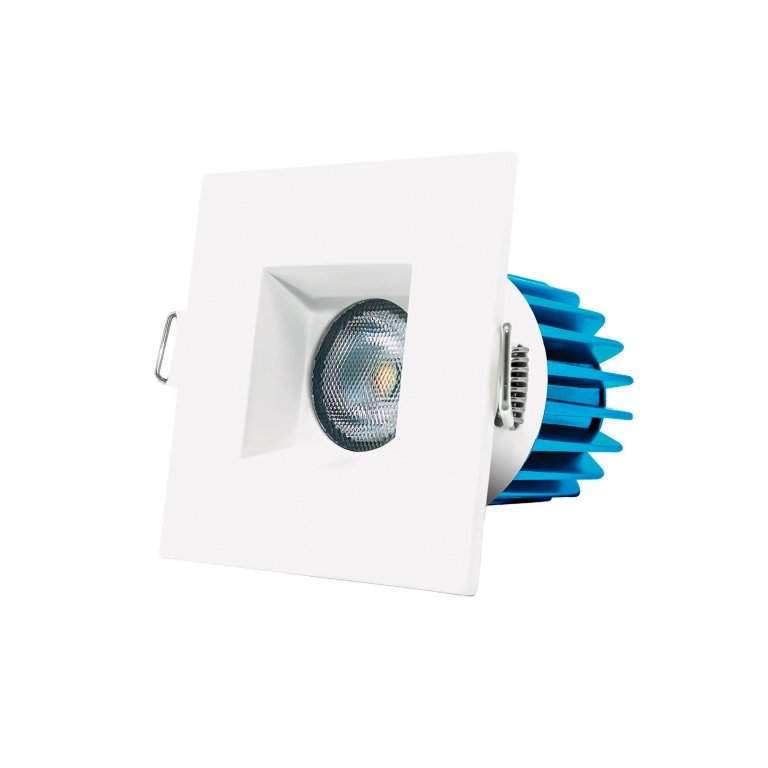

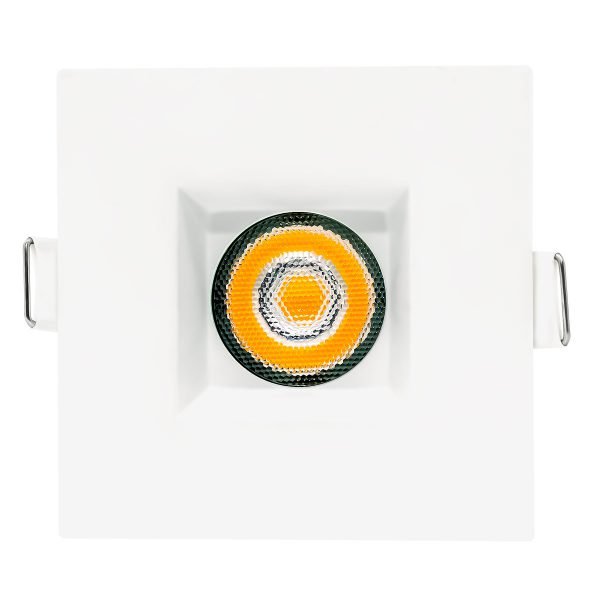

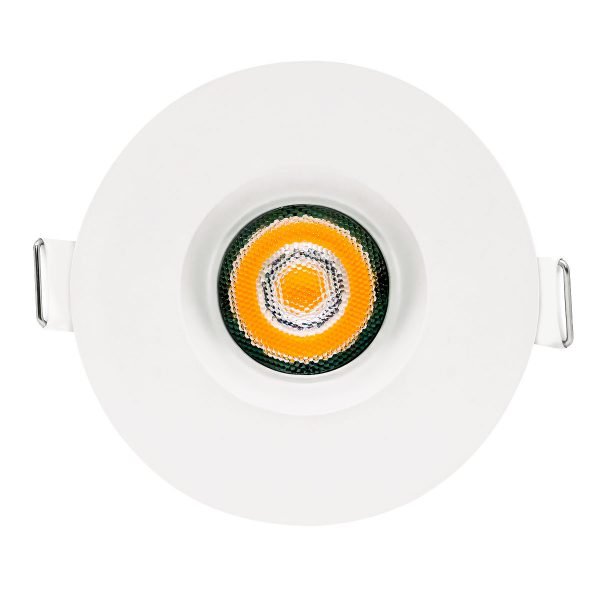

Rayhil RAD15 7W 1.5" Recessed LED Downlight

The SONIC 1.5" is a 7W recessed LED downlight with field-selectable CCT (2700K / 3000K / 3500K / 4000K) - one fixture covers four color temperatures. Air-tight, IC rated and wet-location approved, it installs without a downlight housing, even in insulated ceilings.

  • CCT: 2700K / 3000K / 3500K / 4000K
  • Air-tight and wet location approved
  • Type IC rated - approved for direct contact with insulation
  • Downlight housing is not required even for insulated ceilings
  • Spring loaded mounting clips
  • Quick connect wire allows for efficient installation
  • Isolated driver inside junction box
  • New construction plate available (NCH150*)
  • Optional Emergency Backup
  • 5 year warranty

*Click Here for Construction Plates

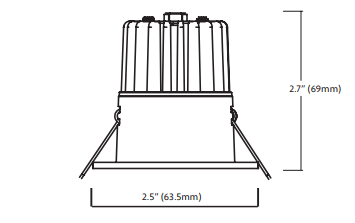

Dimensions
Square Dimensions
Length (in.) 2.50"
Width (in.) 2.50"
Height (in.) 2.70"
Round Dimensions
Circ. (in.) 2.50"
Height (in.) 2.70"
Spec Sheets

Spec Sheet

Info
Wattage 7W
Lumen 600lm
Input Voltage 120 / 277V
Color Temp 27K, 30K, 35K, 40K
Efficacy(LPW) >82 lm/W
CRI >90
Beam Angle 38°
Dimming 5% - 100% Triac / 0-10V
Lamp Life 50,000hr
Environment IP65 Wet Location
Material Aluminum Body with Anodized Heat Sink
Operating Temperature -4°F - 104°F
Cutout 2.00"
