RAYHIL RAD2H 24W Dual Head LED Recessed Downlight 38° Selectable CCT

RAYHIL RAD2H 24W Dual Head LED Recessed Downlight 38° Selectable CCT

Regular price $199.99
Regular price $219.99 Sale price $199.99
Sale Sold out
Shipping calculated at checkout.
Color
Color Temperature
Wattage

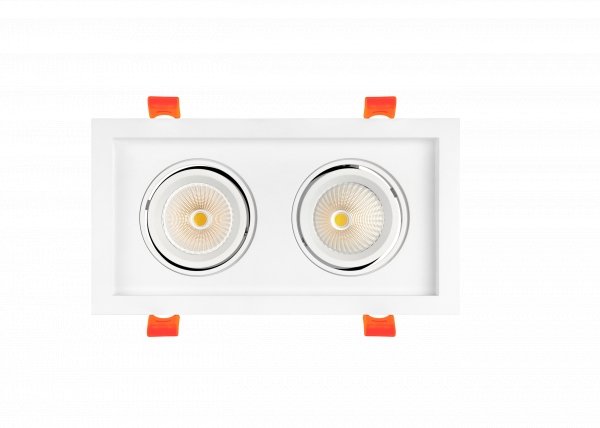

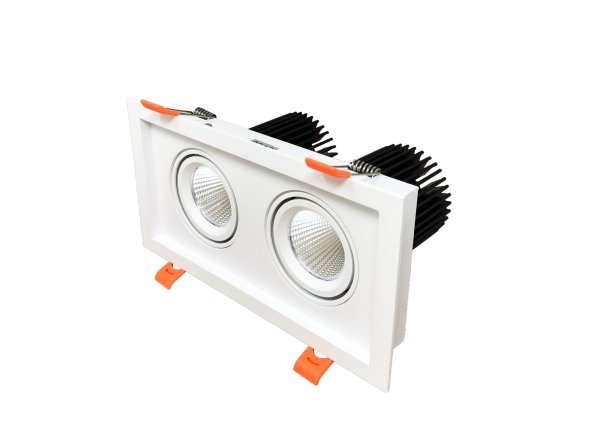

DUAL HEAD RECESSED LED DOWNLIGHT 38°

The Rayhil Sonic Multiple Series cultivates a fresh unique look that defines any commercial or residential space. The flawless engineering of the extruded aluminum heat sink ensures optimal heat dissipation and LED life. The Multiple Head Downlights are Type IC rated – approved for direct contact with insulation and have an isolated driver inside a junction box.
Additionally, they are air-tight and wet location approved. The gimbal can rotate 360 degrees horizontally and tilt 30 degrees. Available in both 2-Head and 3-Head as well as multiple color temperature and trim options.


  • Air-tight and damp location approved Type IC rated
  • Approved for direct contact with insulation Isolated driver inside junction box
  • New Construction plate available (NCH2H)

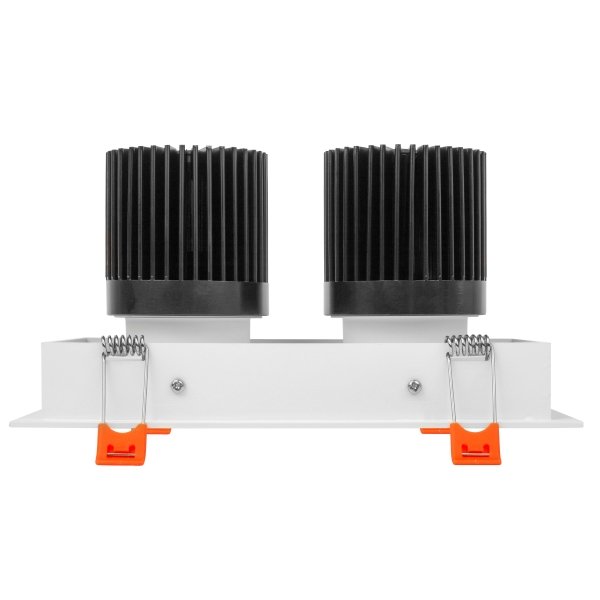

  • Extruded aluminum heat sink ensures optimal heat dissipation and LED life
  • 360° rotatable Gimbal with 30° horizontal tilt
  • Selectable CCT (30K/35K/40K)
Click Here for New Construction Plate
    Dimensions
    Length (in.) 8.00"
    Width (in.) 4.25"
    Height (in.) 4.00"
    Cutout
    Length (in.) 7.50"
    Width (in.) 3.75"


    Spec Sheet

    Spec Sheet

    Installation Instructions

    Info
    Wattage 24W (2-12W Luminaires)
    Lumen 1750lm
    Efficacy(LPW) >75 lm/W
    Color Temp 30K/35K/40K
    CRI >90
    Beam Angle 38°
    Dimming Triac/ 0-10V
    Lamp Life 50,000hr
    Environment Damp Location
