Rayhil

RAYHIL New Construction Plate for Sonic Multi Head Downlights

RAYHIL New Construction Plate for Sonic Multi Head Downlights

$9.99
$11.99 $9.99
Sale Sold out
Shipping calculated at checkout.
Style

MULTI HEAD MOUNTING PLATE

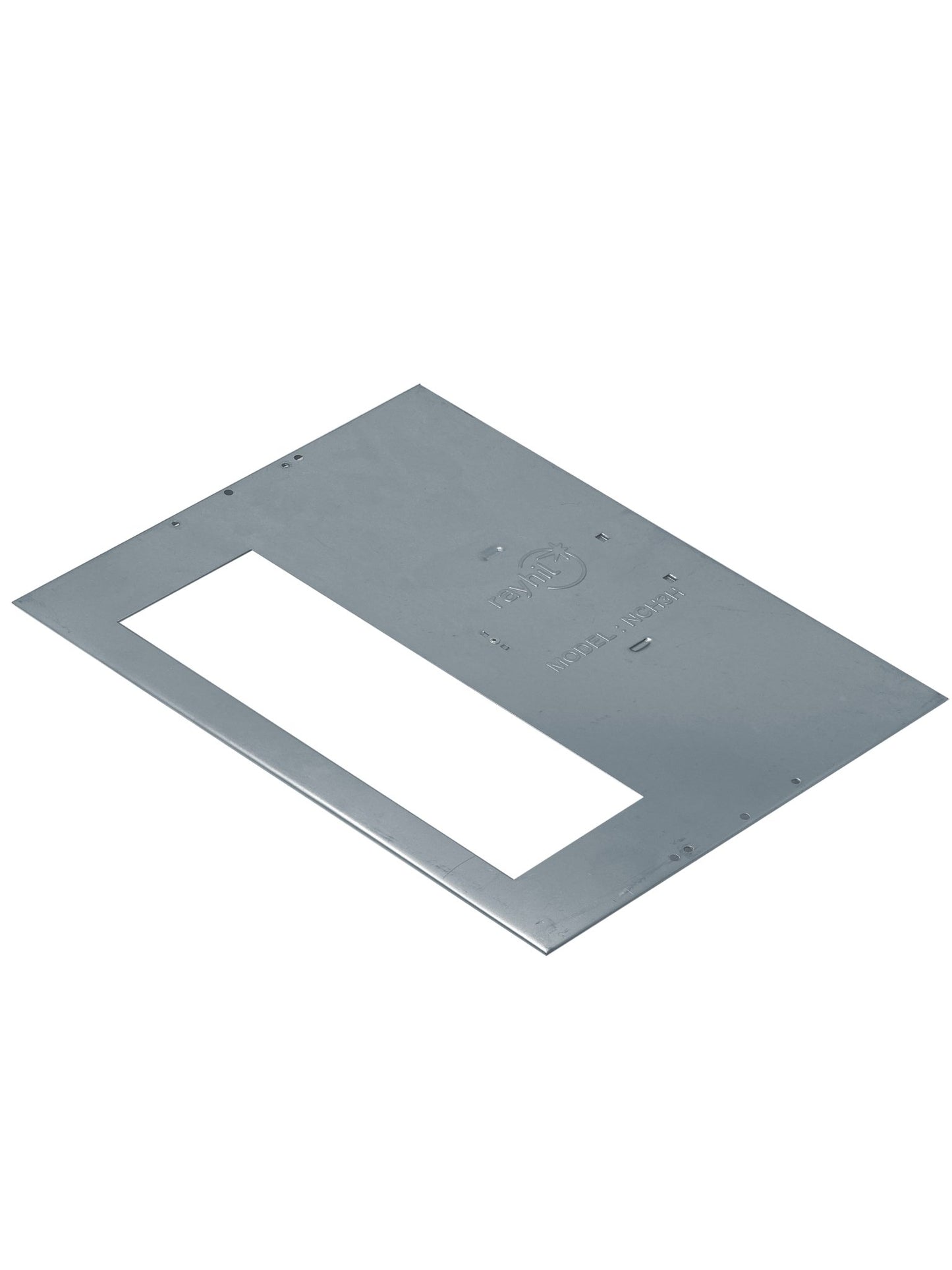

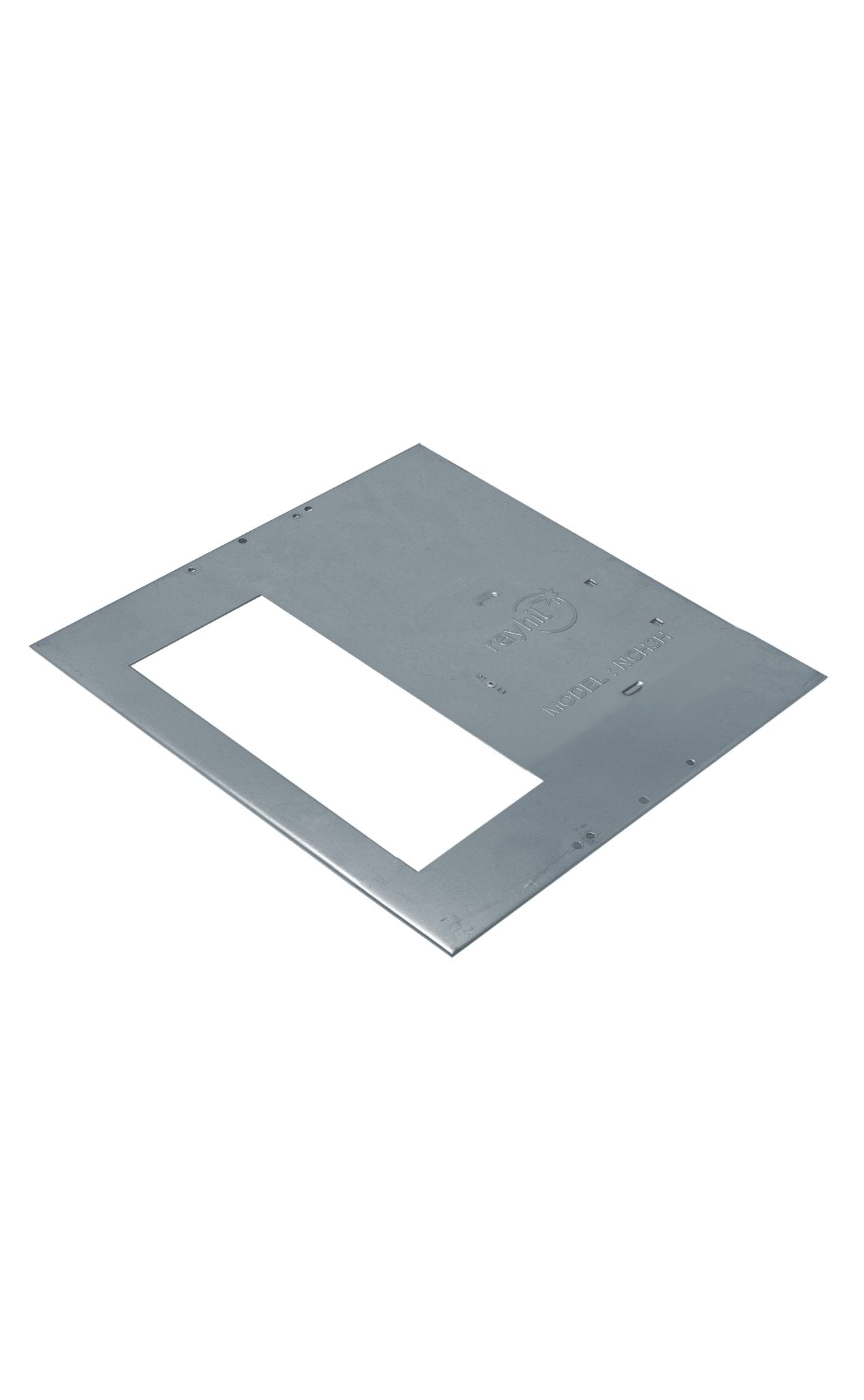

Constructed out of galvanized steel, this pre-mounting plate is used to mount the 2 or 3 head Rayhil downlight. The plate includes mounting holes and tracks to satisfy any type of installation. Alignment notches on plate help align multiple plates. Plate also includes a pressure clip to secure driver to plate.

Compatible with

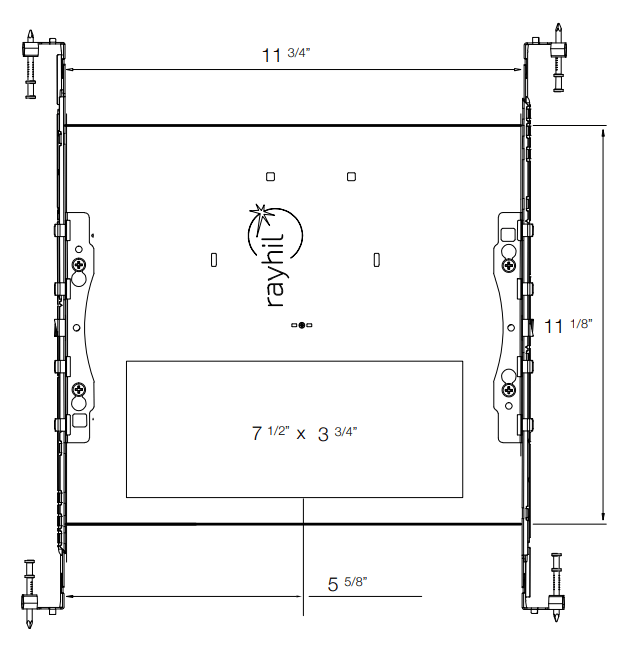

2 Head Plate Dimensions
Length (in.) 11 3/4"
Width (in.) 11 1/8"
Cutout Length (in.)-Width (in.) 7.50"-3.75"

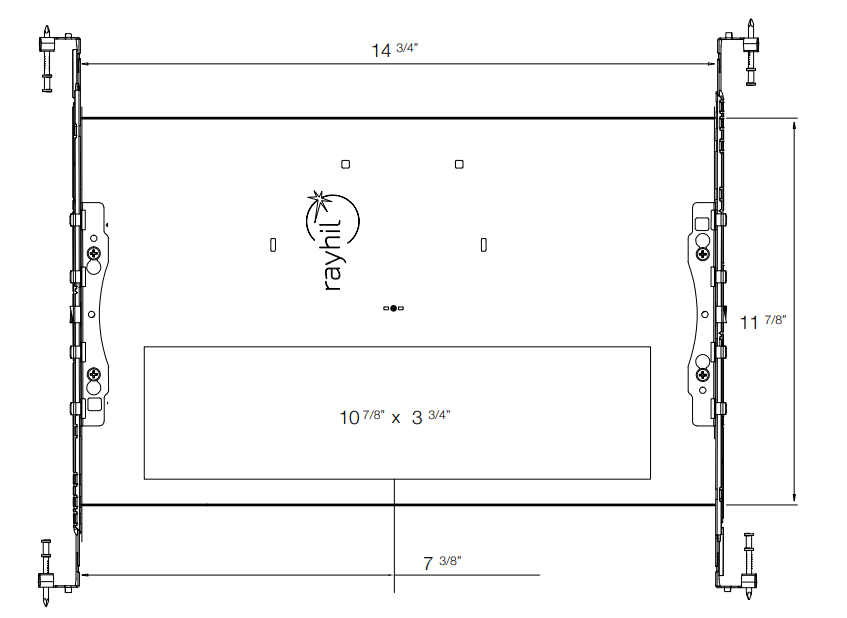

3 Head Plate Dimensions
Length (in.) 13 3/4"
Width (in.) 11 7/8"
Cutout Length (in.)-Width (in.) 10 7/8"-3 3/4"


Spec Sheet

2 Head Plate / 3 Head Plate

Info
Wattage 24/36W (2/3-12W Luminaires)
Lumen 1750/2700lm
Efficacy(LPW) >75 lm/W
Color Temp 30K/35K/40K
CRI >90
Beam Angle 38°
Dimming Triac/ 0-10V
Lamp Life 50,000hr
Environment Damp Location
