RAYHIL RAD3H 36W Triple Head LED Recessed Downlight 38° Selectable CCT

RAYHIL RAD3H 36W Triple Head LED Recessed Downlight 38° Selectable CCT

$289.99
$309.99 $289.99
Sale Sold out
Shipping calculated at checkout.
Color
Color Temperature
Wattage

SONIC TRIPLE HEAD RECESSED LED DOWNLIGHT 38°

  • Air-tight and damp location approved Type IC rated
  • Approved for direct contact with insulation Isolated driver inside junction box
  • New Construction plate available (NCH3H)
  • Extruded aluminum heat sink ensures optimal heat dissipation and LED life
  • 360° rotatable Gimbal with 30° horizontal tilt
  • Selectable CCT (30K/35K/40K)
Click Here for New Construction Plate

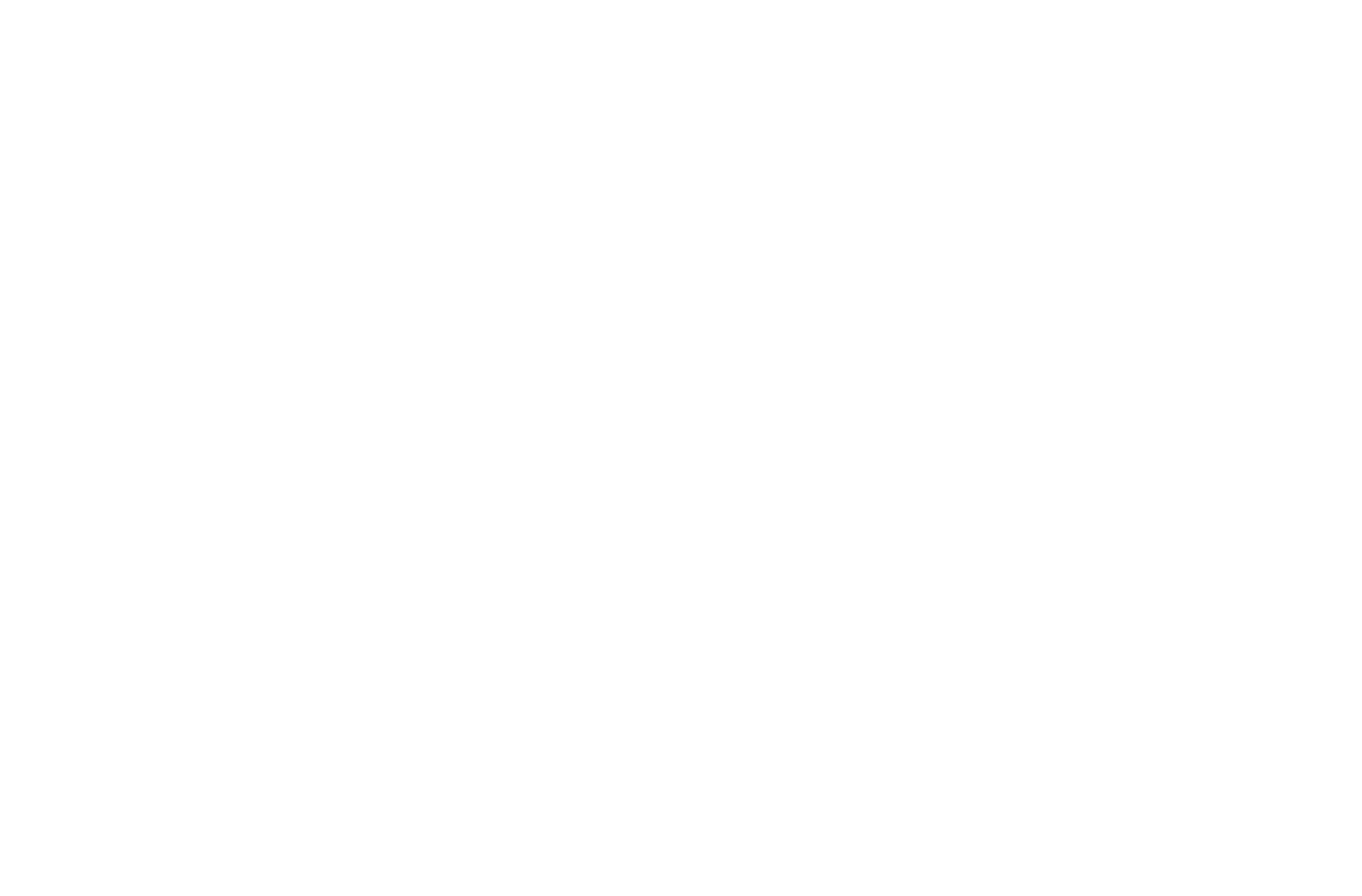

    Dimensions
    Length (in.) 11.50"
    Width (in.) 4.25"
    Height (in.) 4.00"
    Cutout
    Length (in.) 10 7/8"
    Width (in.) 3 3/4"


    Spec Sheet

    Spec Sheet

    Info
    Wattage 36W (3-12W Luminaires)
    Lumen 27000lm
    Efficacy(LPW) >75 lm/W
    Color Temp 30K/35K/40K
    CRI >90
    Beam Angle 38°
    Dimming Triac/ 0-10V
    Lamp Life 50,000hr
    Environment Damp Location
