Absolume LM-LFS 8W LED 4" X 1' Recessed Linear Flat Panel Selectable CCT 2 Pack

Absolume LM-LFS 8W LED 4" X 1' Recessed Linear Flat Panel Selectable CCT 2 Pack

Regular price $319.98
Regular price $339.99 Sale price $319.98
Sale Sold out
Shipping calculated at checkout.
Size
Wattage
Color Temperature

4 IN X 1FT Recessed Linear Flat Panel- 2 Pack

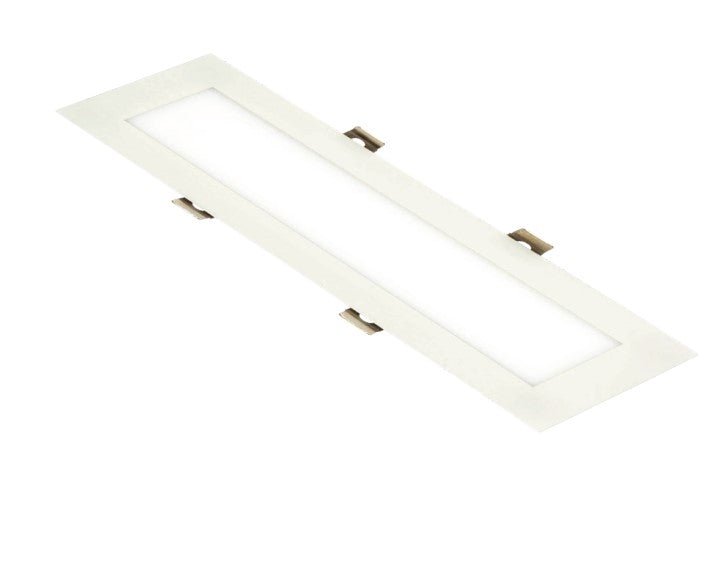

Traditional linear panels have been completely revamped in this sleek, modern style. The super-narrow frames, shallow profile, and greater surface area result in smoother, more luminous output.

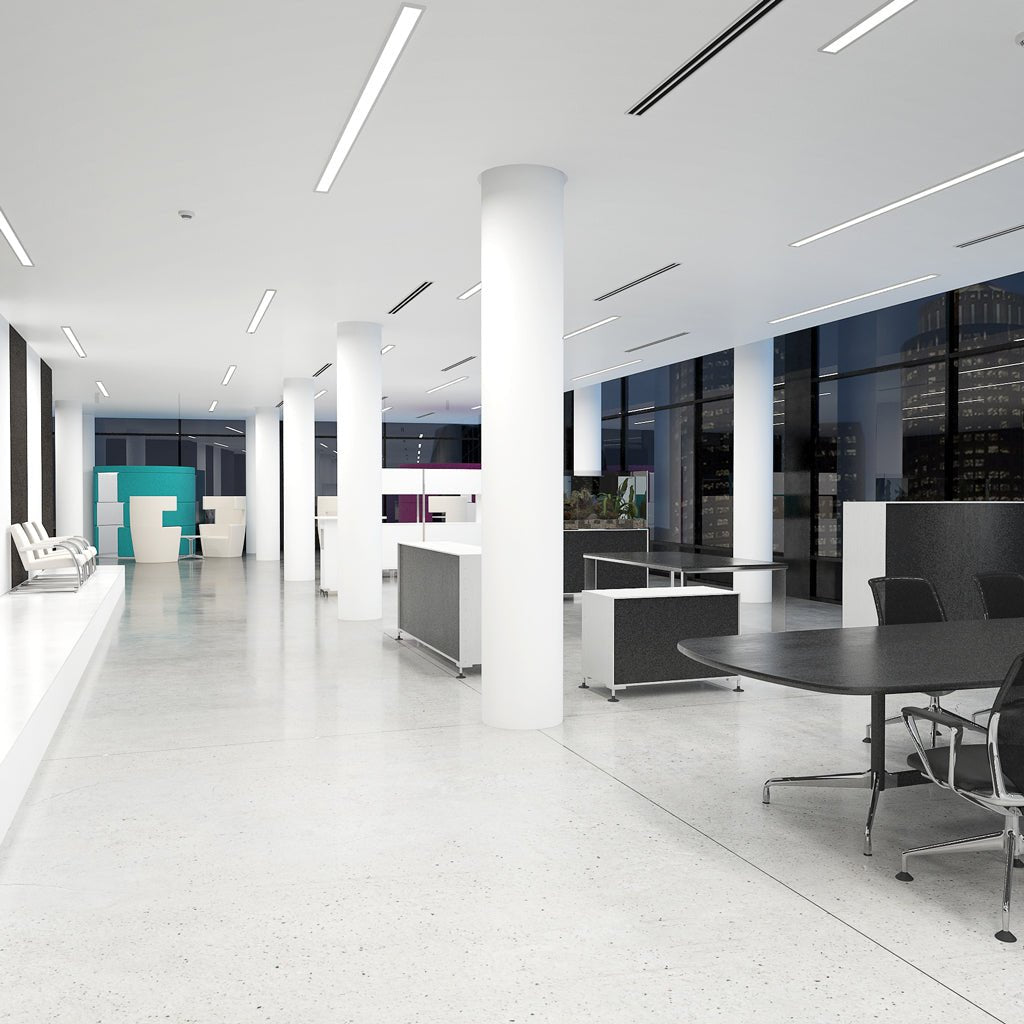

The linear flat panel provides a sleek modern linear light with edge-lit construction to provide a soft glare-free solution. It is designed to be recessed in shallow plenum and can be used in many lighting applications. Uses include schools, offices, retail, healthcare and other commercial and residential spaces.

  • Seamless corners to prevent light leak in the corners.
  • Narrow frame to provide a sleek finish and maximize lighting surface area.
  • Edge-lit construction provides a smooth even illumination across the face of the lens.
  • Diffusers made of durable PMMA, resists yellowing and ensures a uniform light output.
  • The satin white lens provides a uniform illumination as well as scratch and impact resistance.
  • Low profile design provides increased installation flexibility, especially in restricted plenum spaces.

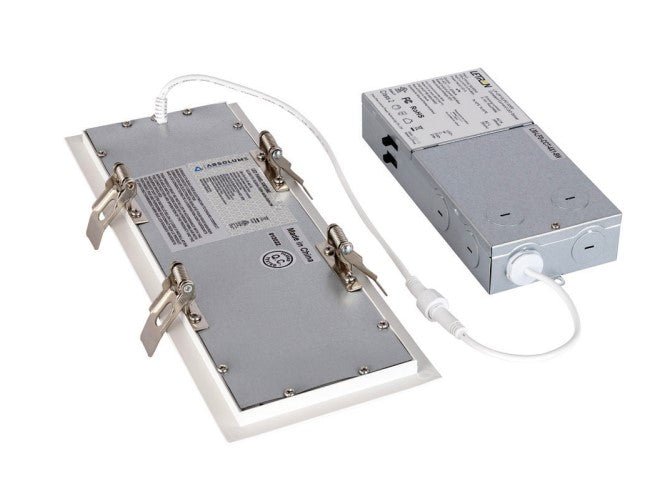

  • The fixture includes integral spring clips for installation in sheetrock.
  • Due to Manufacturers conditions these are sold in packs of 2

Spec Sheet

Spec Sheet

Installation Instructions

Info
  Dimensions
Length (In.) 13.50"
Width (In.) 4.50"
Height (In.) (Max) 0.40"
Cut-Out Dimensions
Length (In.)  12.75"
Width (In.) 3.75"

Wattage 8W
Lumen 865-889
Color Temp. 3500K-5000K
Efficacy 112 lm/W
CRI >80
Dimming
0-10V
Mounting Recessed - includes integral spring clips for installation in sheetrock.
Warranty
5 Year
