American Lighting

American Lighting 2W LED Brick Light 30K

American Lighting 2W LED Brick Light 30K

Regular price $107.10
Regular price Sale price $107.10
Sale Sold out
Shipping calculated at checkout.
Mounting
Color Temperature
Wattage

2W Brick Light 30K

Line voltage (100-277V) version of the classic brick light with Warm White LEDs available in one style and two finishes. Metal rough in housing has integrated rubber gasket, threaded knockouts and built-in ground wire. Two faceplate options are available (sold separately). Each includes an Allen/hex wrench and tamper proof screws for vandal resistance, and matching screw covers for a finished look.

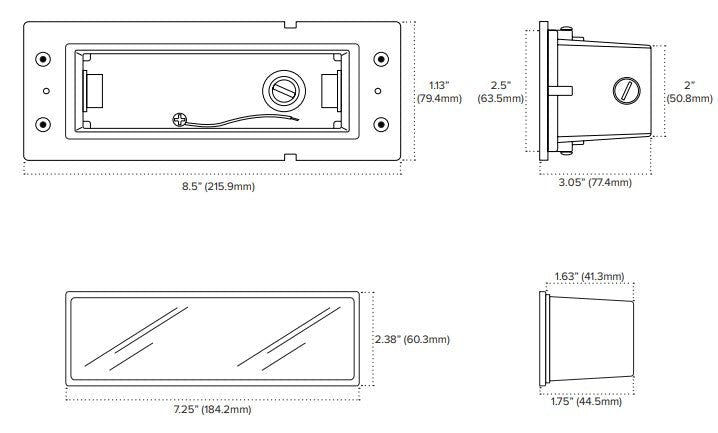

 Dimensions
Length (In.) 7.25"
Width (In.) 2.38"
Depth (In.) 1.75"
  • 3000K color temperature with 70+ CRI
  • Up to 135 lumen output consuming 3W per module
  • Die-cast zinc magnesium rough-in housing with durable painted finish
  • Three 1/2” NPS knockouts with plugs
  • Sturdy plastic, fully sealed light module with built-in driver for AC input
  • Available in Dark Bronze or Stainless faceplate finishes
  • Durable powder coated (Dark Bronze) and plated (Stainless) faceplates
  • cETLus Listed for outdoor wet locations
  • 30,000 hours rated life


      Spec Sheet

      Spec Sheet

      Installation Instructions

      Housing Instructions

      Info
      Voltage 120-277V AC, 60Hz
      Watt 2W @120V / 3.3W @277V
      Lumen 135Lm (Light Module)
      CRI 70+
      Color Temp. 30K
      Mounting

      Recessed Mount

      Rough In Housing Required, Sold separately

      Dimming Non-Dimmable
      Life Hours 30,000 Hours
      Trim Color
      Stainless Steel, Dark Bronze. Sold Seperately


      Additional Info
      Part Number Description

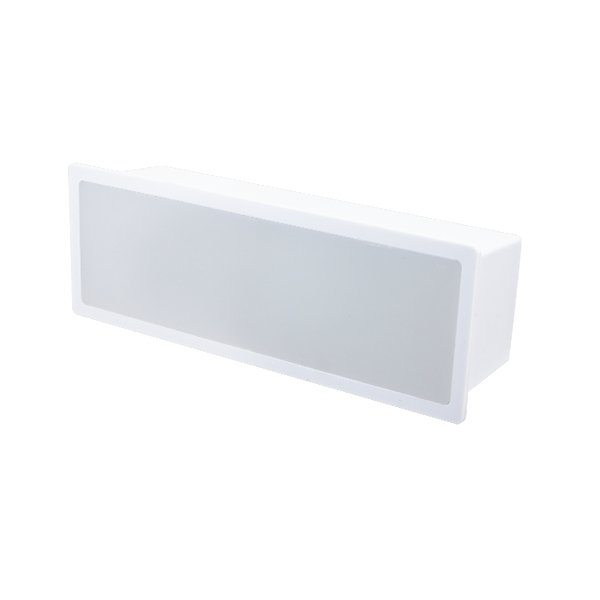

      BB2-LED-WW Brick Light Module
      BB2-HSG Rough-In Housing (required)

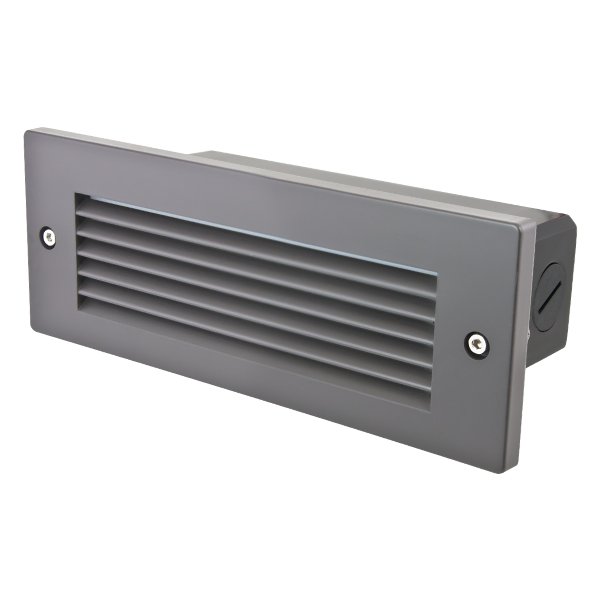

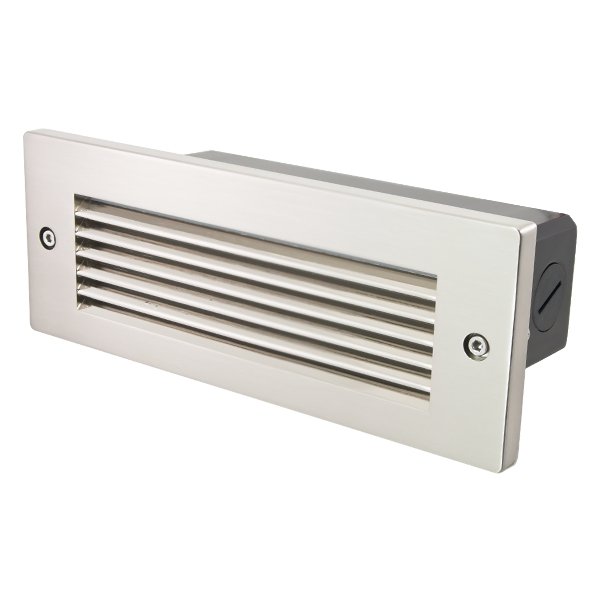

      BB2-HL-SS Horizontal Louver Faceplate - Stainless Steel
      BB2-HL-DB Horizontal Louver Faceplate - Dark Bronze

      Color Temp.- 30K



      Listings cETLus Listed
      Location Rating Wet Location
