American Lighting HTMR-COB 16FT 3W/FT COB Max Run 27-50K

American Lighting HTMR-COB 16FT 3W/FT COB Max Run 27-50K

Regular price $870.48
Regular price Sale price $870.48
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

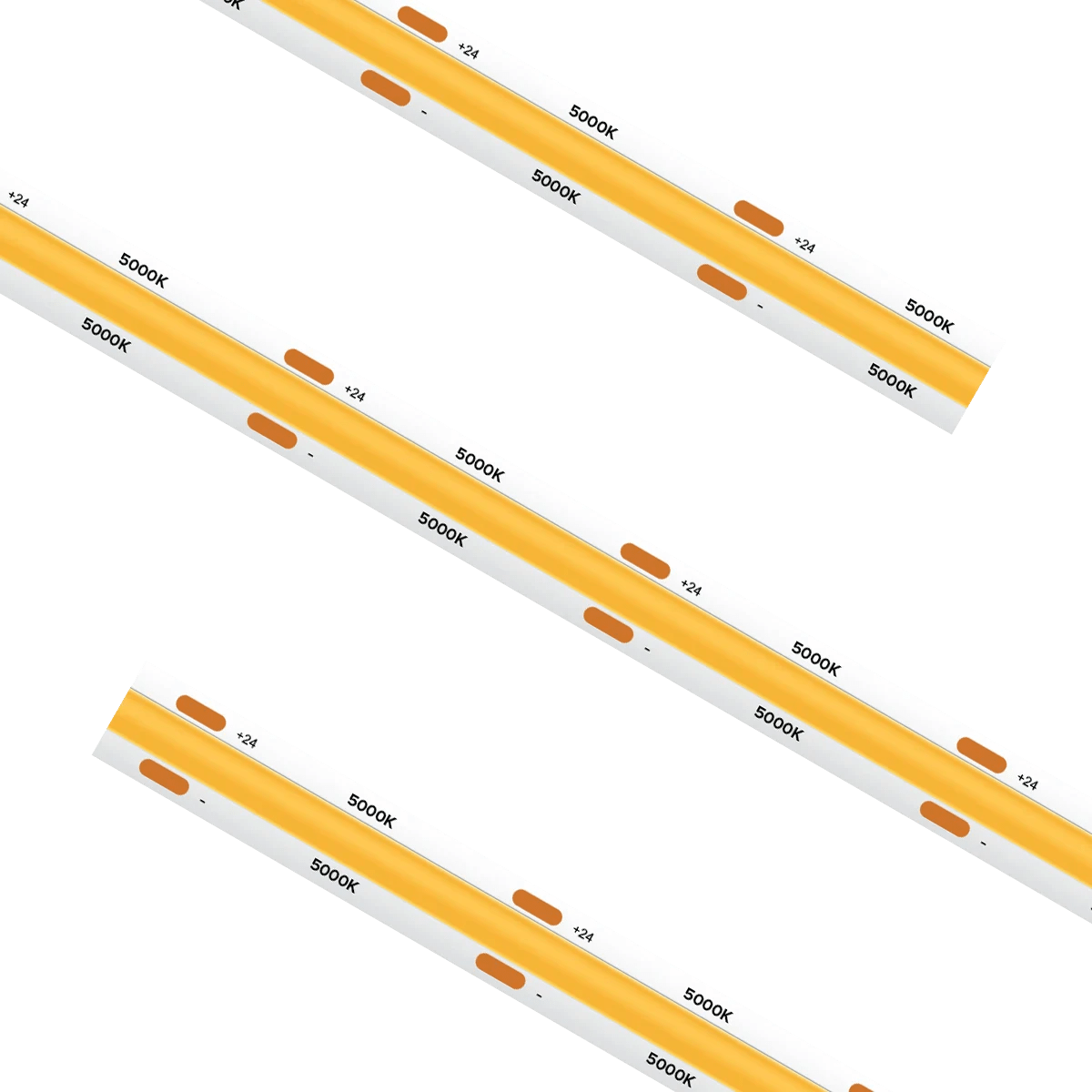

High Output Max Run COB Tape Light


Ideal for extensive applications, the Max Run series simplifies setup by reducing the need for drivers and connections. Perfect for illuminating coves, corridors, lobbies, and retail spaces, Max Run tape offers a maximum length of 49.2 feet.

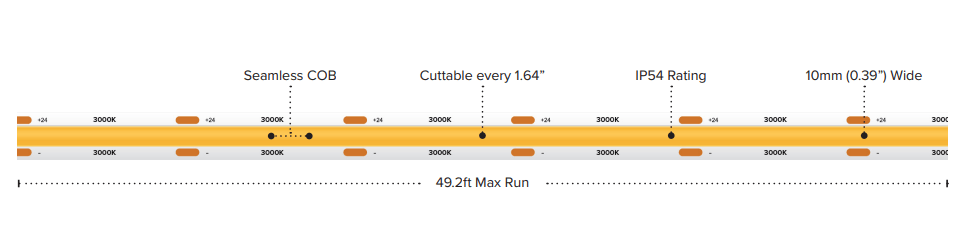

  • Achieve longer max runs perfect for larger installations while still benefiting from the seamless look of COB
  • Excellent color rendering (90+ CRI)
  • Up to 280 lumens per foot performance
  • Consuming up to 3 watts per foot
  • Max run lengths up to 49.2 feet and cuttable every 1.64”
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life

16.4ft Reels (IP54) Include: Attached 6ft Lead Wire / (2) TL-CONKIT / (1) TL-BLKS / (2) TL-2PWR-HD


Spec Sheet

Spec Sheet

Installation Instructions

Info

PART NUMBER CCT CRI Cutting LUMENS MAX RUN IP Rated
HTMR-COB-UWW-49
2700K 90+ 1.64" 300Lm/ft 49.2FT IP54
HTMR-COB-WW-49
3000K 90+ 1.64" 300Lm/ft 49.2FT IP54
HTMR-COB-NW-49 3500K 90+ 1.64" 300Lm/ft 49.2FT IP54
HTMR-COB-WH-49 4000K 90+ 1.64" 300Lm/ft 49.2FT IP54
HTMR-COB-CW-49 5000K 90+ 1.64" 300Lm/ft 49.2FT IP54


Voltage 24V DC
Wattage 3W/FT
Lumen Up to 300L/FT
CCT 27-50K
CRI 90+
Max Run 49.2FT
Cut Interval 1.64” (42mm)
IP Rating IP54 - Coated
Dimming TRIAC / ELV (5-100%)
Dimension 10mm (0.39”) W x 2mm (0.08”) H
Certifications cULus Listed - Dry / Damp Location
Life Hours 50,000 Hours


Accessories
TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
TL-2PWR-HD 6’ HD Power Feed (IP54)
TL-2JUMP6-HD 6” HD Linking Cable
TL-2JUMP24-HD 24” HD Linking Cable
TL-2SPL-HD HD Tape to Tape Splice Connector
TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
WIRE-15-2PIN 15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
LVSB-2PIN In-Line Splice Terminal Block
RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
