American Lighting LED5 Complete Undercabinet Lighting Selectable CCT

American Lighting LED5 Complete Undercabinet Lighting Selectable CCT

Regular price $71.91
Regular price Sale price $71.91
Sale Sold out
Shipping calculated at checkout.
Color Temperature

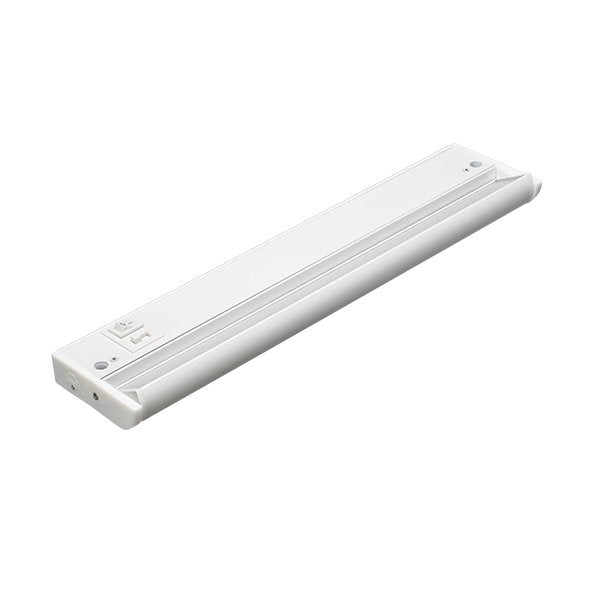

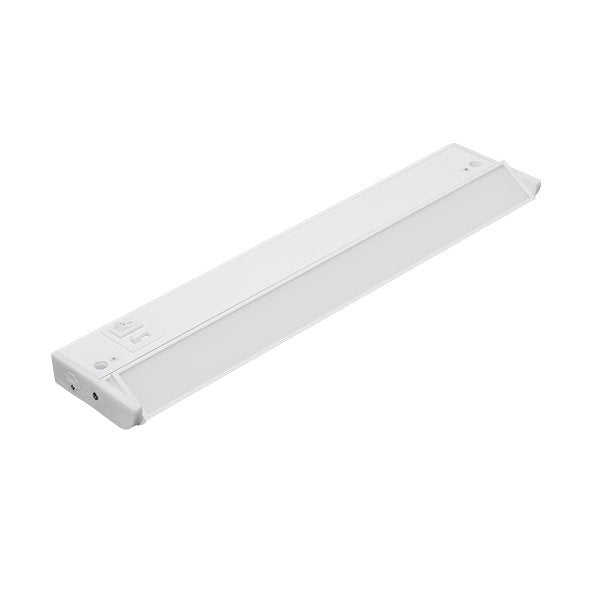

Adjustable CCT LED Under Cabinet Light

Click Here for the LED5 Under Cabinet Light Accessories

This adaptable, adjustable fixture allows for a wide range of illuminated
area regardless of installation location. The fixture produces up to 1050
lumens and is field-switchable to five different color temperatures. With a
pivot angle of ±32°, the LED 5-Complete promises ultimate flexibility without
compromising performance.

  • Field-switchable 5CCT (2700K | 3000K | 3500K | 4000K | 5000K)
  • High color rendering index of 90+ CRI
  • 20V AC input
  • Low power consumption not exceeding 16.5W
  • Linkable up to 150W via jumpers or end-to-end connectors
  • Surface mount ultra-low profile
  • 35,000 hour rated life
  • cETLus listed for dry locations

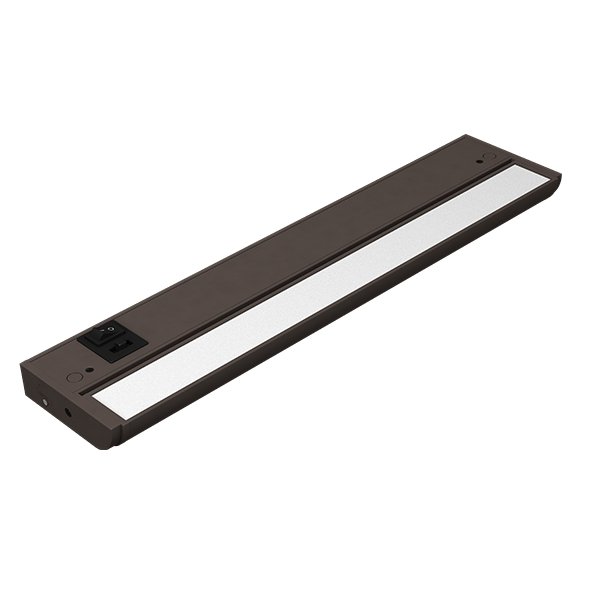

    Finish White, Dark Bronze
    Wattage 7W / 11W / 15W / 16.5W
    CCT (Kelvin) 5CCT (27K 30K 35K 40K 50K)
    Color Temperature Selectable
    Length (in.) 10"/16"/24"/32"
    Width (in.) 3.625
    Height (in.) 1.00”
    Indoor or Outdoor Fixture Indoor
    Technology LED
    Wattage 7W / 11W / 15W / 17W
    CCT (Kelvin) 27K-40K
    Color Temperature Selectable
    CRI 90+
    Lumen Output Up to 1050
    Rated Hours 35,000
    Max Run
    Beam Angle 120°
    Dimmable 10-100% TRIAC
    Weight (lb.) 0.60-2.00 Lbs
    Surface Mount
    Fixture Type Under Cabinet
    Operating Temperature -20C (-4F) to a maximum of +40C (+104F)
    Minimum loads may apply. Per the NEC, switched wall outlets cannot be used with wall dimmers.
    Wattage 7W / 11W / 15W / 16.5W
    Height (in.) 1"
    Width (in.) 3.625"
    Length (in.) 10"/16"/24"/32"
    Weight (lbs.) 0.60-2.00

    Additional Info
    Safety Listing cETLus
    Location Rating Dry
    UL Application Undercabinet & Cove
    Energy Star Yes
    California Status JA8 Compliant
