• AML-VTL-UWW-13American Lighting VTL 13FT 7W/FT LED Vega Tape Light 27K-40K
1 1

American Lighting

American Lighting VTL 13FT 7W/FT LED Vega Tape Light 27K-40K

American Lighting VTL 13FT 7W/FT LED Vega Tape Light 27K-40K

$339.30
$339.30
Sale Sold out
Shipping calculated at checkout.
Size
Color Temperature
Wattage

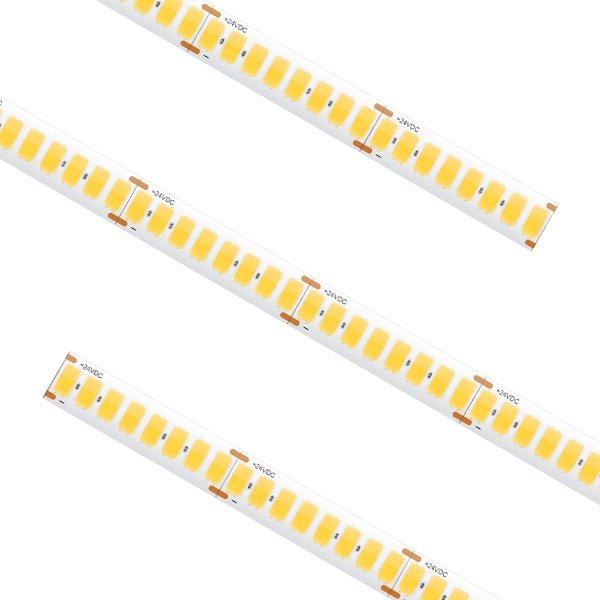

TruLux® Vega Tape Light

Big on brightness, small on form factor. With the Vega series you can achieve all the benefits of extreme light output from larger form factor fixtures in an ultra compact LED tape light strip. Extremely close diode spacing virtually eliminates any LED dotting or reflections providing a seamless line of light making for a perfect solution for general ambient lighting applications.

  • One of the brightest lumen output per foot tape light available
  • Lumen output ranging from 1030Lm to 1163Lm per foot
  • Available in 2700K, 3000K, 3500K, and 4000K
  • 80+ color rendering index
  • Cuttable every 1.4” with 13.1ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life / 5-year limited warranty


        13.1ft Reels (IP54) Include: Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD


        Spec Sheet

        Spec Sheet

        Installation Instructions



        Info

        Dimensions
        Weight 1.2 LBs
        Length 156.10"
        Width 0.39" (10mm)
        Light Source
        Delivered Lumens 1030-1160
        Dimmable TRIAC / ELV (5 - 100%)
        Expected Life Span (Hours) 50,000 Hours
        Light Source LED
        Wattage 7W/FT
        Mounting/Installation
        Interior/Exterior Interior
        Location Rating IP54 - Damp Location
        Cuttable Every 1.40"
        Certifications cETLus Listed - Dry/Damp Location
        Photometrics
        Color Rendering Index 90+
        Kelvin Temperature 27K/30K/35K/40K



        Recommended: In commercial applications, solder all connection points. ALWAYS mount via an aluminum extrusion to allow proper dissipation of heat

        Additional Info
        PART NUMBER CCT CRI WATTAGE LUMENS MAX RUN IP RATING
        VTL-UWW-13 2700K 80+ 7W/ft 1030Lm/ft 13.1ft IP54 - Damp
        VTL-WW-13 3000K 80+ 7W/ft 1090Lm/ft 13.1ft IP54 - Damp
        VTL-NW-13 3500K 80+ 7W/ft 1140Lm/ft 13.1ft IP54 - Damp
        VTL-WH-13 4000K 80+ 7W/ft 1160Lm/ft 13.1ft IP54 - Damp
        Accessories
        TL-CONKIT 6’ Trulink 4-in-1 Connection Kit
        TL-BLKS Trulink 4-in-1 Connector Block (QTY 10)
        TL-2PWR-HD 6’ HD Power Feed (IP54)
        TL-2JUMP6-HD 6” HD Linking Cable
        TL-2JUMP24-HD 24” HD Linking Cable
        TL-2SPL-HD HD Tape to Tape Splice Connector
        TL-2SPL-L-HD 90° “L” HD Tape to Tape Splice Connector (IP54)
        WIRE-15-2PIN 15ft (20/2) Wire Spool
        WIRE-CMP-100-3PIN 100ft (16/3) In-wall Rated Wire Spool
        INLINE-SC-CTRL Simple Select In-line Controller (Single Color)
        LVSB-2PIN In-Line Splice Terminal Block
        RCWY-PVC-1M 1m Plastic Wire Cover Raceway (White)
