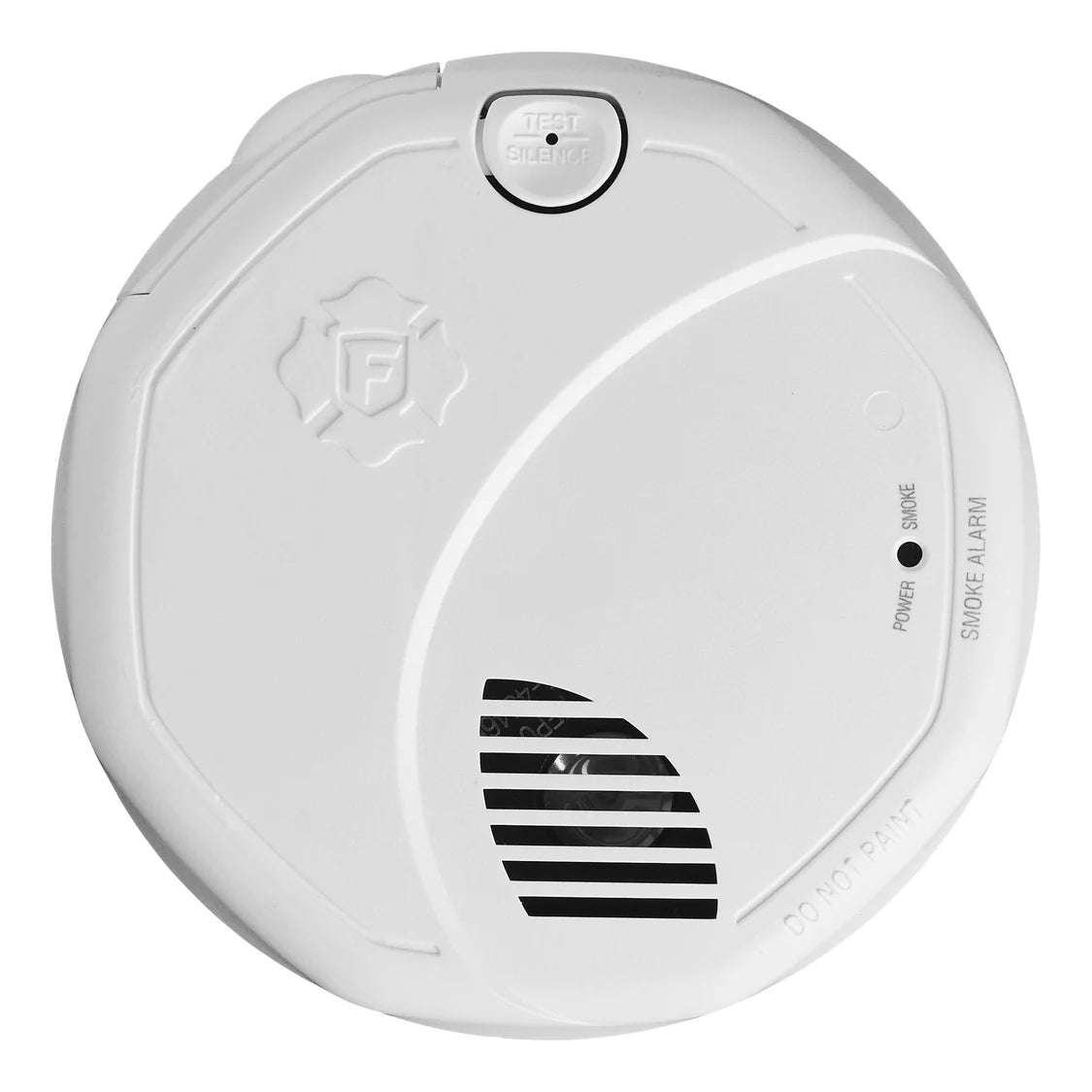

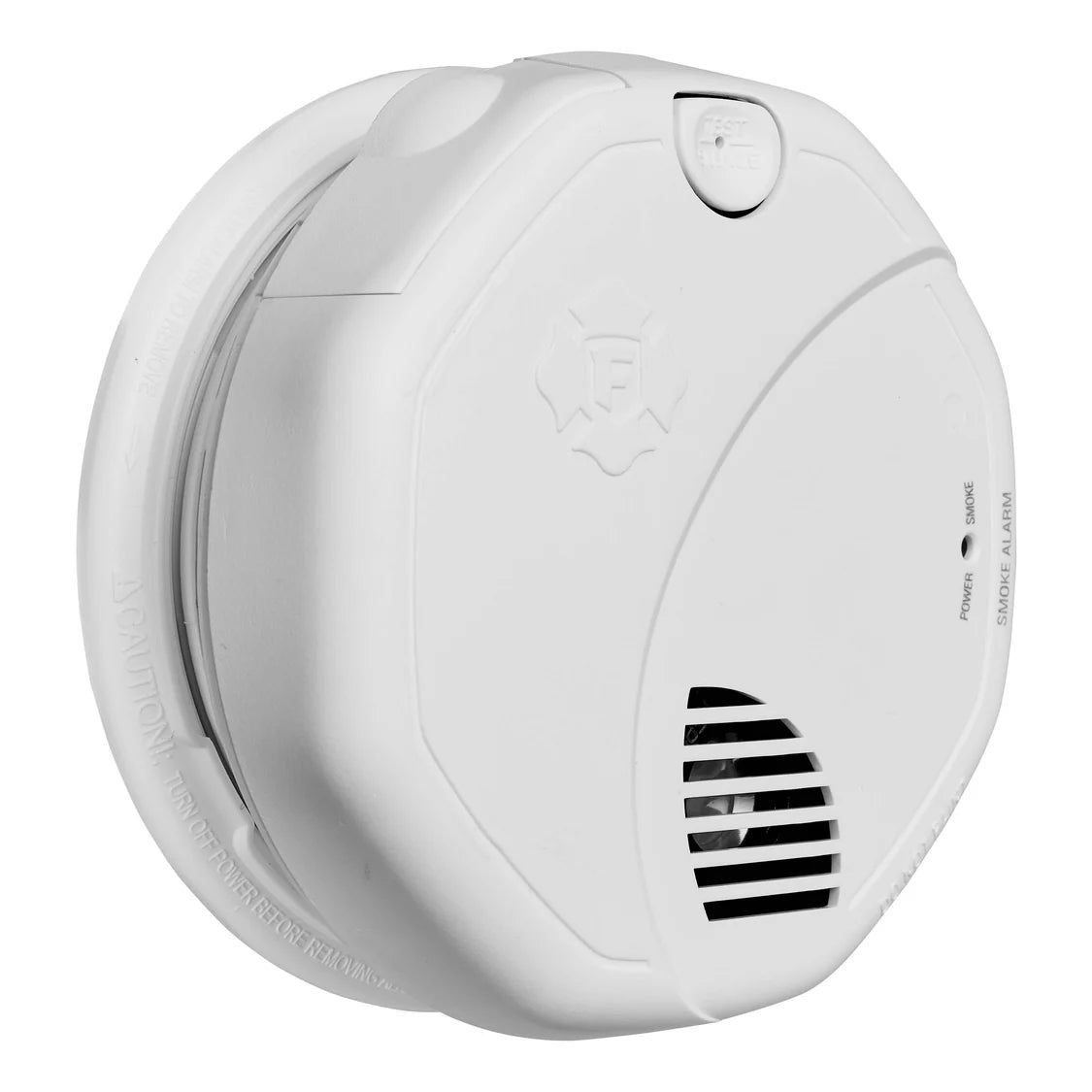

BRK SM500V Interconnect Battery-Operated Smoke Alarm with Voice Alerts
BRK SM500V Interconnect Battery-Operated Smoke Alarm with Voice Alerts
Couldn't load pickup availability
Wireless Interconnect Battery Smoke Alarm w Voice
The BRK SM500V is a wireless interconnect smoke alarm designed for comprehensive home and commercial safety. This battery-operated unit features photoelectric smoke detection with voice alerts that identify both the danger type and location—for example, "Warning, Evacuate, Smoke in Basement." When one alarm detects smoke, all compatible units sound simultaneously via mesh network technology, eliminating the need for rewiring. The 85dB horn is engineered with lower, varying frequencies to assist those with age-related hearing loss. Powered by two replaceable AA batteries, it includes tamper-resistant locking pins, a test/silence button, and dual silence modes for low battery and nuisance alerts. The fully screened sensing chamber resists insect intrusion. Supports up to 18 interconnected units (maximum 12 smoke alarms) and meets UL217, CSFM, NFPA 72, NFPA 101, and ICC standards. Wall or ceiling mountable with included hardware.
- Early Warning Wireless Interconnect. When one alarm sounds, all compatible* alarms sound without having to rewire the structure.
- Voice Warning with Location, voice tells what the danger is and its location.

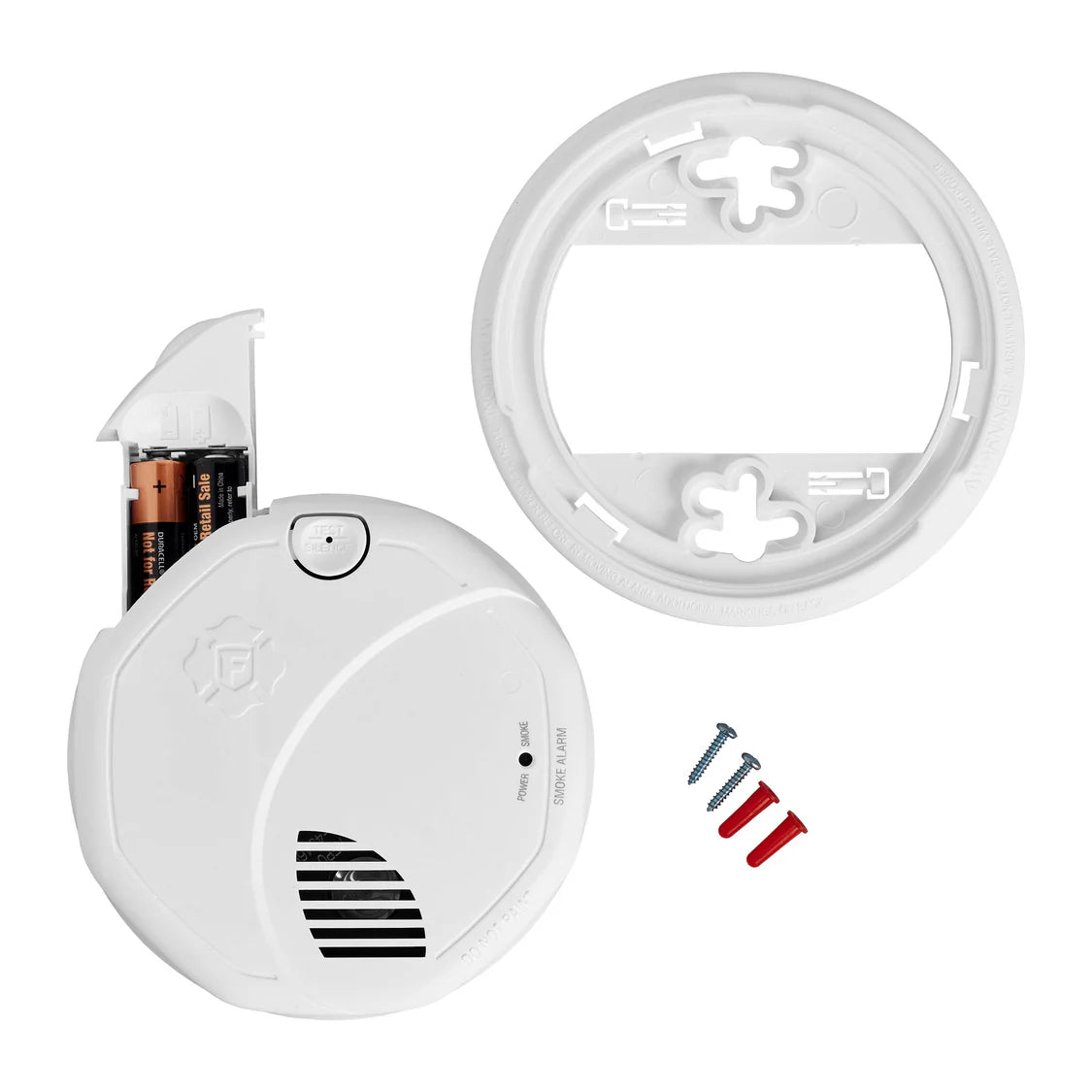

- Replaceable AA batteries included.
- Test/Silence Button, temporarily silence or test the alarm with one-touch, easy access button.
Spec Sheet
Spec Sheet
User Manual
Info
| Alarm Dimensions | 5.00”dia. x 2.00”H |
| Weight | 8.3 oz |
| Operating Voltage | 3V (Two 1.5V AA) Battery Powered |
| Temp. Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 95% relative humidity (RH) |
| Audio Alarm | 85dB at 10 feet |
| Test/Silence | Electronically simulates smoke condition, causing the unit to alarm. Press and hold test/silence button |
| RF Linking | Automatic with 65,000 security codes |
| Alarm Reset | Automatic when smoke clears |
| Interconnections | Up to 18 units, RF or hardwired (needs SA520B Bridge Unit), with smoke, carbon monoxide, heat alarms and relays. Maximum 12 smoke alarms. |
