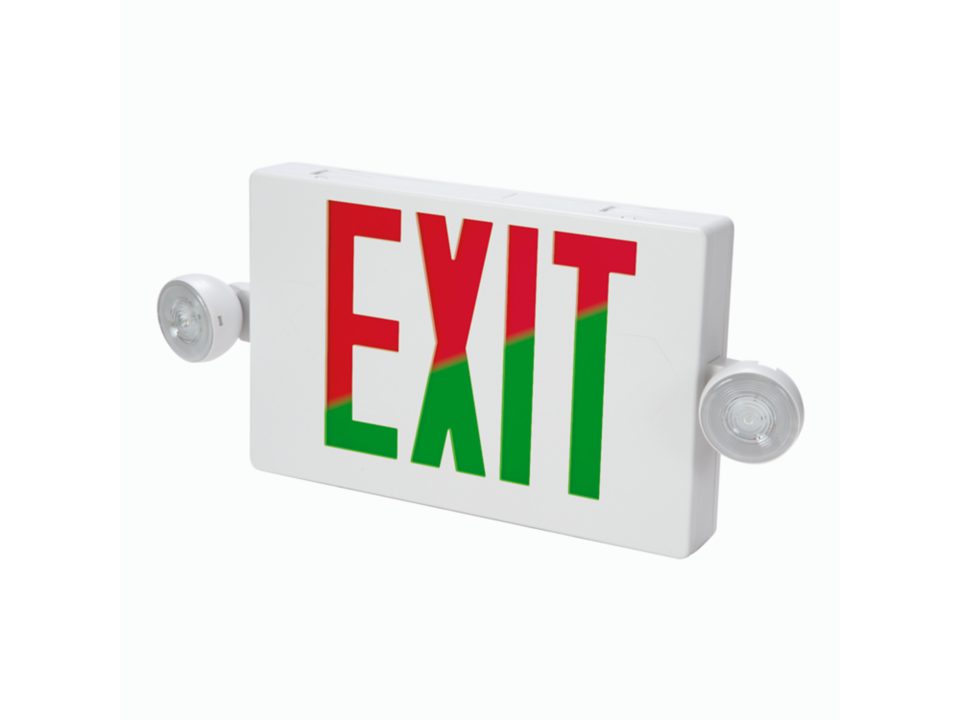

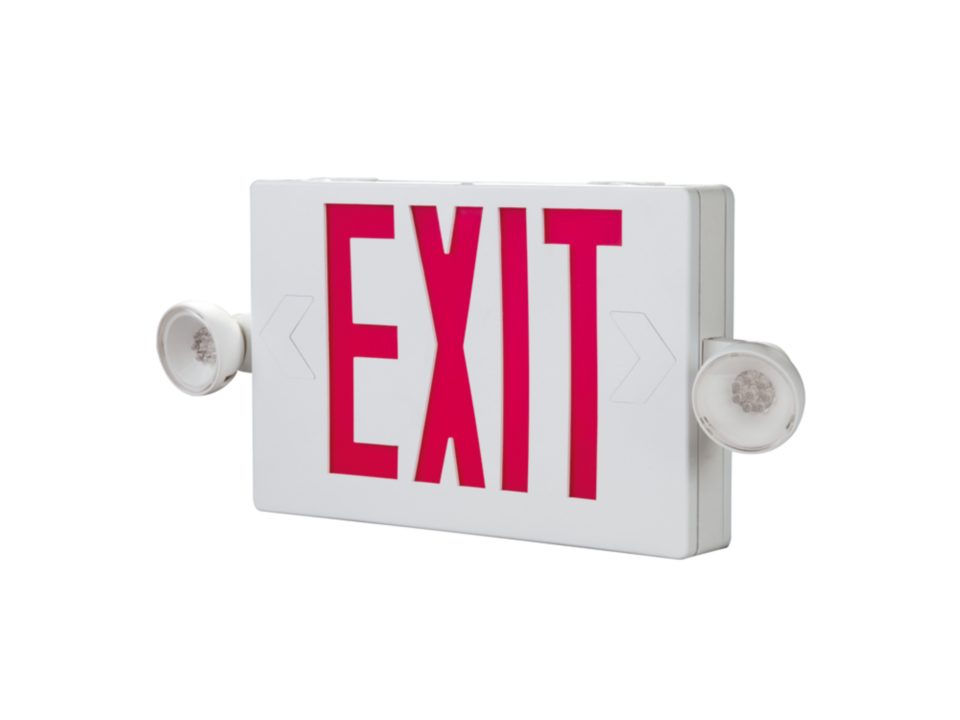

Cooper Lighting APC7R LED Emergency Exit Combo Sign

Cooper Lighting APC7R LED Emergency Exit Combo Sign

$79.99
$85.99 $79.99
Sale Sold out
Shipping calculated at checkout.

APC7R Emergency Exit Sign

The Cooper Lighting APC7R LED Emergency Exit Combo Sign is the ideal solution for indoor exit and emergency requirements. UL924 compliant, this light boasts an adjustable LED head, up to 17 feet of emergency egress coverage, and a maintenance-free nickel cadmium battery. With LED source available in red, and field configurable for single or double face with chevrons, you have the ultimate in control. A durable polycarbonate housing is universally mountable and comes in a white or black finish. For superior lighting, choose the H series to power two additional 3.6 volt emergency heads from the APWR series.



  • 3.6V, .78W DC long lasting LED heads
  • Dual voltage input 120/277 VAC, 60Hz
  • Sealed nickel cadmium battery
  • Universal J-box mounting pattern
  • Operating temperature range 10°C to 40°C
  • Low voltage disconnect
  • Line-Latched
  • Brownout circuit
Dimensions See Spec Sheet
Length (in.) 16-9/16"
Width (in.) 2-5/16"
Height (in.) 7.50"

    Spec Sheets

    Spec Sheet

    Installation Instructions

    Info
     Head/Lamp Data
    AC LED: Long life LED lamps provide uniform diffused illumination
    DC: LED DC lamps (Brighter in emergency mode)
    Heads DC: 3.6V, .78W Long Life LED Heads Light Output Equivalent to 5.4W Incandescent
    Electrical
    Dual Voltage Input 120/277VAC, 60Hz
    Line-latching
    Solid-State Voltage Limited Charger
    Solid-State Switching
    Brownout Protection
    Low Voltage Disconnect
    Overload/Short Circuit Protection
    Dual Voltage Input 120/277VAC 60Hz
    Test Switch / Power Indicator Light
    High Power Combo available capable of running two additional LED remote heads
    3.6V, .78W D
    Housing Construction
    All components are injection molded, color stable, high impact polycarbonate material
    Reinforcing ribs throughout to provide maximum strength
    Molded-in wireways facilitate internal wire routing and connections
    Available in a white or black finish
    Components are of snap-fit construction to facilitate under 5-minute installation
    Reinforcing ribs throughout to provide maximum strength connections
    All components including battery and electronics are located inside the exit housing
    Snap-out or snap-in chevron directional indicators have full 3/4" stroke
    Universal exits can be field configured as single face or double face
    Snap-fit canopy with mounting screws included with all exits
    Exit can be ceiling, wall, or end mounted
    Universal J-box mounting pattern
    Operating temperature range 10 °C to 40 °C




    Additional Info
    Battery
    Sealed nickel cadmium
    Maintenance-free, long-life
    Full recharge time: 24 hrs (max.)

     Code Compliance
     UL 924 Listed
    UL Damp Location Listed
    Life Safety NFPA 101
    NEC/OSHA
    Most State and Local Codes
    Operating temperature range 10 °C to 40 °C
    California Energy Code compliant
    Warranty
    Five-year warrant
    Seven-year prorated battery warranty
