DiodeLED SWITCHEX® Driver and Dimmer Switch

DiodeLED SWITCHEX® Driver and Dimmer Switch

Regular price $175.99
Regular price Sale price $175.99
Sale Sold out
Shipping calculated at checkout.

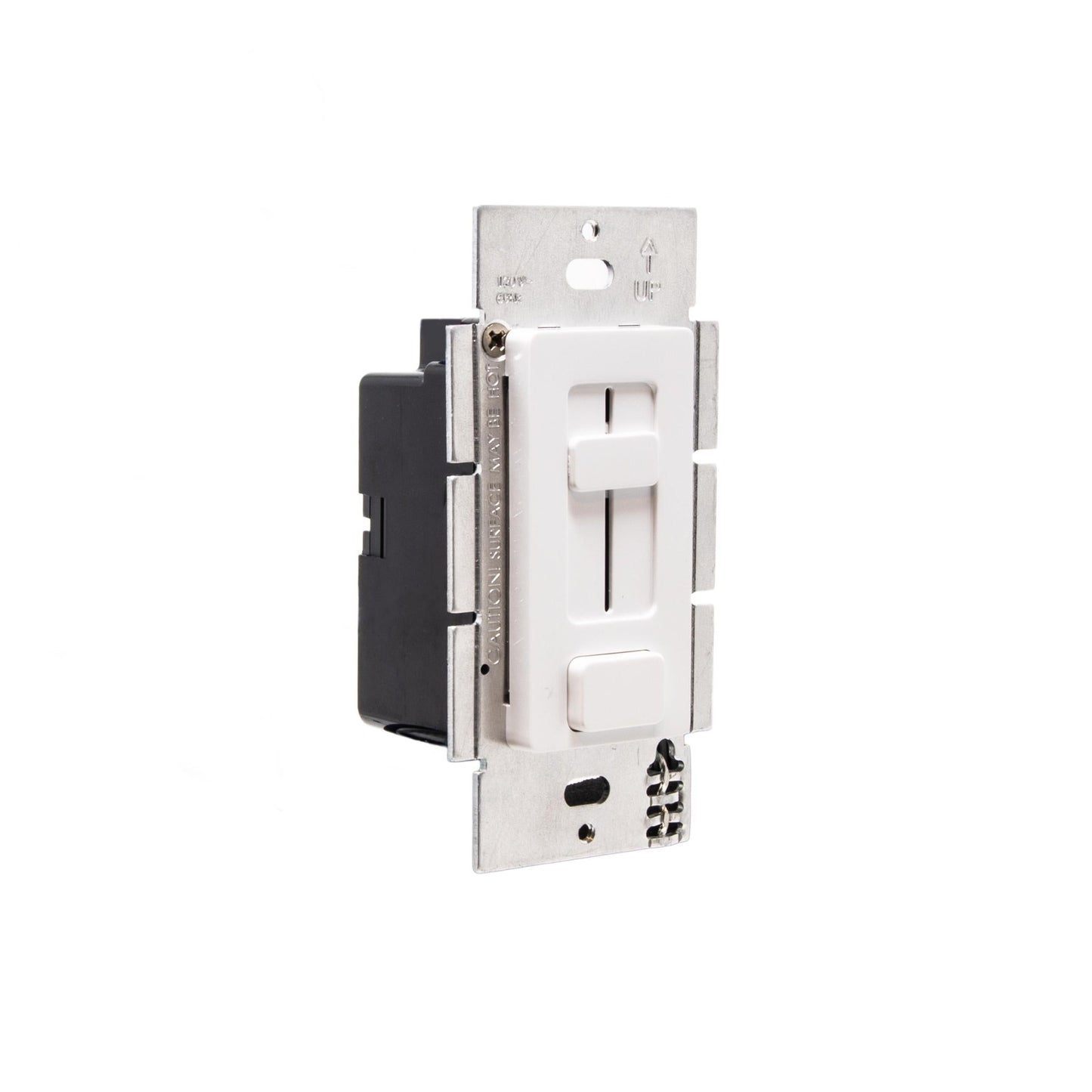

SWITCHEX® Driver and Dimmer Switch

SWITCHEX simplifies LED array lighting systems by combining an inwall LED dimmer switch and power supply into a single integrated unit. SWITCHEX mounts in a standard in-wall switch box, accepts 120V AC and converts to low voltage DC. SWITCHEX is compatible with most solid color 12V and 24VDC tape lights and fixtures.

  • First LED Driver + In-Wall Dimmer Switch in one unit.
  • Simplifies LED installation by eliminating compatibility issues between driver and dimmer. • Fits in a standard recessed electrical box.
  • 100% - 5% smooth dimming.
  • No minimum load.
  • Single Pole preset dimmer with on/off push switch.
  • Adjustable voltage output dial to address voltage drop.
  • Includes voltage barrier partition to install high and low voltage circuit in same switch box.
  • No derating required when ganging units.
  • Power failure memory: If power is interrupted, SWITCHEX will return to setting prior to interruption.

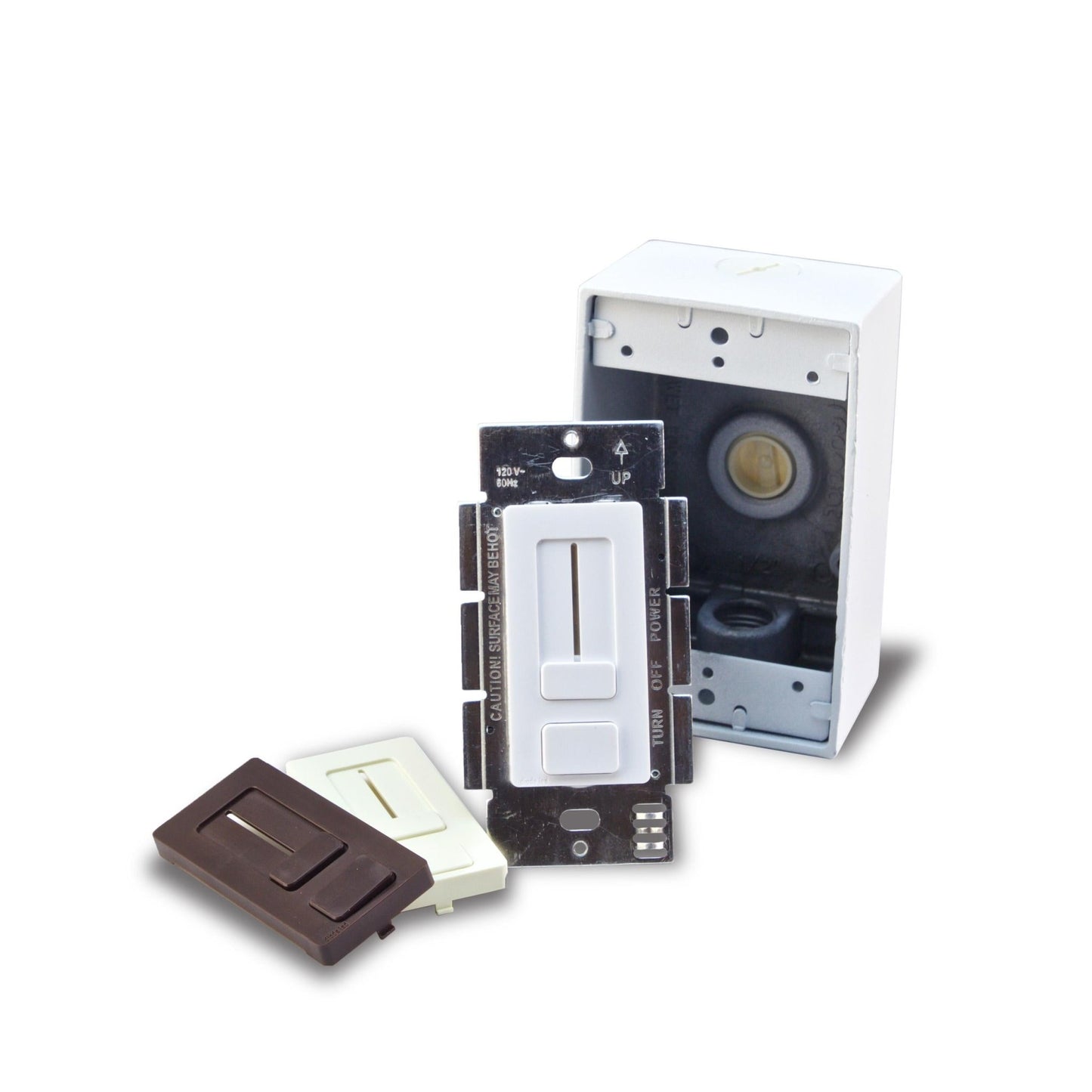

  • 3x included face plates: Glossy White, Glossy Light Almond, and Glossy Dark Brown (trim plates not included).
Spec Sheet

Specification Sheet

Installation Guide

Input Voltage 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz)
Power Factor >0.9 @ 120VAC 60Hz max load
Total Harmonic Distortion (THD) ≤20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
Stand-by Power Tested : ≤0.5W
Efficiency ≥91% @ 120VAC max load
Input Current <1.0A @ 120VAC max load
In-Rush Current  Meets NEMA-410 requirement at any nominal input full sine wave voltage and maximum load at 25°C
Leakage Current <500µA @ 120VAC
Surge/Transient Tested to meet transients defined in IEC 6100-4-4, level 3 & IEC 6100-4-5, level 3
Dimming Output voltage is adjustable via sliding level
Voltage Adjustment Dial Increases output +1V to compensate for voltage drop from control to luminaire
Startup Time The main supply output voltages remain within the regulation limit of +/- 3%.
Protections Short circuit, thermal runway, and over voltage
Output Ripple Current ≤20% of the rated output current @ 120VAC max load
Environmental Requirements
 Indoor use only
Ambient Operating Temperature: 0°C to 40°C
Humidity: 8 ~ 90% relative humidity, non-condensing.
Additional Info
cULus Listed (US & Canada) Low Voltage Lighting System #E469769.
 FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
RoHS Certified
 CE Certified
Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are install in accordance with 725.41 Class 1 Circuits.
